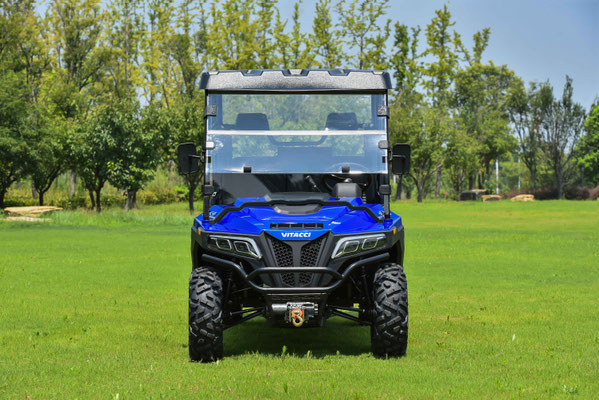

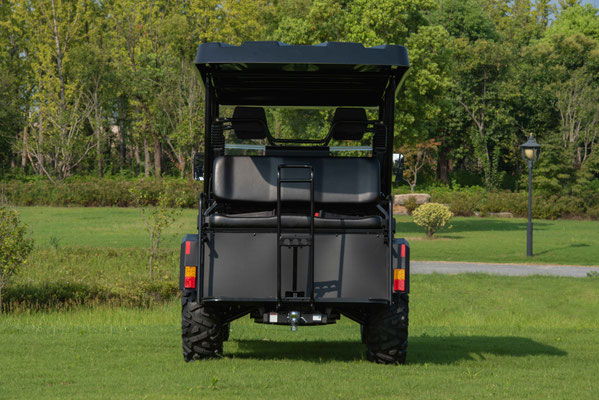

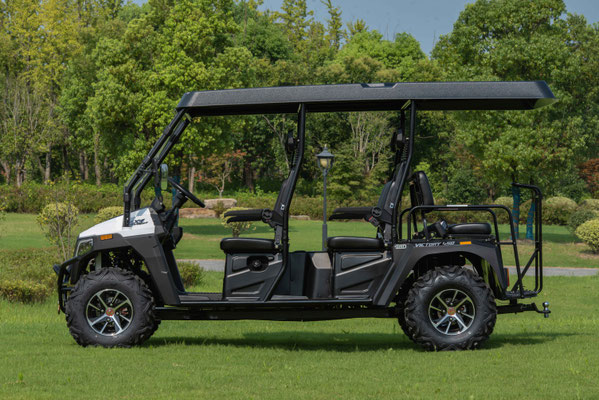

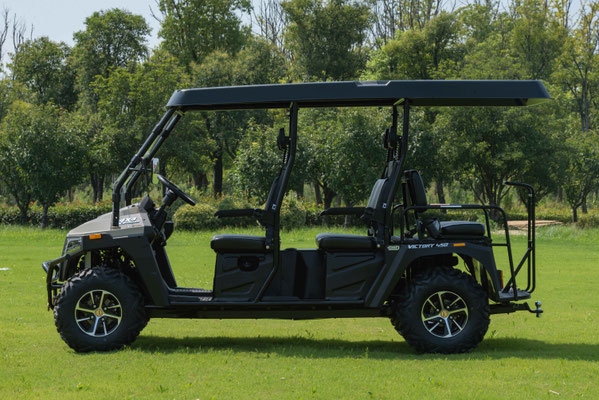

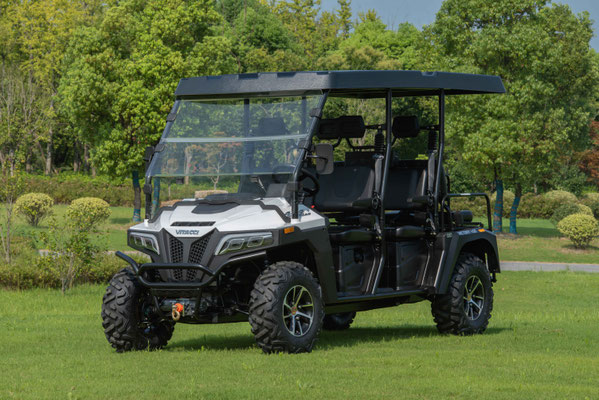

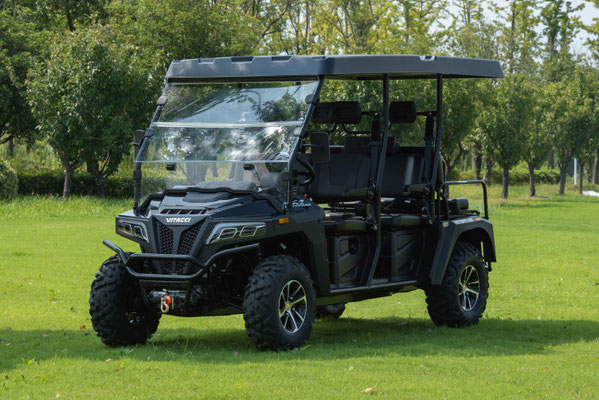

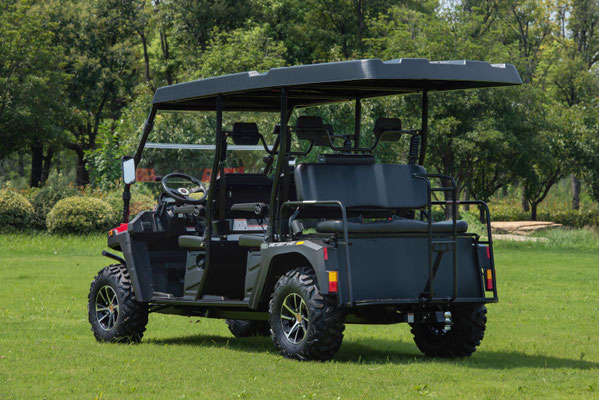

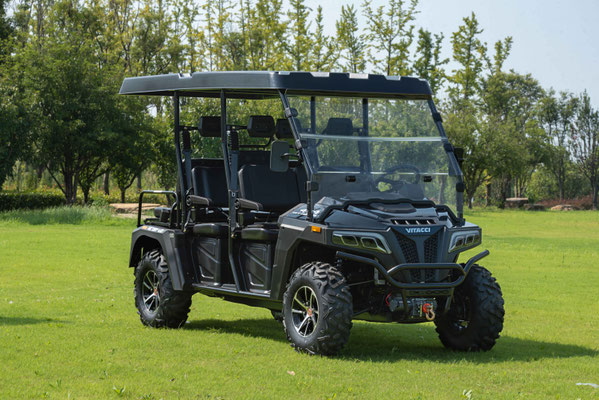

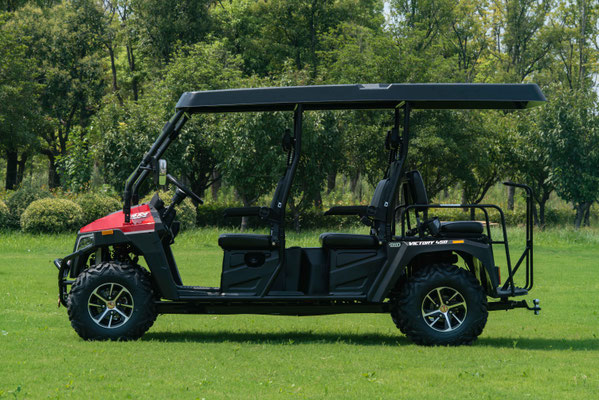

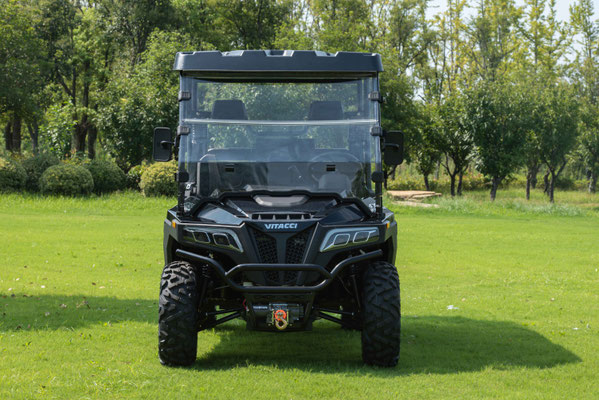

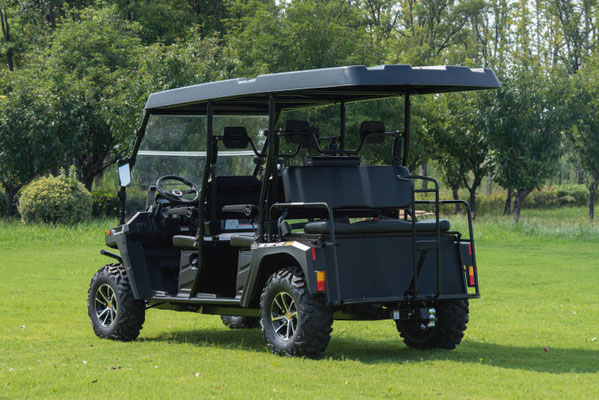

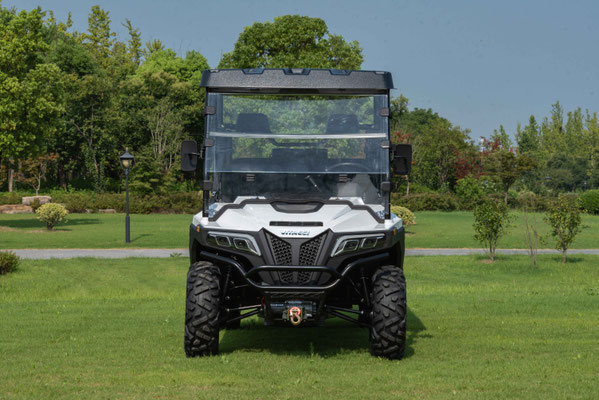

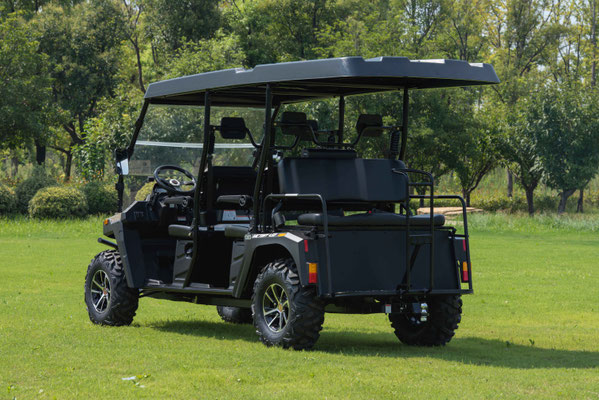

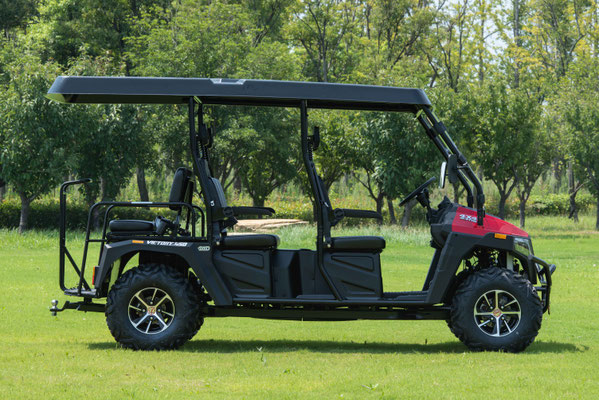

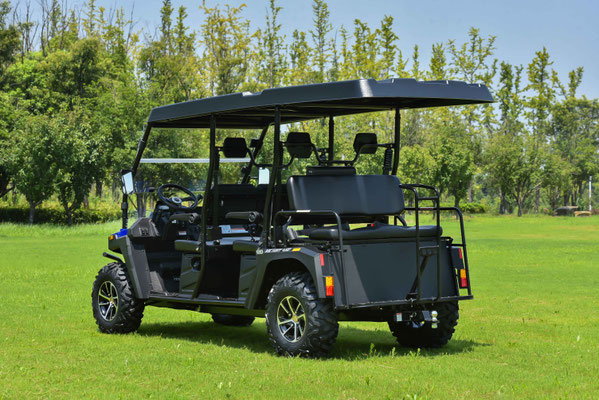

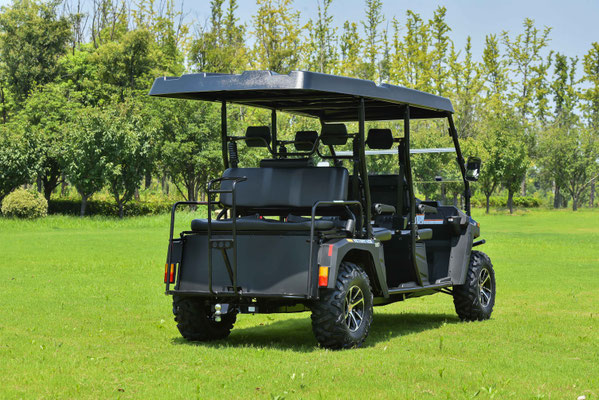

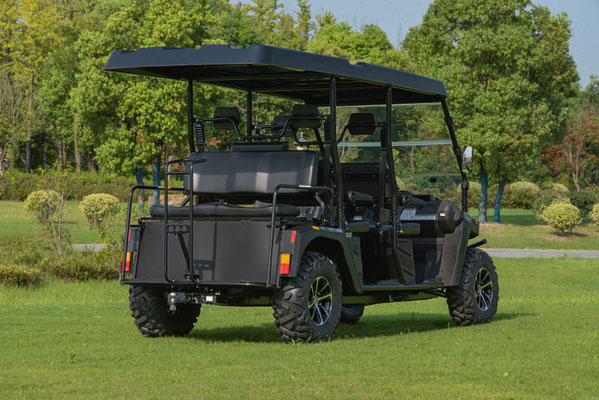

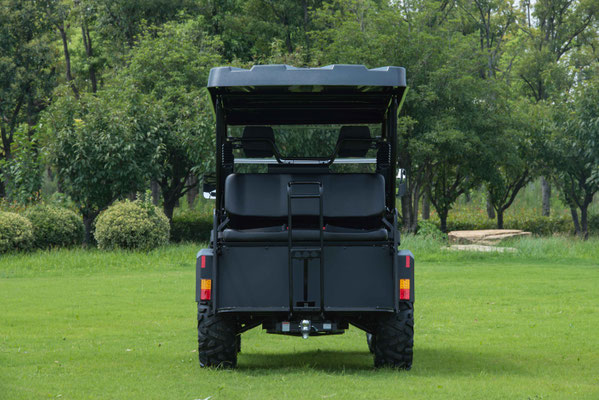

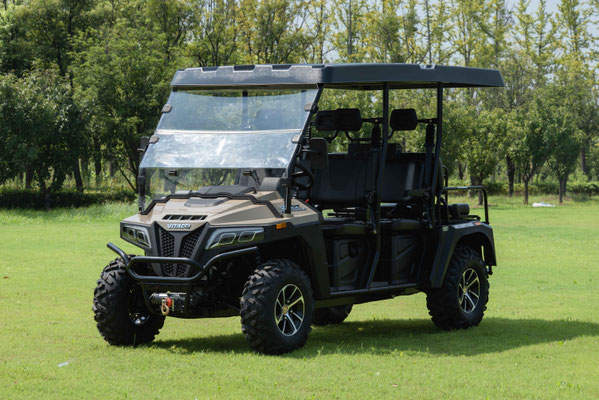

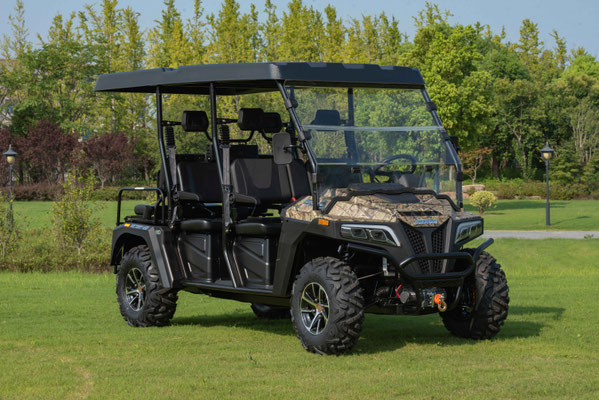

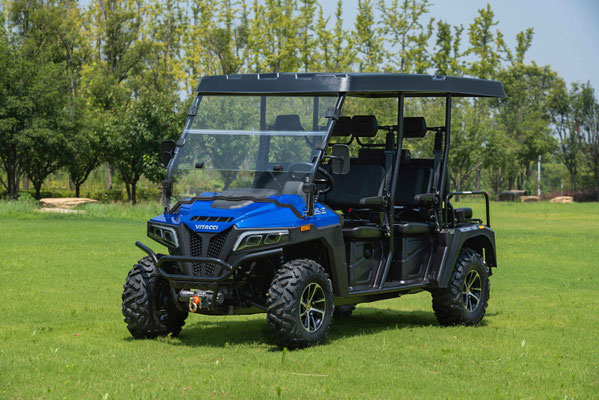

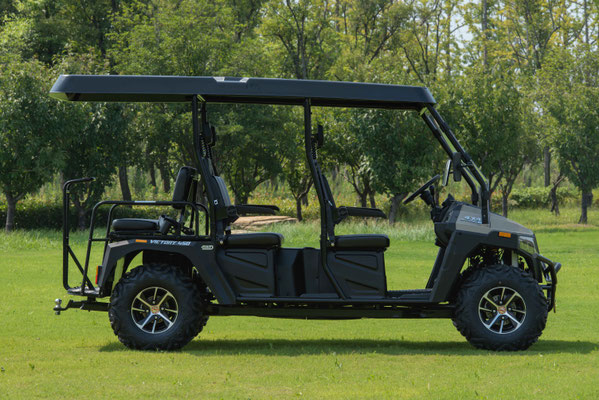

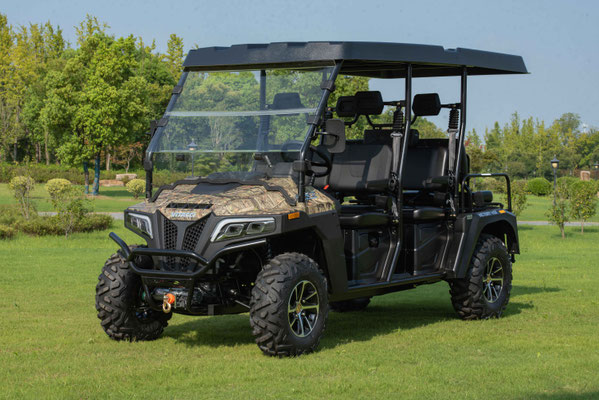

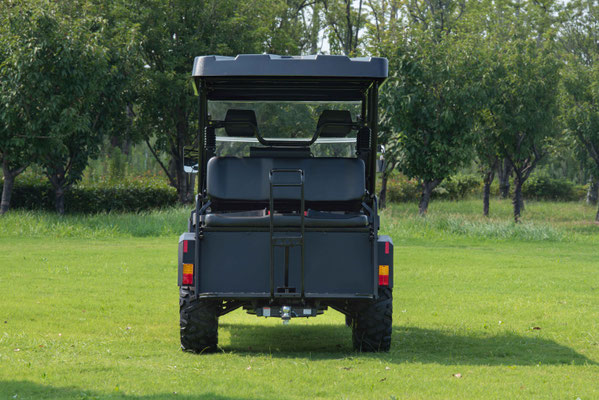

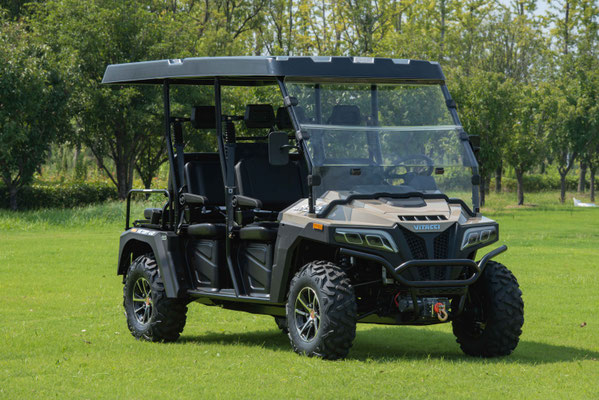

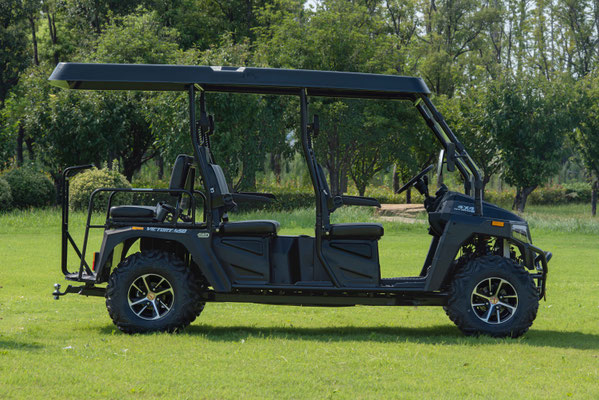

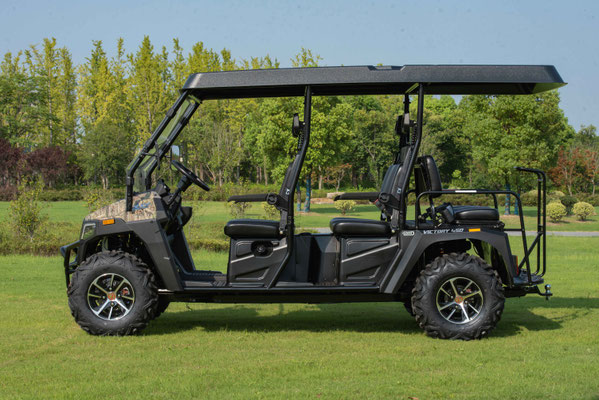

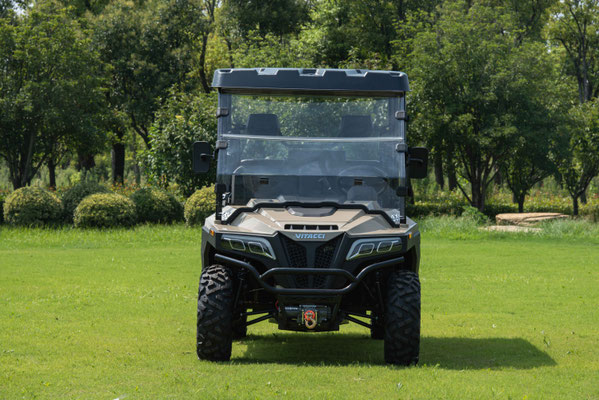

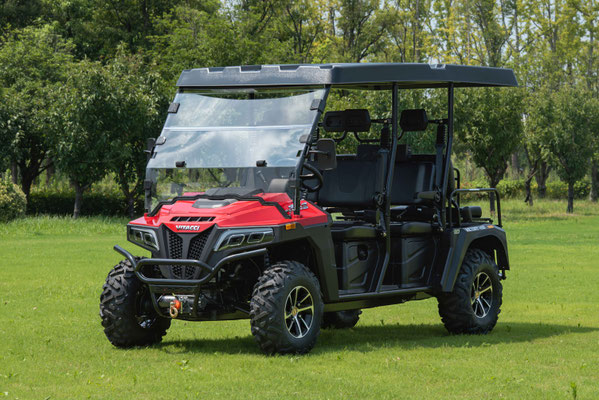

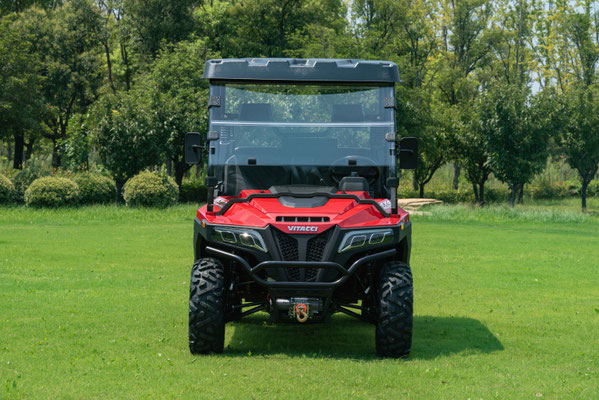

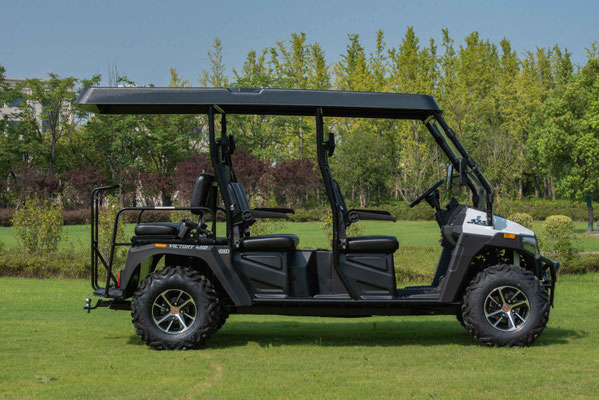

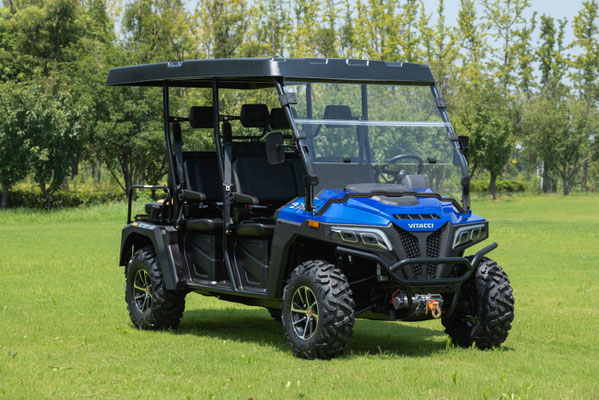

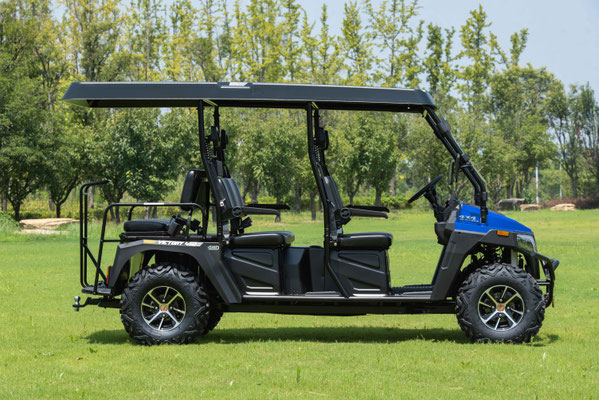

VICTORY 450 MAX DLX - GOLF CART (6 SEATS)

                                        Victory 450 Max-Deluxe Specification (Golf cart )



                 Vehicle Class:               Age 18+ class

         Vehicle Specification    Length × Width ×Height 3724×1440×2002mm
Wheelbase 2495mm
Minimum Ground Clearance 230mm
Seat High 830mm
Weight With Full Equipments 620kg
Rear Seat Loading Capacity 150kg (2 Person)
Single Driver Top Speed 65km/h
Front Brake Type Hydraulic Disc Brake
Rear Brake Type Hydraulic Disc Brake
Parking Type Hand Brake
Drive Mode 4WD, Front and Rear Differential (Rear with Lock), Engine Balance Shaft
Control Way Steering Wheel
Front Suspension Type McPherson Independent Suspension
Rear Suspension Type Dual A-ARM Independent Suspension
Tire Type Front AT25×8-12 / Rear AT25×10-12
Multifunction Rear Seat Folding Golf Seat / Cargo Tray
         Engine Specification    Engine Type Single cylinder, four stroke, water cool, overhead camshaft
Cylinder Volume 391ml
Compression Ratio 10:01
Fuel System Electronic Fuel Injection
Ignition Way Electric Start
Transmission Way CVT transmission, Belt
Max Power and Crankshaft Speed kW/(RPM) 20kW/ 6500—7000 r/min
Max Torque and Crankshaft Speed  N.m/(RPM) 30N.m/5000 r/min
Lubrication Oil SAE 15W-40



Vehicle Class:  Age 18+ class
