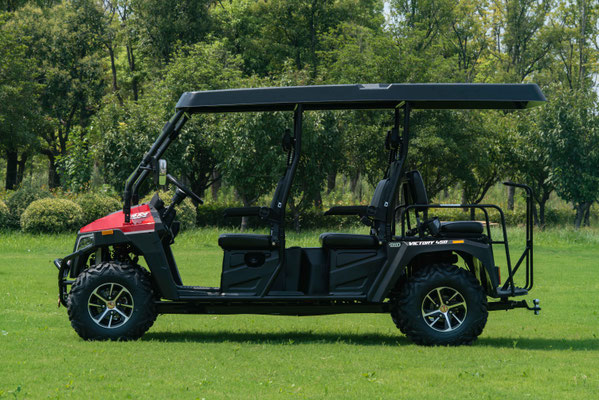

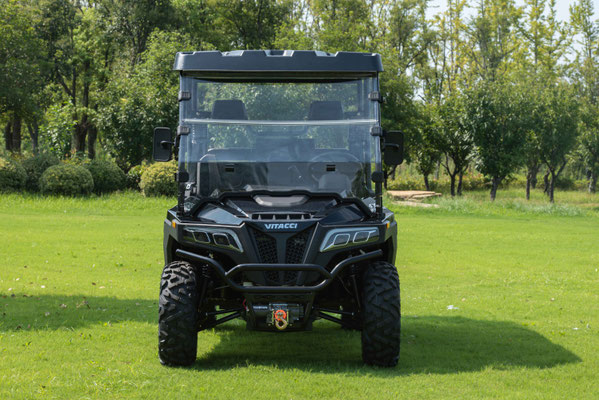

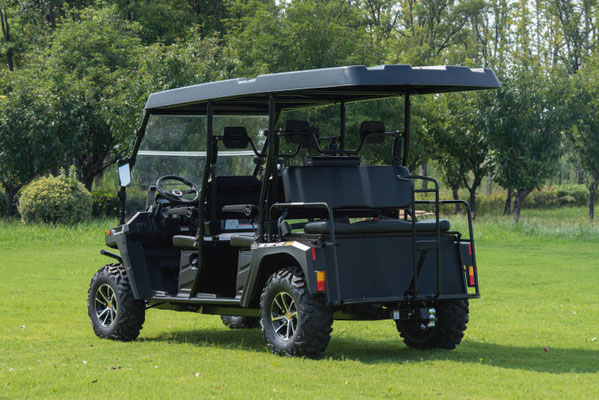

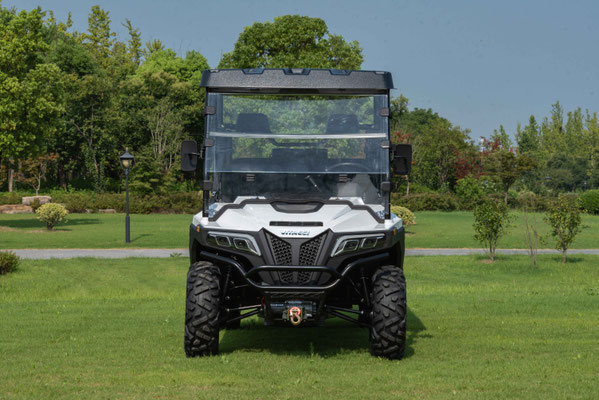

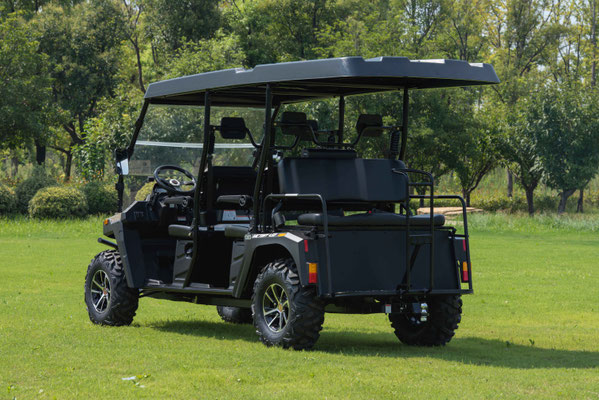

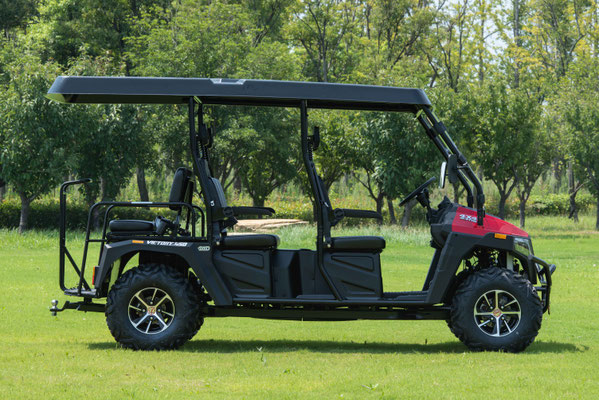

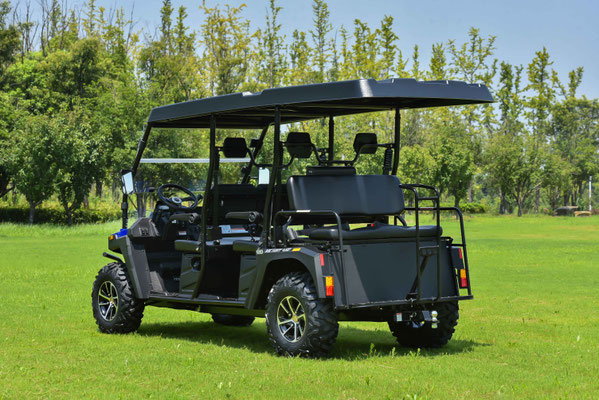

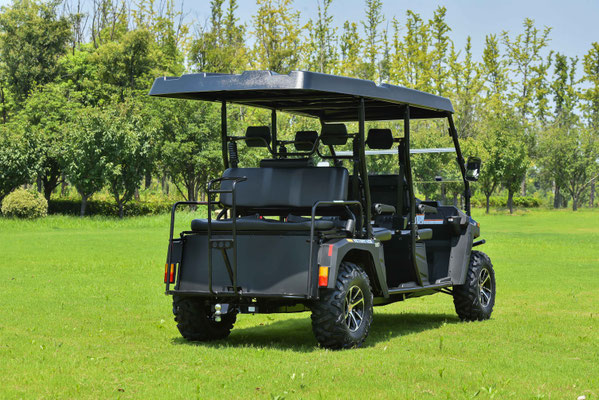

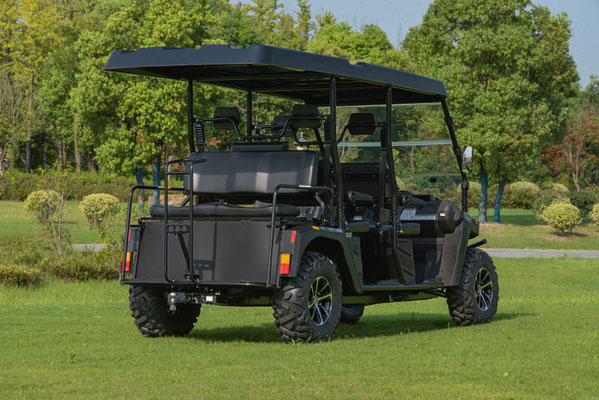

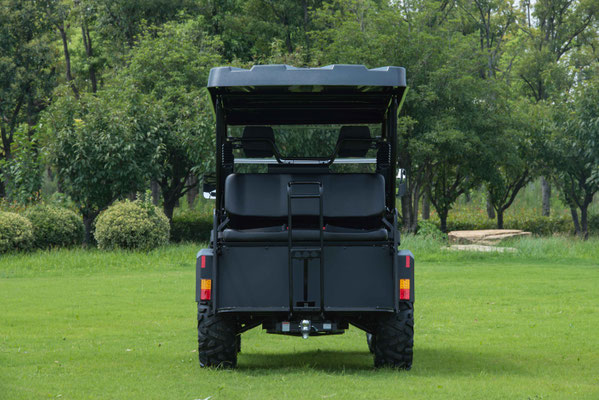

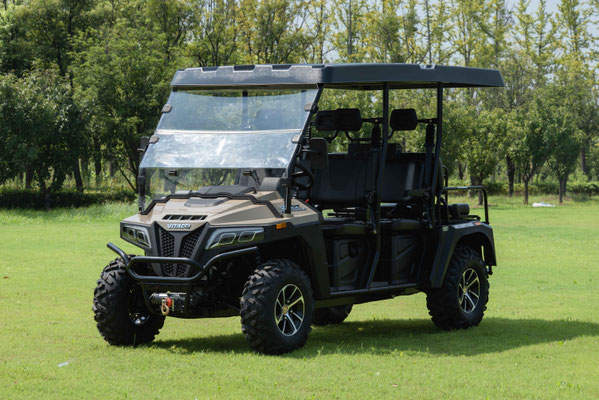

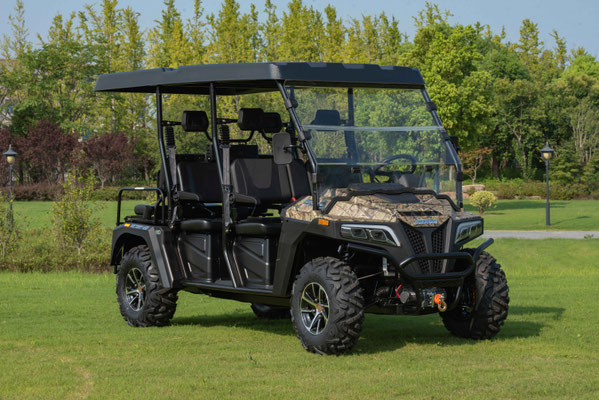

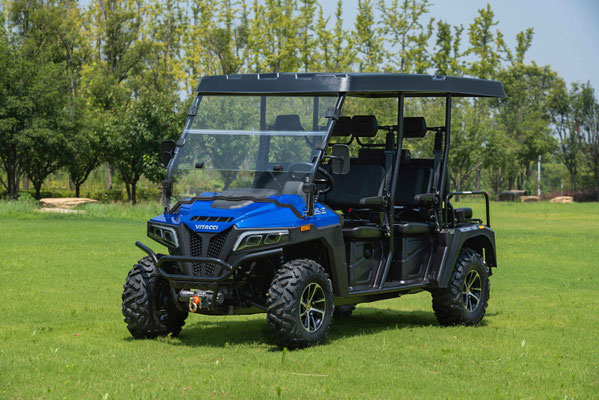

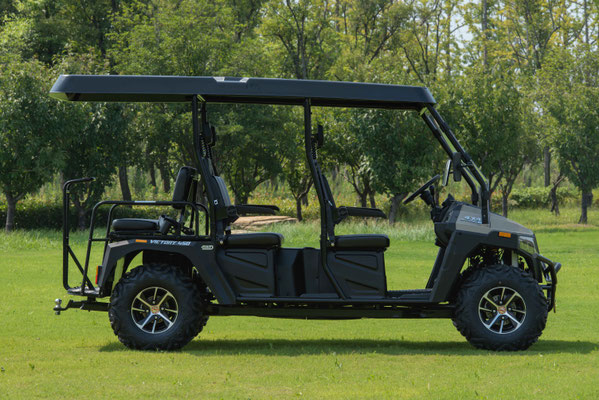

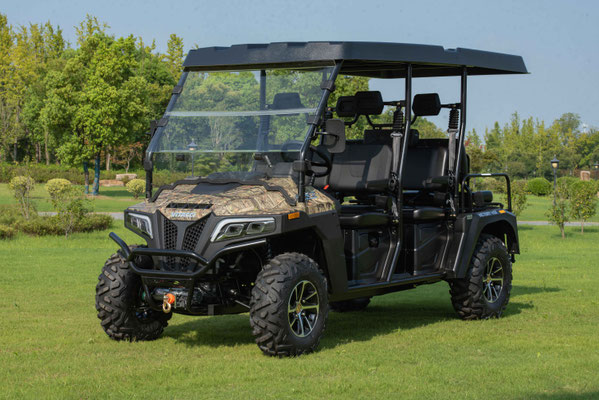

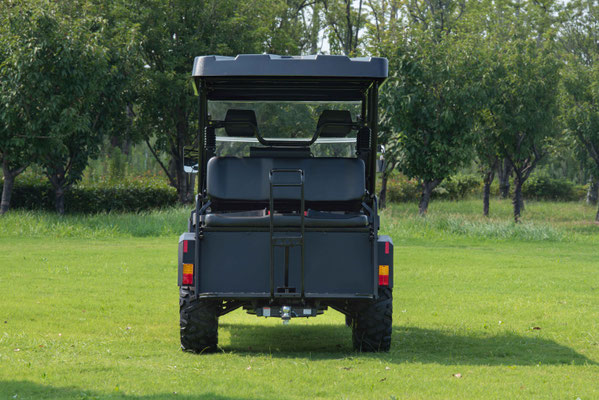

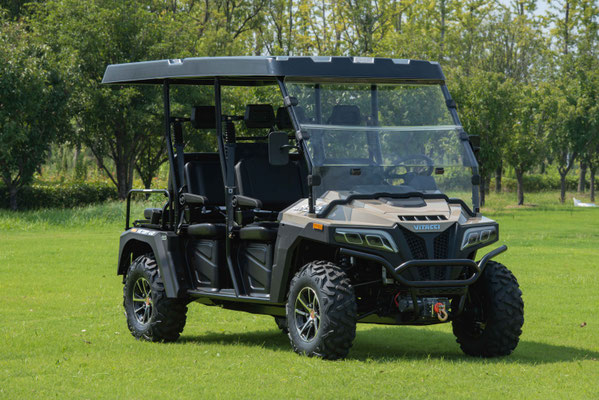

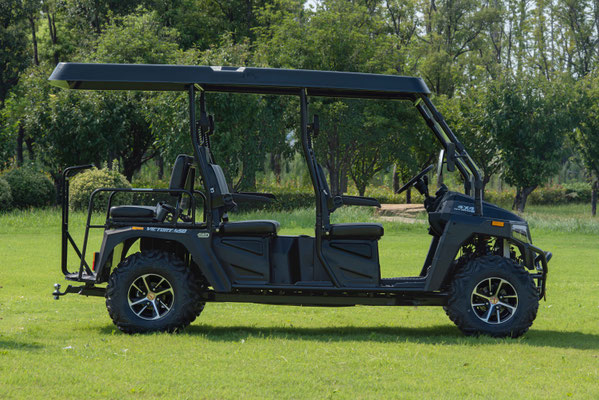

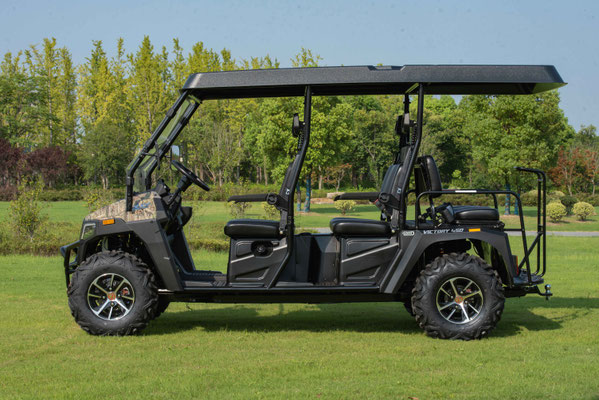

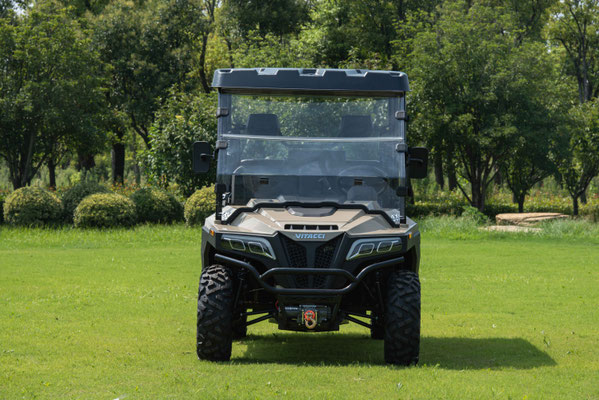

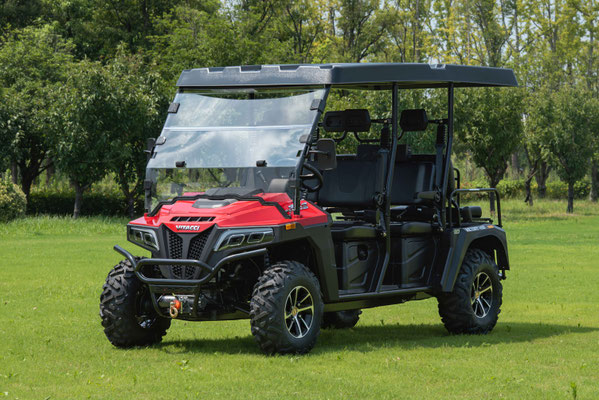

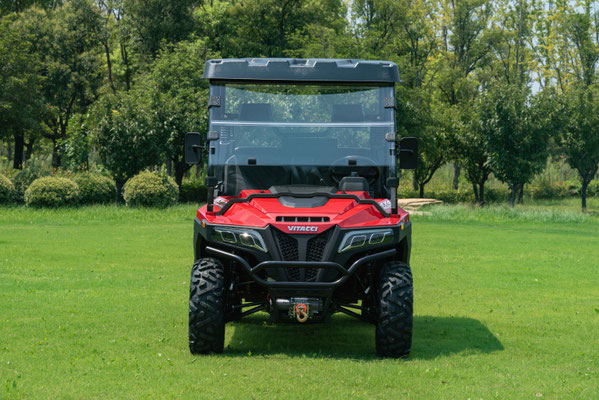

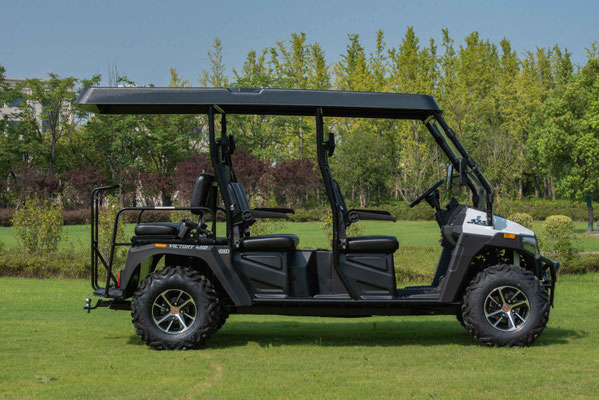

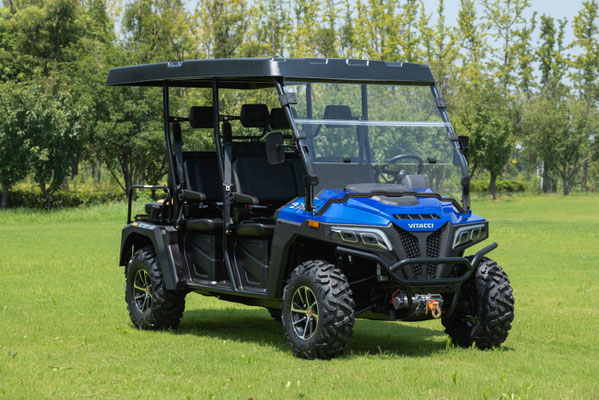

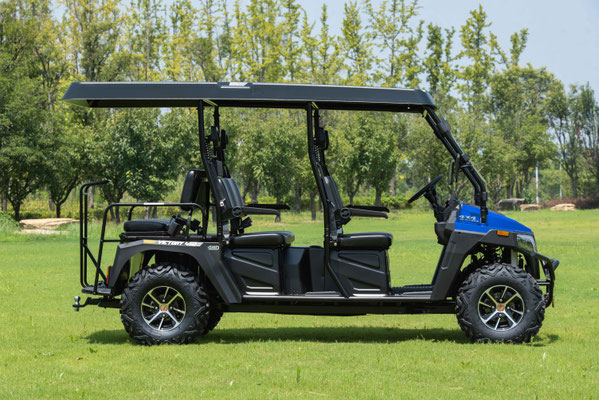

Victory 450
Max-Deluxe Specification (Golf cart )
|
|
Vehicle Specification
|
Length × Width ×Height
|
3724×1440×2002mm
|
|
Wheelbase
|
2495mm
|
|
Minimum Ground Clearance
|
230mm
|
|
Seat High
|
830mm
|
|
Weight With Full Equipments
|
620kg
|
|
Rear Seat Loading Capacity
|
150kg (2 Person)
|
|
Single Driver Top Speed
|
65km/h
|
|
Front Brake Type
|
Hydraulic Disc Brake
|
|
Rear Brake Type
|
Hydraulic Disc Brake
|
|
Parking Type
|
Hand Brake
|
|
Drive Mode
|
4WD, Front and Rear Differential (Rear with Lock), Engine Balance Shaft
|
|
Control Way
|
Steering Wheel
|
|
Front Suspension Type
|
McPherson Independent Suspension
|
|
Rear Suspension Type
|
Dual A-ARM Independent Suspension
|
|
Tire Type
|
Front AT25×8-12 / Rear AT25×10-12
|
|
Multifunction Rear Seat
|
Folding Golf Seat / Cargo Tray
|
|
Engine Specification
|
Engine Type
|
Single cylinder, four stroke, water cool, overhead camshaft
|
|
Cylinder Volume
|
391ml
|
|
Compression Ratio
|
10:01
|
|
Fuel System
|
Electronic Fuel Injection
|
|
Ignition Way
|
Electric Start
|
|
Transmission Way
|
CVT transmission, Belt
|
|
Max Power and Crankshaft Speed kW/(RPM)
|
20kW/ 6500—7000 r/min
|
|
Max Torque and Crankshaft Speed N.m/(RPM)
|
30N.m/5000 r/min
|
|
Lubrication Oil
|
SAE 15W-40
|
