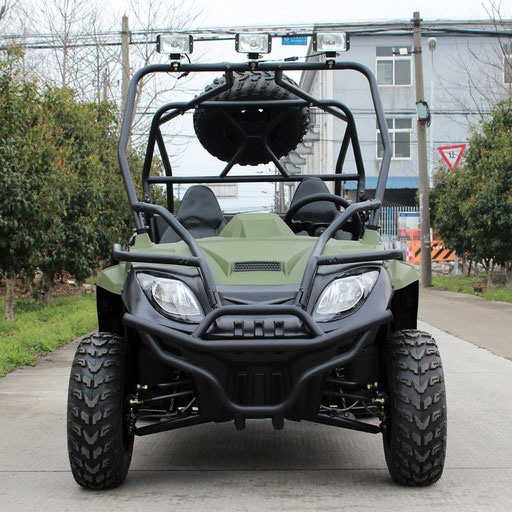

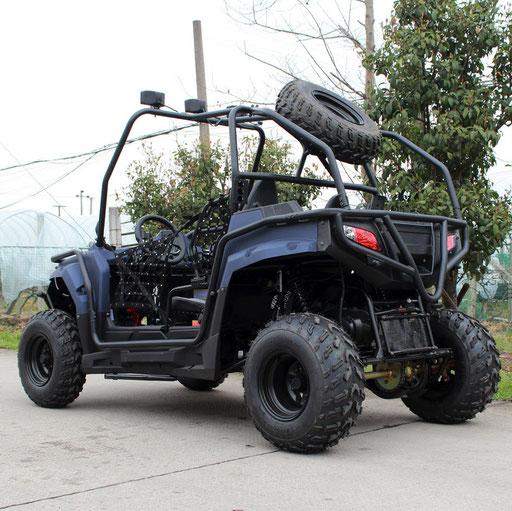

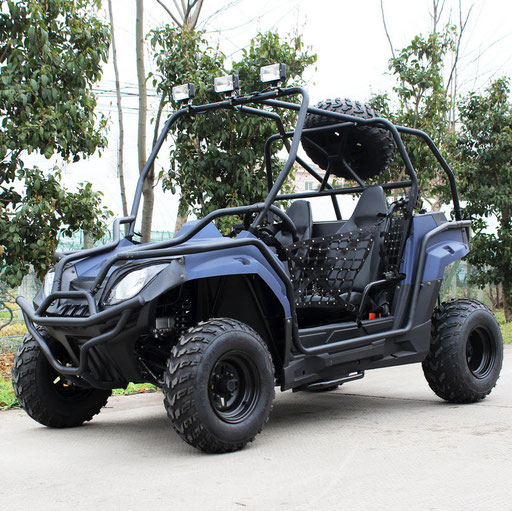

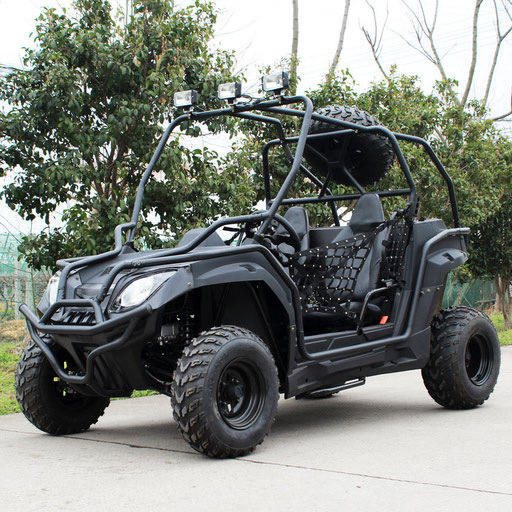

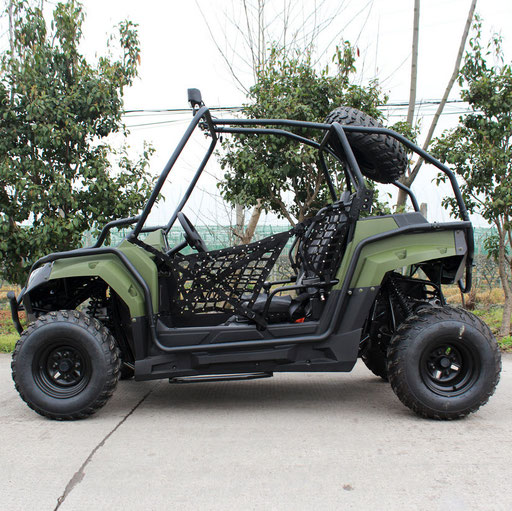

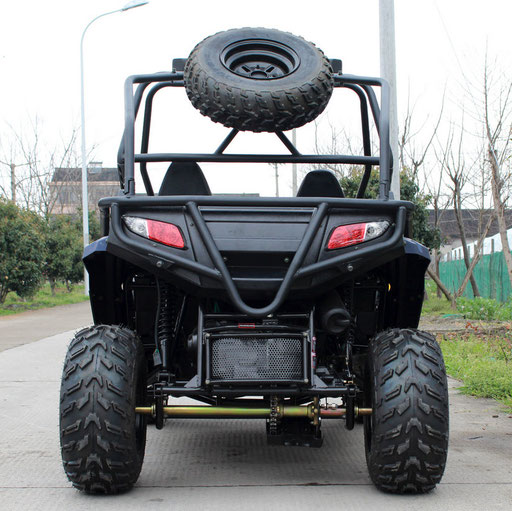

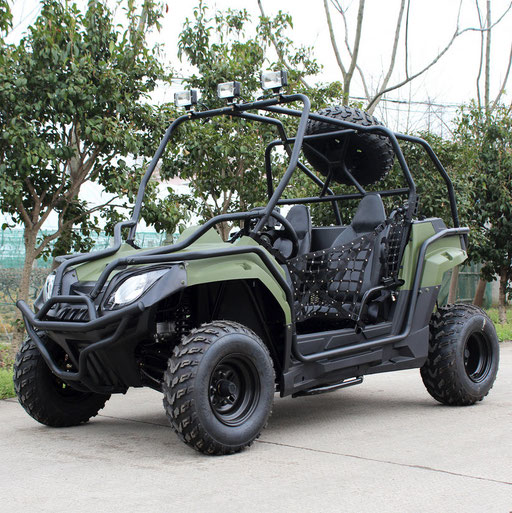

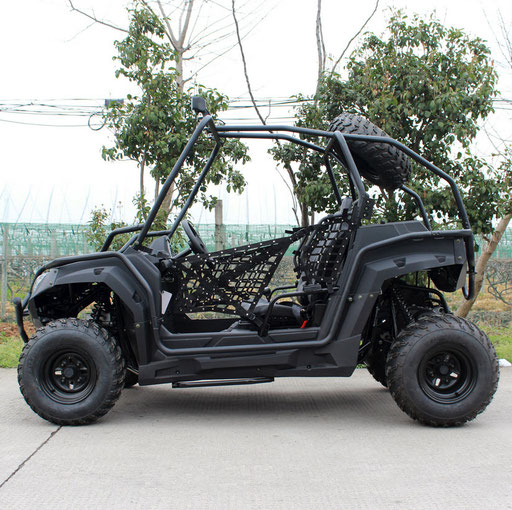

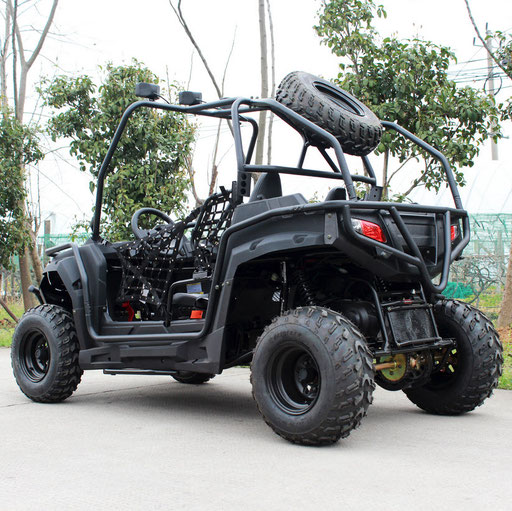

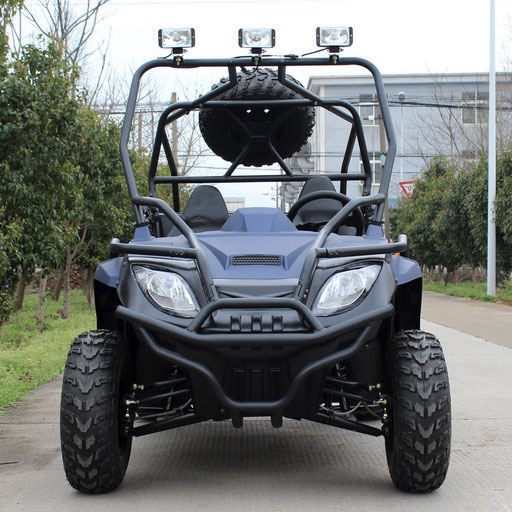

SAFARI DF200GKV-H


Technical specification







  • Engine type: single cylinder, Horizontal type, 4-stroke, air-cooled
  • Displacement(ml): 168.9
  • Max Power(kw/r/min): 8.3/8000
  • Max Torque(N.m/r/min): 11.0/6000
  • Ignition system:  CDI
  • Gear: CVT(F+N+R)
  • Fuel tank capacity(L): 11
  • Economical oil exhaust(L/100km):  5.2
  • Max speed(km/h): 55
  • Transmission: Belt Drive +Chain Drive
  • Brake Type: Disc/Disc Brake
  • Wheelbase(mm): 1870
  • Ground clearance(mm): 150
  • Tires (front / rear): 21*7-10 /22*10-10
  • N. W.(kg): 264    G. W.(kg): 313
  • Product dimension(mm): 2445*1195*1525
  • Carton dimension(mm): 2250*1300*830







Download
SAFARI 200GKV-H-Parts List
Safari200GKV-H-Parts.pdf
Adobe Acrobat Document 1.5 MB
Download
ASSEMBLY INSTRUCTION - DF200GKV
ASSEMBLY INSTRUCTION - DF200GKV.pdf
Adobe Acrobat Document 2.1 MB
