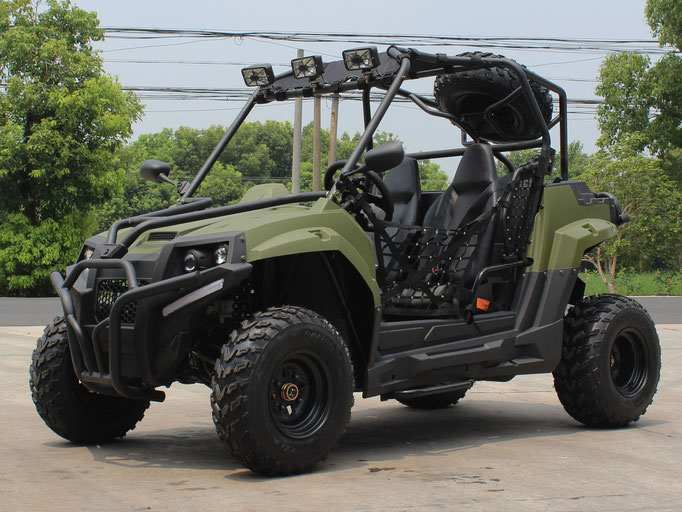

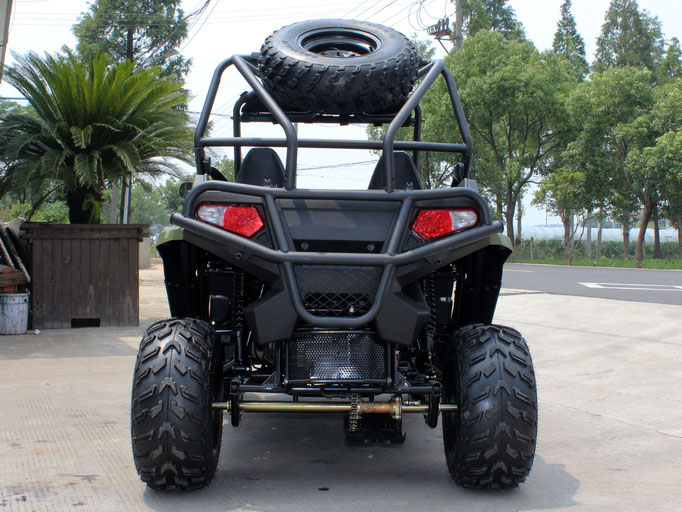

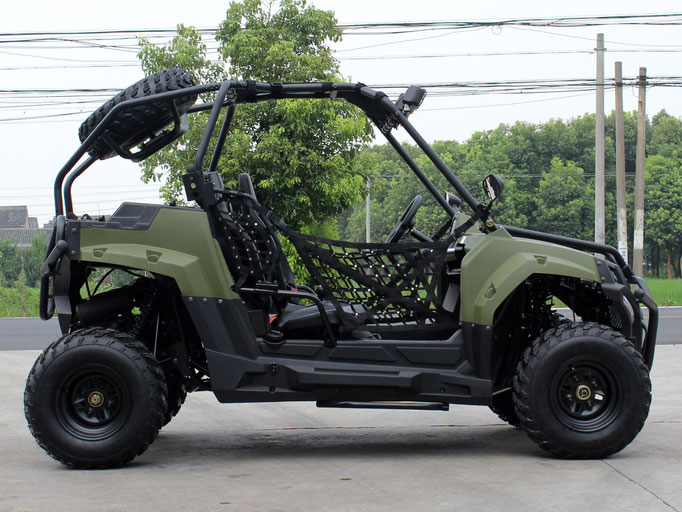

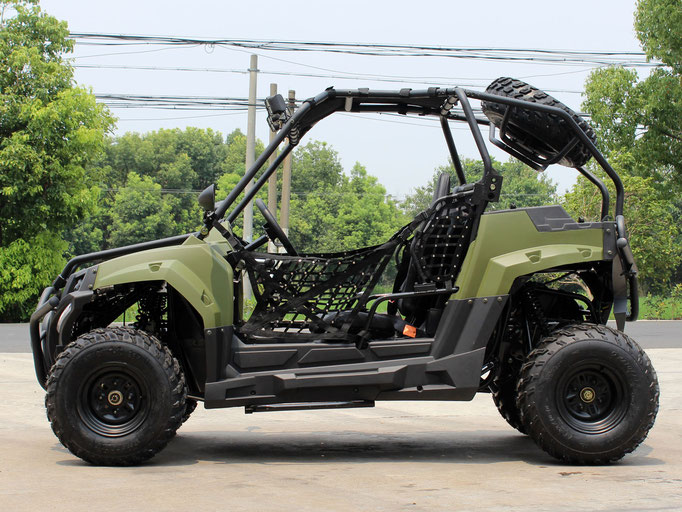

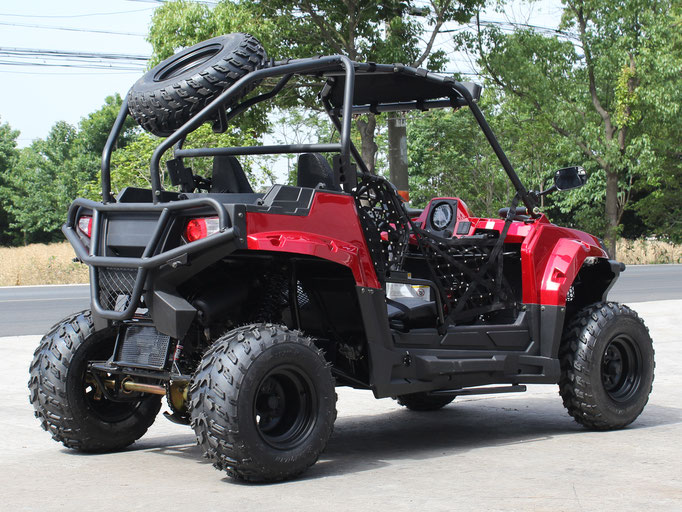

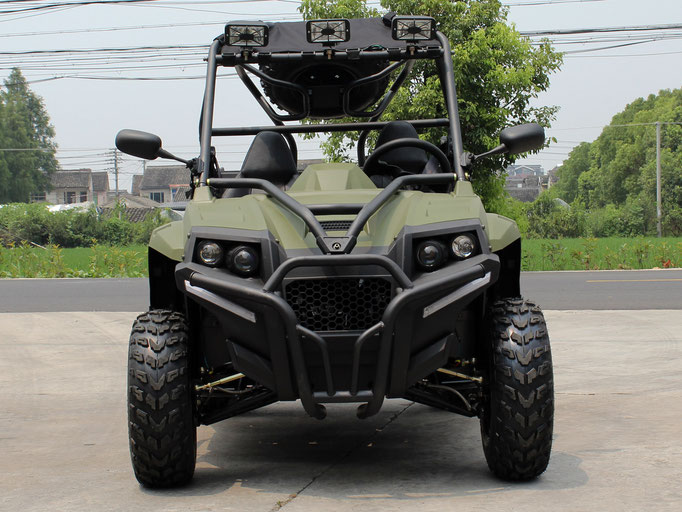

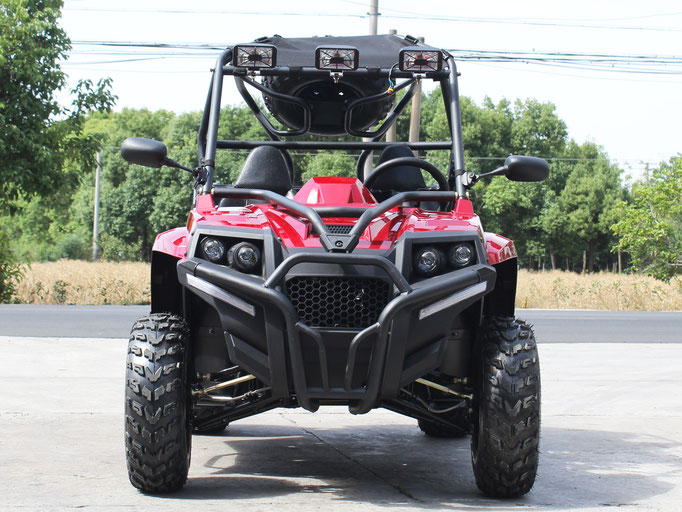

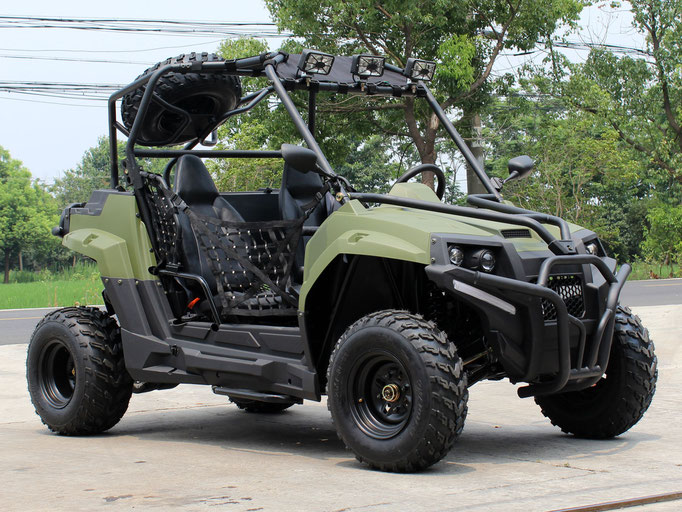

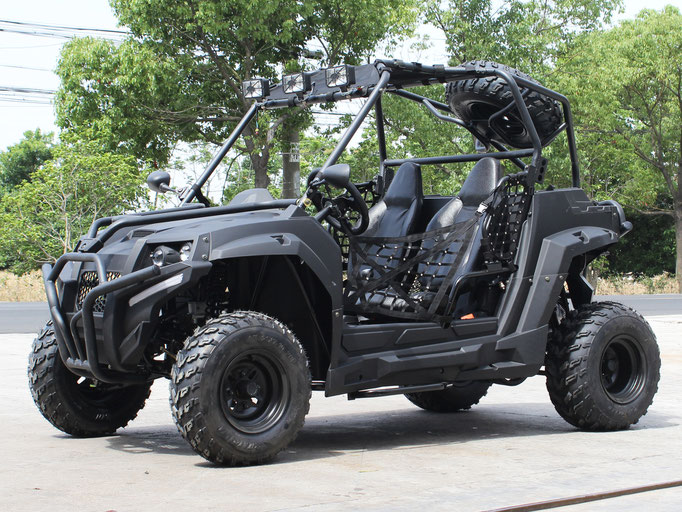

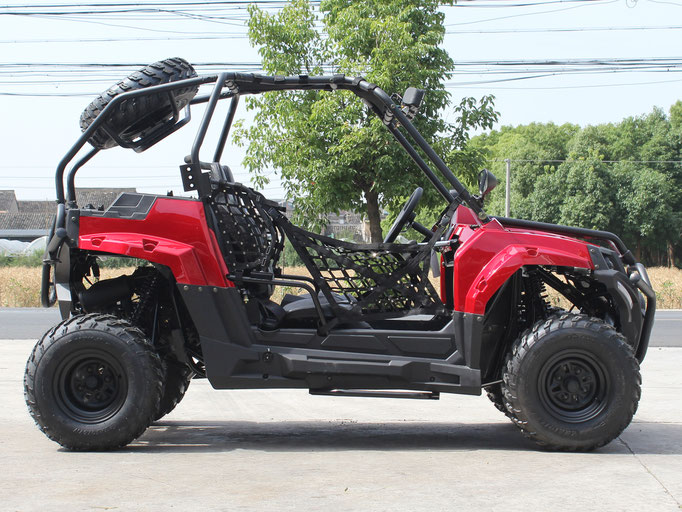

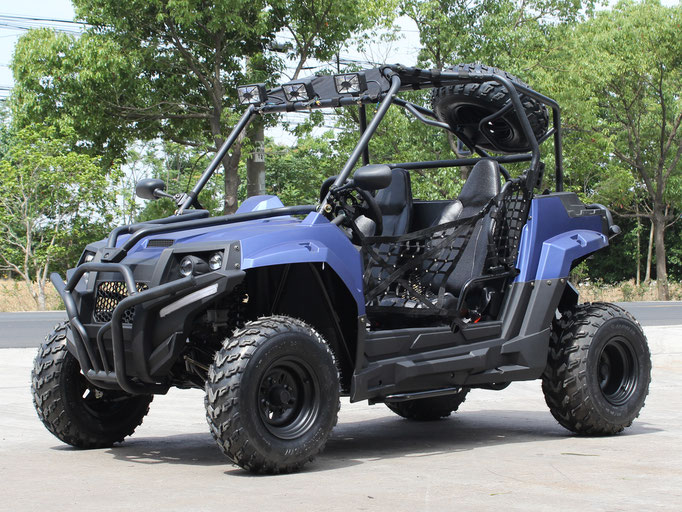

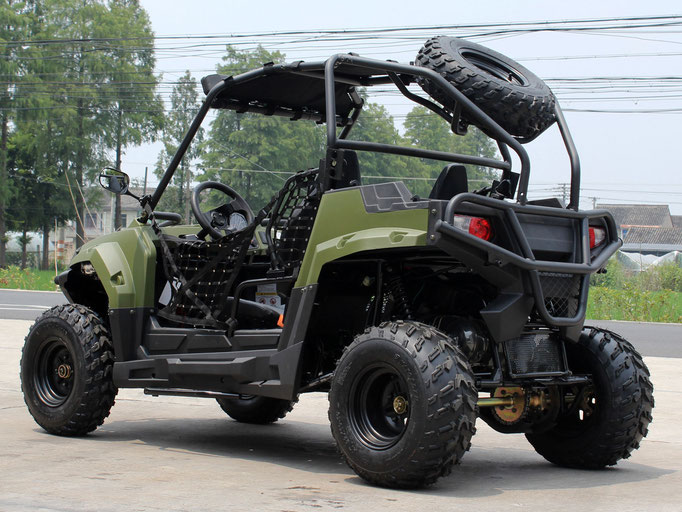

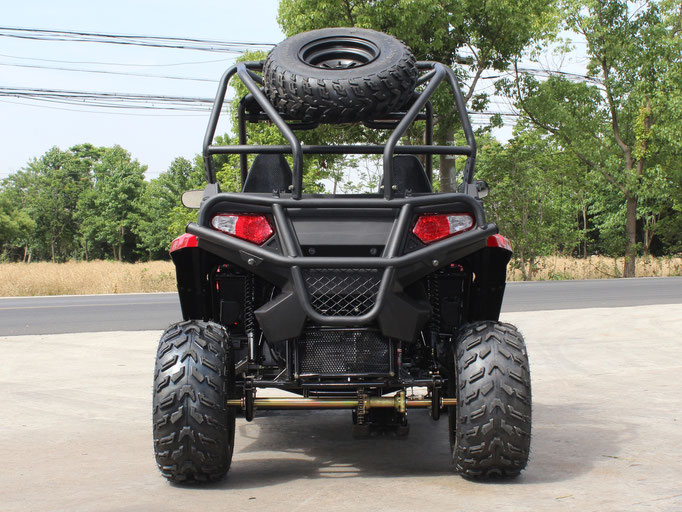

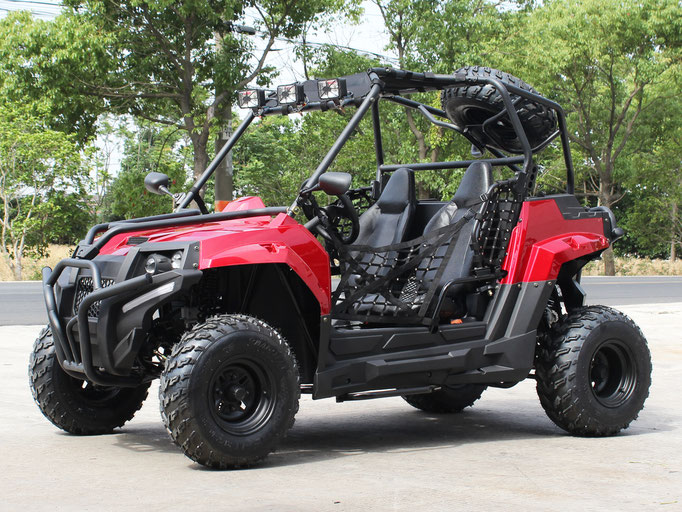

SAFARI DELUXE DF200GKV-N


Technical specification







1) Engine type: single cylinder, horizontal type, 4-stroke, air-cooled
2) Displacement(ml): 168.9
3) Max Power(kw/r/min): 8.3/8000
4) Max Torque(N.m/r/min): 11.0/6000
5) Ignition system: CDI
6) Gear: CVT(F+N+R)
7) Fuel tank capacity(L): 11
8) Economical oil exhaust(L/100km):  5.2
9) Max speed(km/h): 55
10) Transmission: Belt Drive +Chain Drive
11) Brake Type: Disc/Disc Brake
12) Wheelbase(mm): 1870
13) Ground clearance(mm): 150
14) Tires (front / rear): 21*7-10 /22*10-10
15) N. W.(kg): 264    G. W.(kg): 313
16) Product dimension(mm): 2445*1195*1525
17) Carton dimension(mm): 2250*1300*830







Download
Safari200GKV-N-Parts
SAFARI-DF200GKV-H-DELUXE.pdf
Adobe Acrobat Document 1.1 MB
Download
ASSEMBLY INSTRUCTION - DF200GKV
ASSEMBLY INSTRUCTION - DF200GKV.pdf
Adobe Acrobat Document 2.1 MB
