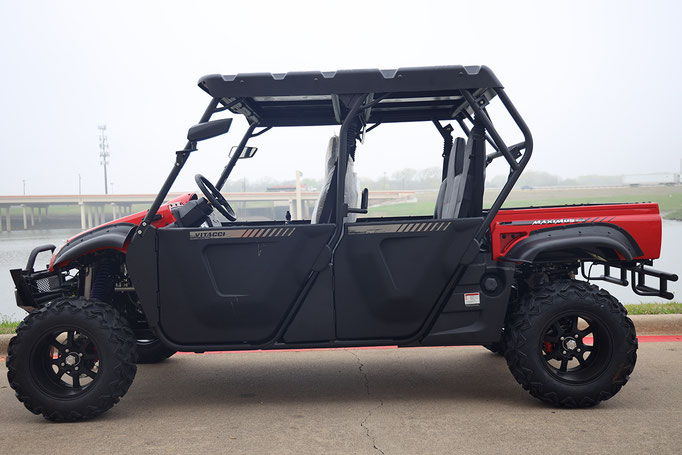

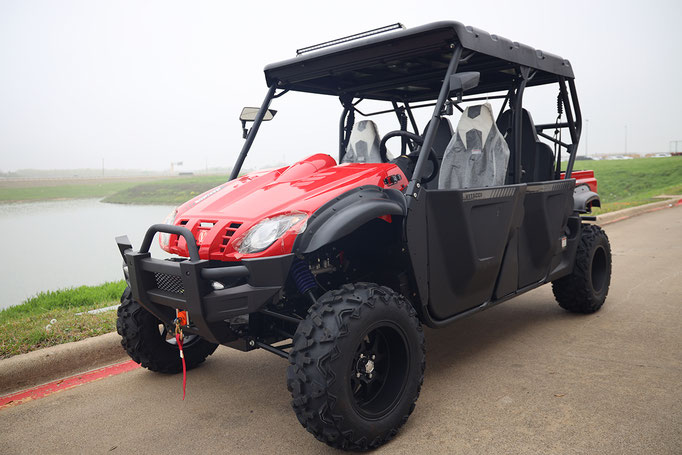

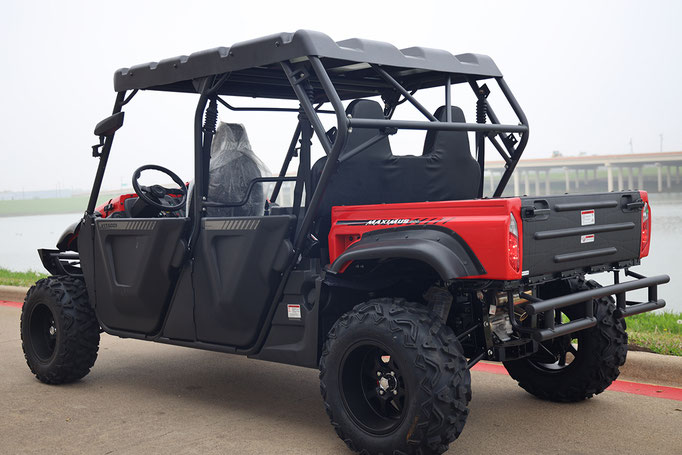

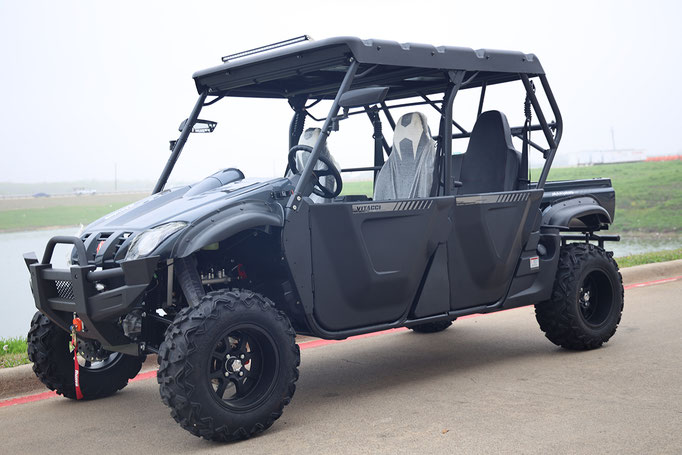

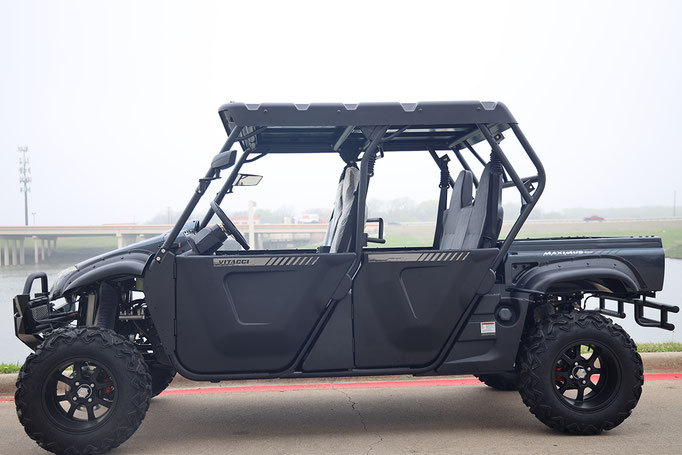

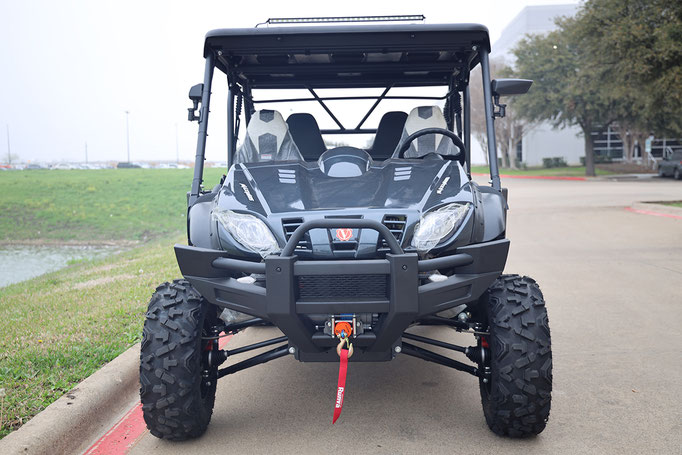

MAXIMUS 800CC - 4 SEATS


Engine Type: V-Twin Cylinder,4-Stroke
Engine Displacement: 800
Compression Ratio: 10.3:1
Fuel System: Electronic Fuel Injection
Max Power Output: 44.0kw/6000RPM
Max Torque: 73N.m/5000RPM
Cooling: Liquid Cooled
Starter: Electric

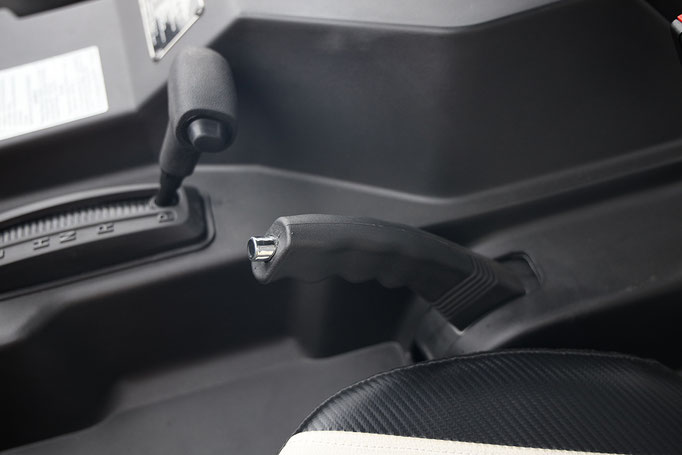

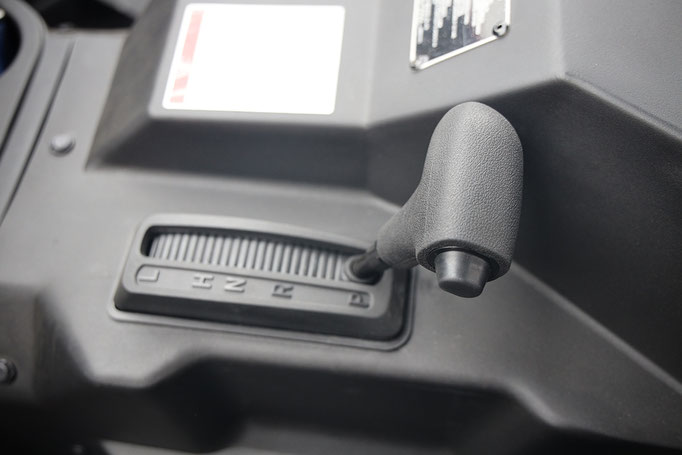

Transmission: CVT,L-H-N-R-P
Suspension/ Wheels/Brakes

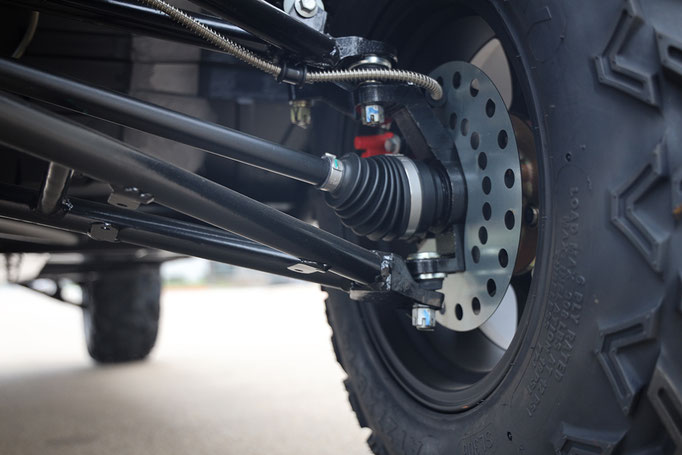

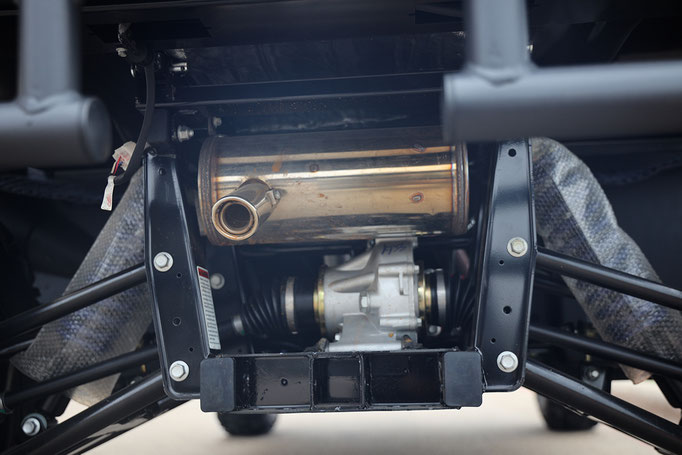

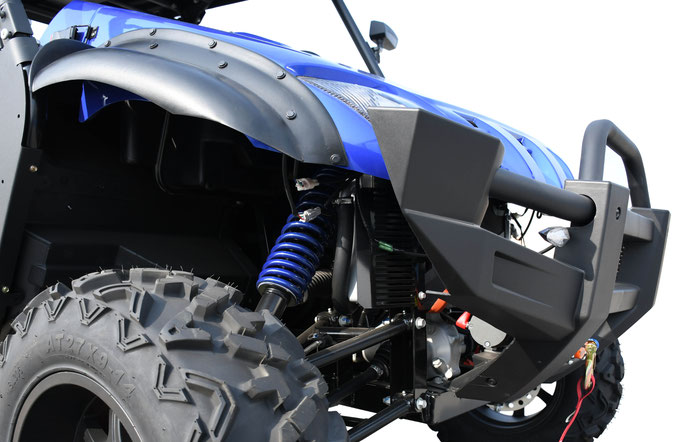

Front/Rear Suspension: Double A-Arm Independent
Shocks: Preloaded, Oil Damped
Front Tires: Alloy Wheel 27×9-14
Rear Tires: Alloy Wheel 27×11-14
Brakes (Front/Rear): Disc brake
Dimensions and Weight
Overall Vehicle (L X W X H): 151" X 68" X 77"
Wheel Base: 106"
Front Tread: 56"
Rear Tread: 54"
Ground Clearance: 11"

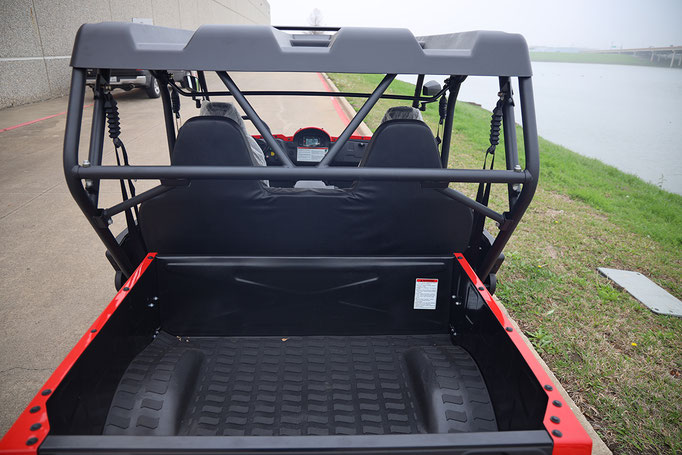

Cargo Bed Dump Type: Hydraulic Lift
Cargo Bed Capacity:: 220LBS
Person Capacity: 5
Fuel Capacity: 6.6 Gallons
Curb Weight: 1683LBS
Gross Vehicle Weight : 1874LBS
Towing Capacity: 2200LBS
Certification EPA
Container Loading 6PCS/40HQ
Colors Cyber Grey,Red,Blue
ACCESSORIES

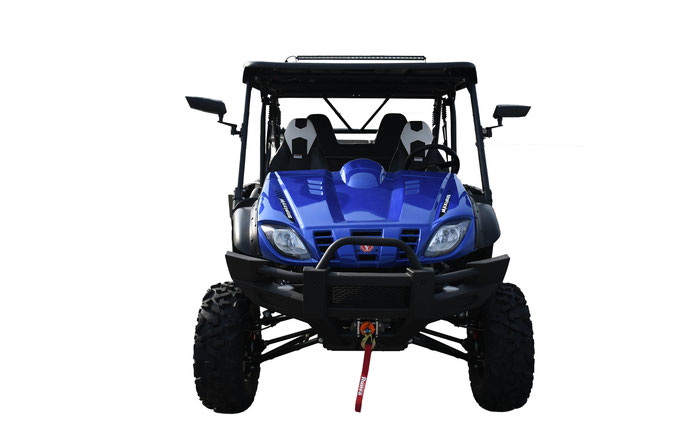

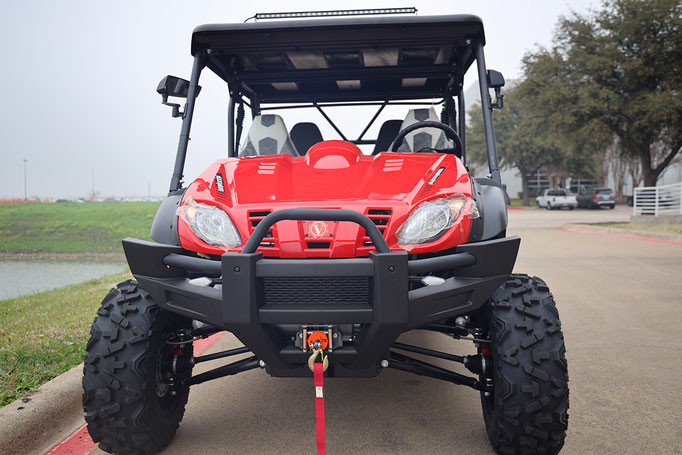

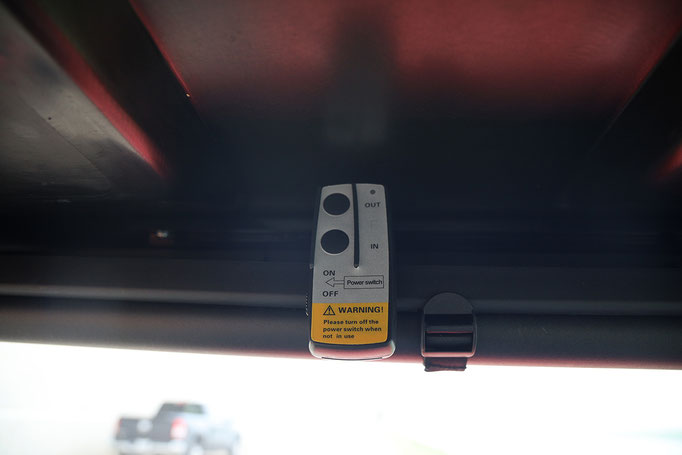

3500 LBS Front Winch Standard
Alloy Wheel Standard
Roof LED Light Standard
Front Windshield Standard
Power Steering Standard

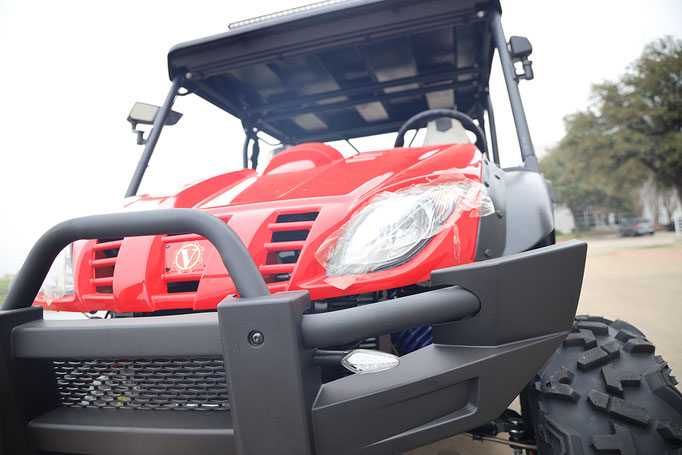

Front Bumper Standard
Rear Bumper Standard
Roof Standard

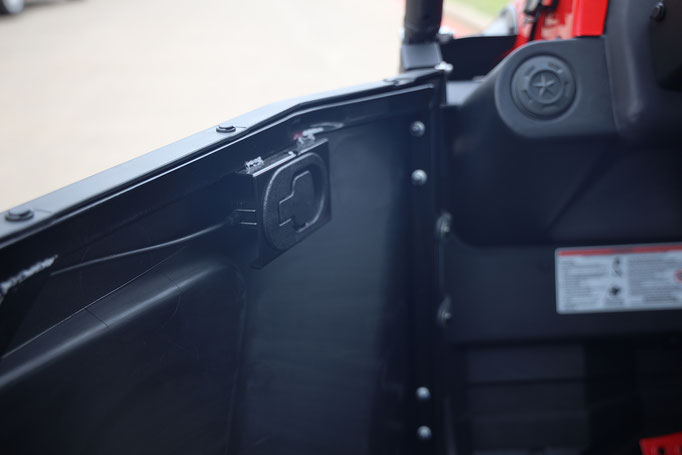

Plastic Door Standard
