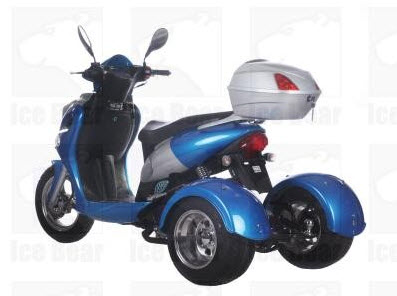

ACE 50CC (PST50-12)
SPECIFICATIONS
|
Model No: |
ACE (PST50-12) |
|
Engine Type |
Single Cylinder, 4-strokes |
|
Cooling |
Air Cooled |
|
Drive System |
Chain |
|
Piston Displacement |
49.5cc |
|
Bore and Stroke |
1.51 inches x 1.63 inches |
|
Compression Ratio |
10.5:1 |
|
Maximum Power |
2.1/8000kw/r/min |
|
Maximum Torque |
3.1/6500N.m./rpm |
|
Starter |
Electric / Kick |
|
Length |
76.7 inches |
|
Width |
39.7 inches |
|
Height |
44.1 inches |
|
Seat Height |
31.1 inches |
|
Wheelbase |
59 inches |
|
Ground Clearance |
2.8 inches |
|
Front Brake |
Disc |
|
Rear Brake |
Disc |
|
Front Tire |
120/70-12 |
|
Rear Tire |
205 x 50-10 |
|
Front Rim |
2.5 x 12 |
|
Rear Rim |
10 x 8 |
|
Ignition |
CDI |
|
Engine Oil Capacity |
0.75 Quarts |
|
Maximum Speed |
About 30mph (may vary with rider weight, road condition and/or other factors) |
|
Net Weight |
264 lbs |
|
Gross Weight |
330 lbs |
|
Weight Capacity |
220 lbs |
|
Frame |
Steel |
|
Packing Size |
75.6 inches x 34.2 inches x 47.2 inches |
|
Towing Capacity |
66 lbs |
|
Fuel Capacity |
1.2 gal |
|
Rear Suspension |
Dual Shock |
|
Accessories |
Instruction, Tool Box, Long Wire Clip, Reflection Mirror, Wheel Cover |
