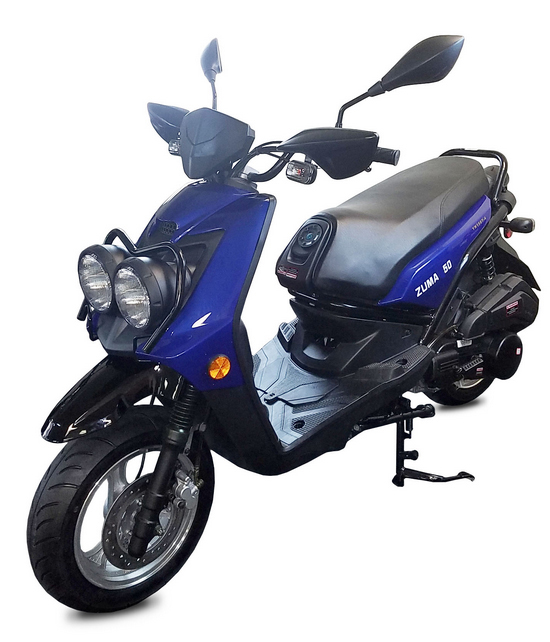

Zoma 49CC


ZOMA 49cc SPECIFICATIONS



ENGINE INFO

Engine type                  CVT



Engine brand                157QMJ



Displacement                49.9cc



Cooling                         Air cooled



Max horsepower            2.2hp/2500rpm



Max torque                   2.7n.m/1700rpm



Bore*stroke                  2.26*2.28inches



Max speed                    Up to 25mph (may vary with rider weight, road condition and/or other factors)



Climbing ability             30degree



Ignition                        CDI



Starting system            Electric/Kick



Battery                        12v/7AH



Carburetor brand          PD24J



Engine oil                     SAE15W/40SF



Gear oil                            *



CHASSIS ETC.

Clutch                        Automatic



Transmission                  *



Drive line                        *



Driving wheel            Rear wheel drive



Suspension, front/rear    *



Brakes, front/rear       Disc/drum



Brake operation          Hand + foot



Tires, front/rear          120/70-12



Fuel capacity/type       1.5gal



Weight, G.W./N.W.     298LBS/243LBS



Max load                    220.5lbs



DIMENSIONS

Wheelbase                43.63inches 1330MM



OA L*W*H                63.32*23.29*36.74inches 1930X710X1120



Height to seat           32.2inches



Min ground clearance 5.9inches 150MM







Download
Zoma-parts-ff.pdf
Adobe Acrobat Document 692.5 KB
