Engine Parameters
|
Engine Type
|
Single-cylinder, four-stroke, forced air-cooled, horizontal cylinder, upper-mounted suspension type (XinBa Power Engine)
|
|
Displacement（ml)
|
168.9ml
|
|
Bore × Stroke (mm)
|
61mm /57.8mm
|
|
Compression Ratio
|
9.2:1
|
|
Ignition Method
|
CDI
|
|
Starting Method
|
Electric / Kick Start
|
|
Transmission Type
|
CVT (Continuously Variable Transmission)
|
|
Lubrication Method
|
Pressure & splash lubrication
|
|
Clutch Type
|
Dry automatic centrifugal clutch
|
|
Power Transmission
|
Belt drive
|
|
Lubricating Oil Capacity – Crankcase
|
0.8 L
|
|
Gearbox Oil Capacity
|
0.12 L
|
|
Maximum Lubricating Oil Temperature
|
120°C
|
|
Maximum Power
|
7.0kw/6500r/min
|
|
Rated Power & Rated Speed
|
6.8kw/7000r/min
|
|
Minimum Stable Idle Speed (Low Idle)
|
1700r/min±100r/min
|
|
Maximum Stable Idle Speed (High Idle)
|
2500r/min±250r/min
|
|
Maximum Torque / RPM
|
11N.m/5000r/min
|
|
Main Dimensions & Weight
|
Overall Length (mm)
|
1920mm
|
|
Width (mm)
|
760mm
|
|
Height (mm)
|
1150mm
|
|
Minimum Ground Clearance（mm)
|
≥135mm
|
|
Wheelbase (mm)
|
1340mm
|
|
Seat Height (mm)
|
785mm
|
|
Curb Weight (kg)
|
127 kg
|
|
Fuel Tank Capacity (Front-mounted Tank)
|
8.5 L
|
|
Performance Parameters
|
Maximum Speed (km/h)
|
≤85 km/h
|
|
Suspension / Footrest / Support System
|
Front Shock Absorber
|
Upright type with dust cover
|
|
Rear Shock Absorber
|
Reinforced dual rear shock absorbers
|
|
Lower Triple Clamp
|
Forged steel
|
|
Passenger Footrest
|
Aluminum alloy footrest
|
|
Frame (Main Frame)
|
Integrated steel tube frame
|
|
Side Stand
|
Welded steel tube
|
|
Lighting
|

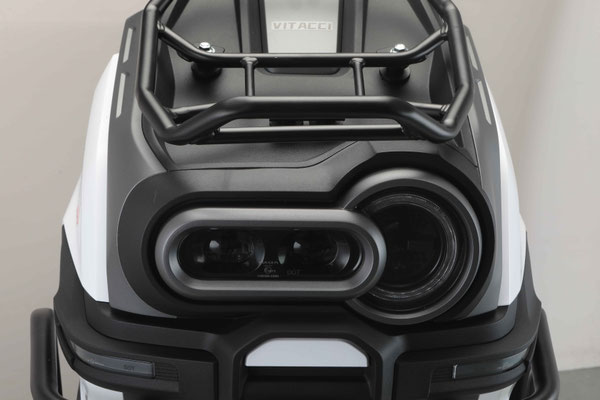

Headlight
|
Embedded dual projector headlight
|
|
Seat
|
Main Seat
|
Dual seat, temperature-resistant and weather-resistant leather
|
|
Storage Box
|
Storage Box
|
Fits 3/4 helmet
|
|
Anti-theft System
|
Anti-theft System
|
Equipped
|
|
Audio System
|
Audio System
|
Built-in speakers
|
|
Top Box
|
Top Box
|
Saiying top box
|
|
Protection Bars
|
Full Vehicle Crash Bars
|
Equipped with front panel guard, front left/right guards, rear left/right guards
|
|
Instrument Panel
|

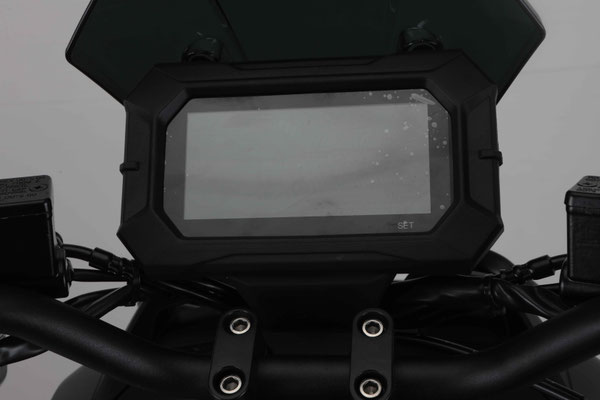

Meter
|
Flat LCD instrument panel
|
|
Fuel Supply Method
|
Fuel Pump
|
Self-priming fuel pump
|
|
Others
|
Front & Rear Aluminum Wheel Size
|
13 inch
|
|
Front & Rear Tire Size
|
13 inch / 130-60-13
|
|
Braking System
|
Front & rear disc brakes
|
|
Battery
|
Maintenance-free 12V7AH battery
|
