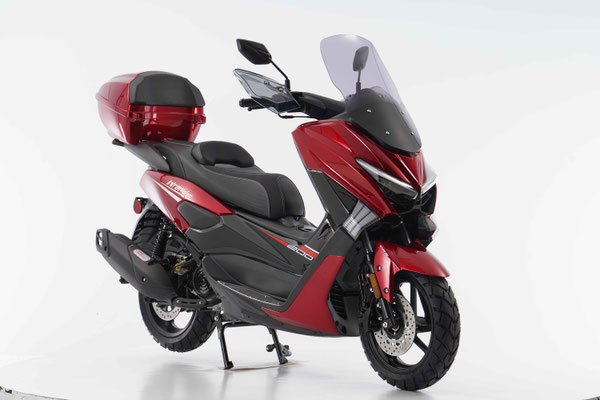

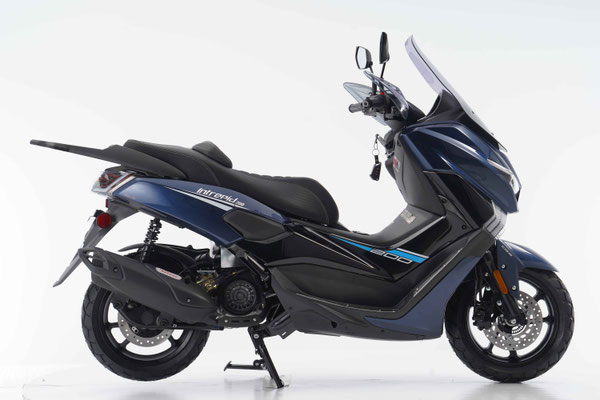

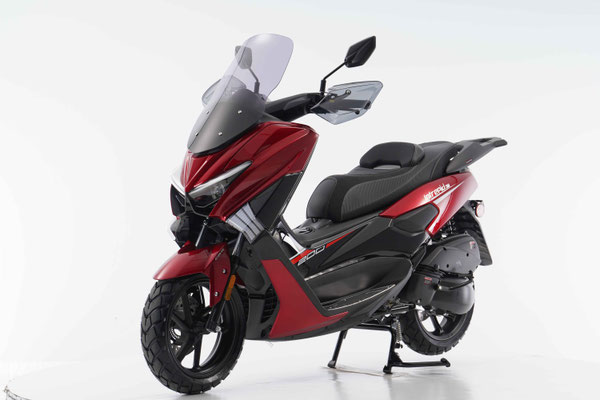

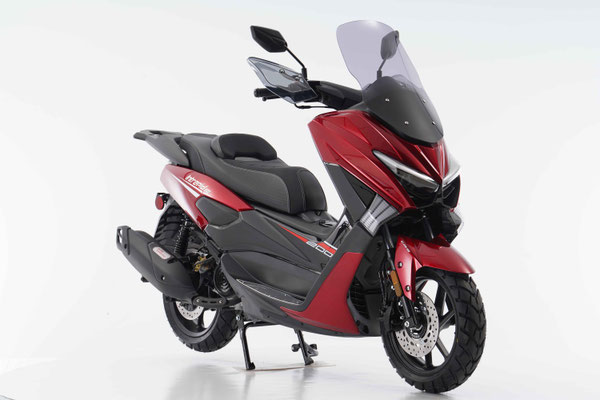

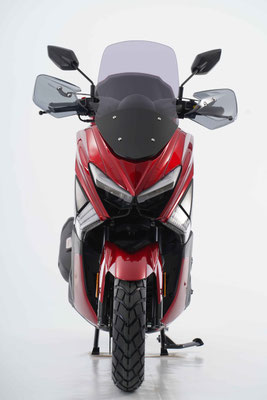

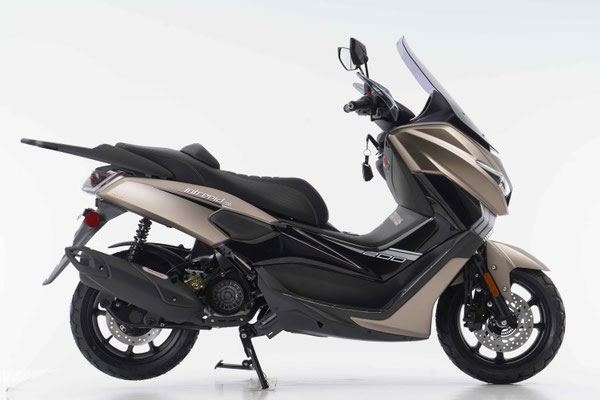

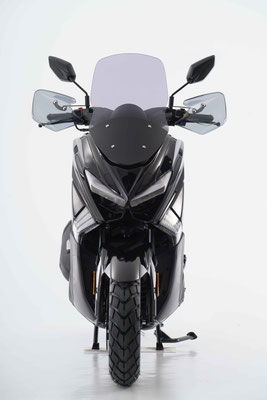

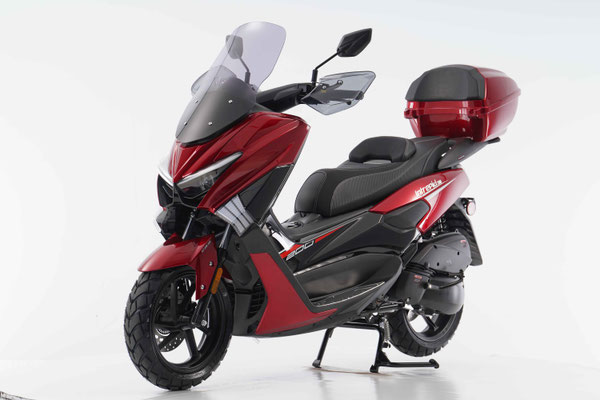

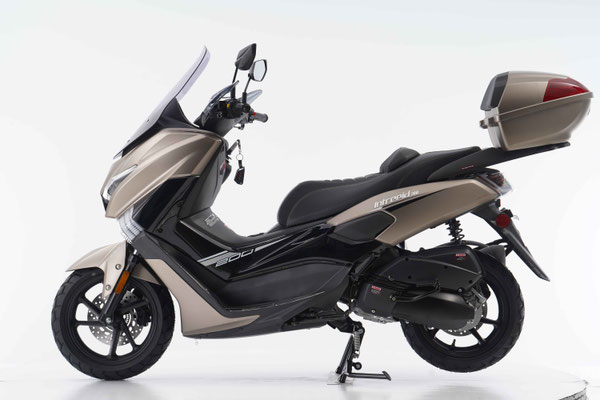

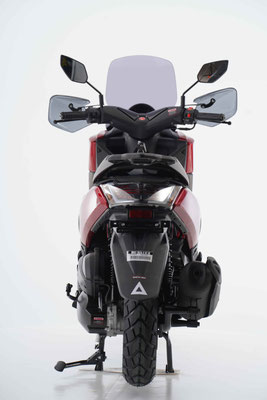

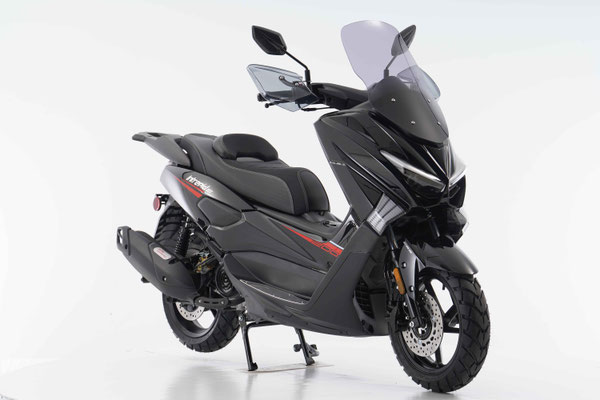

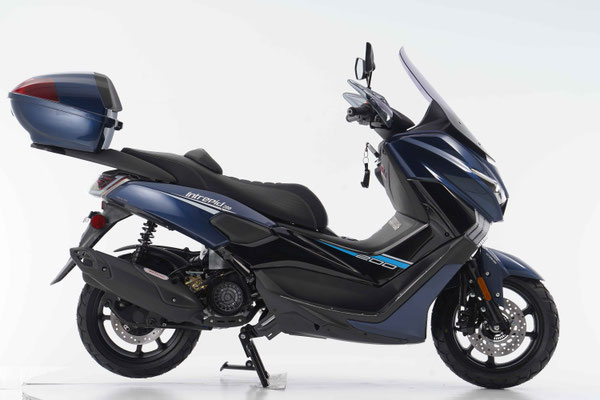

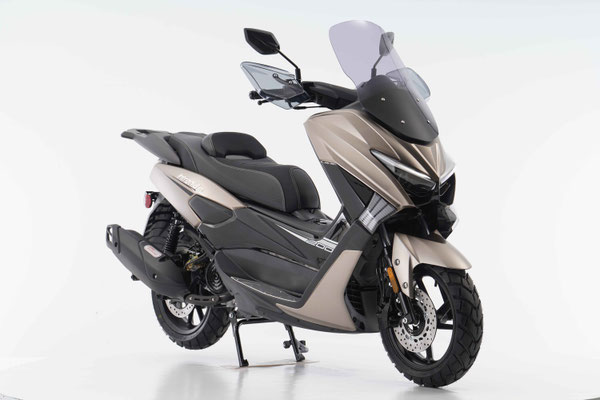

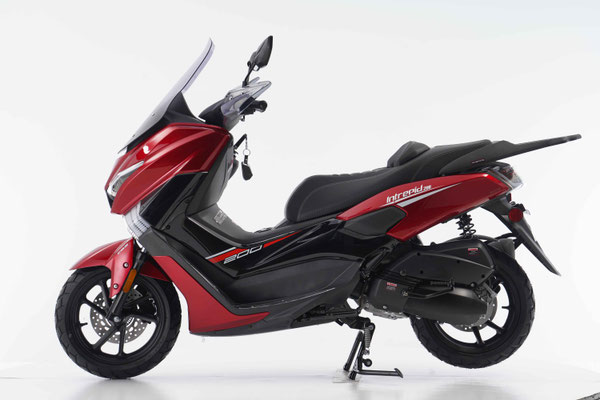

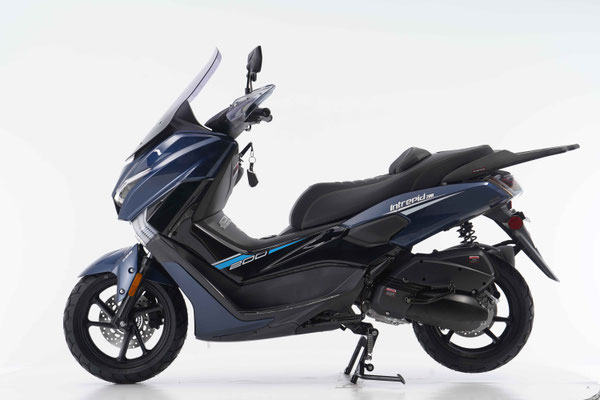

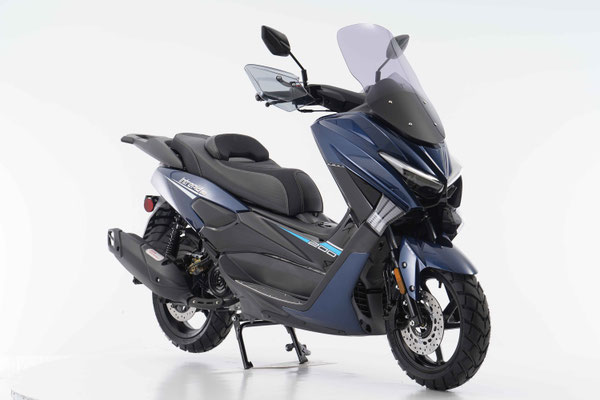

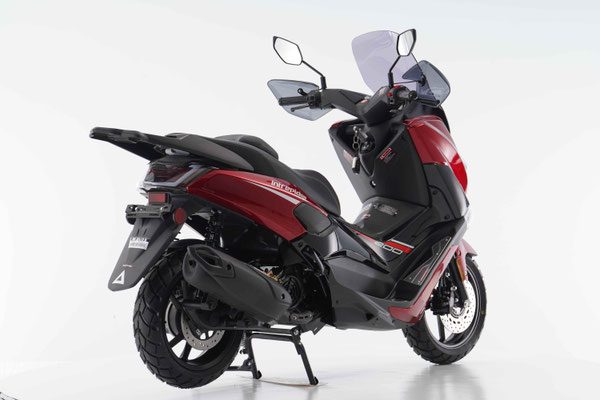

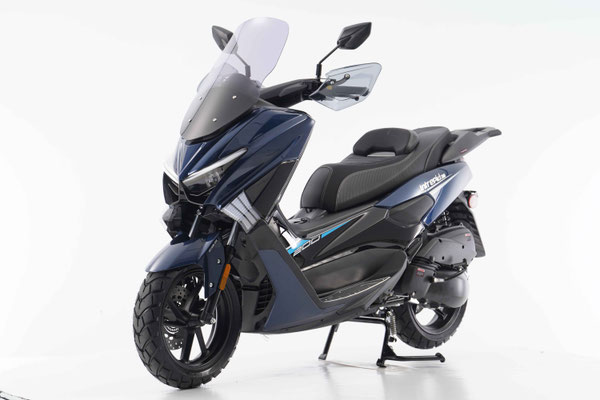

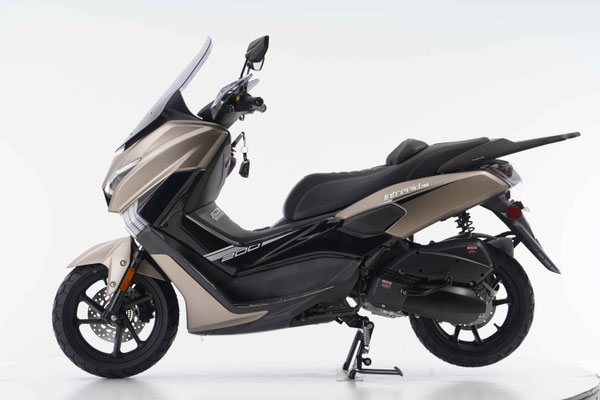

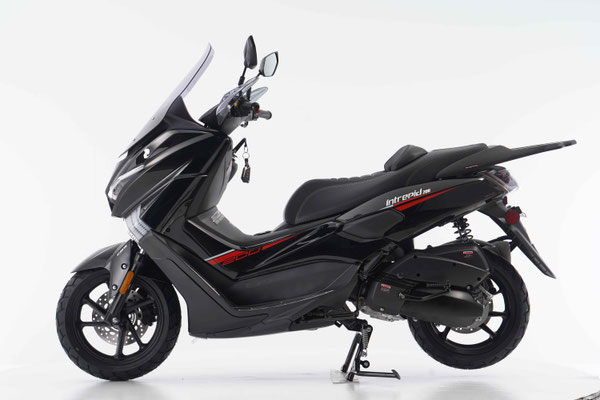

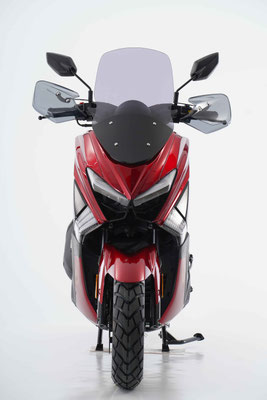

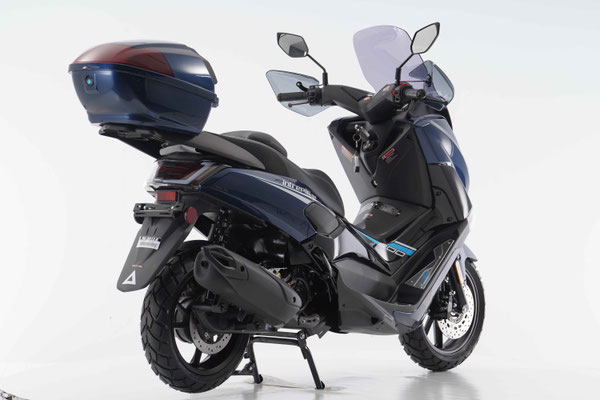

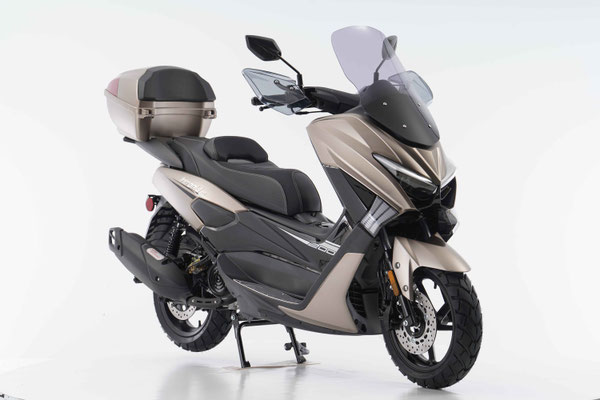

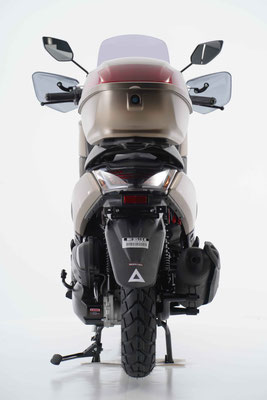

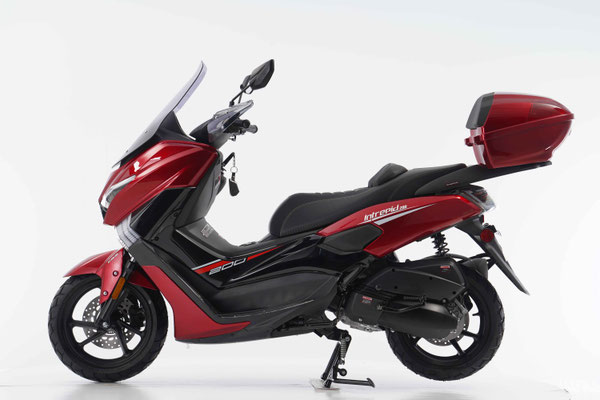

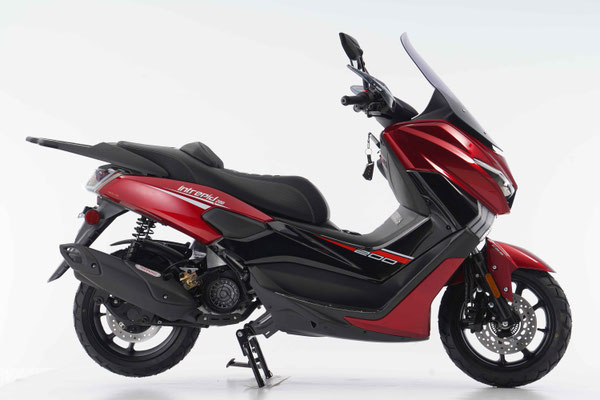

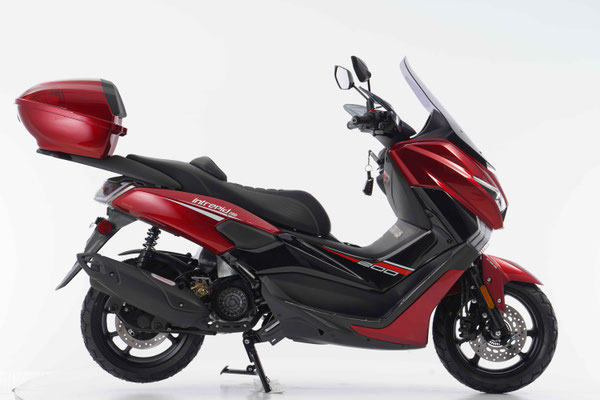

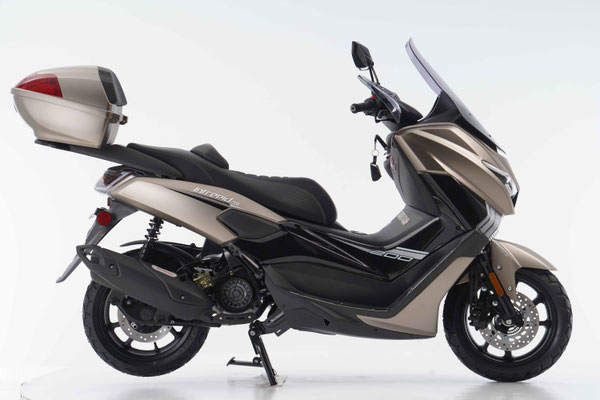

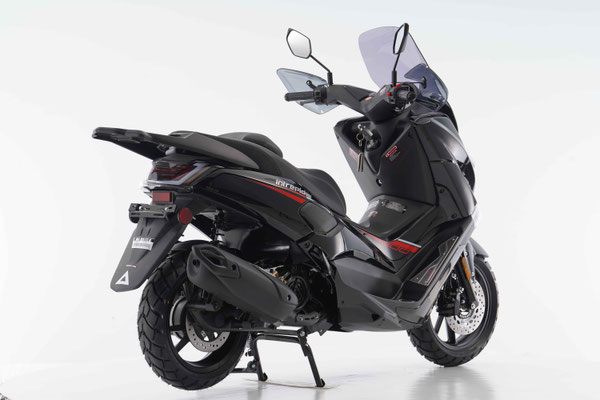

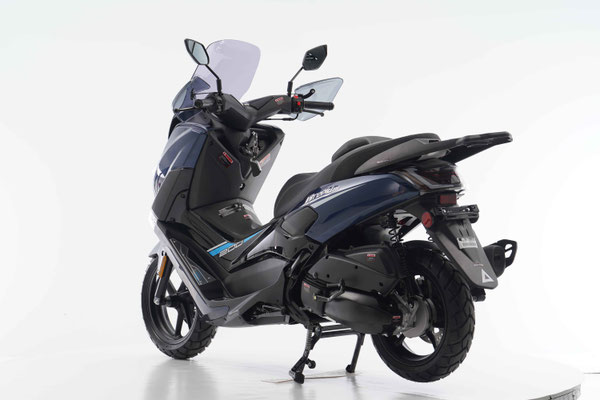

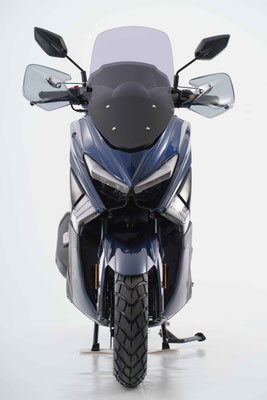

INTREPID 200
SPECIFICATIONS
|
Engine and transmission |
Displacement（cc） | 161 |

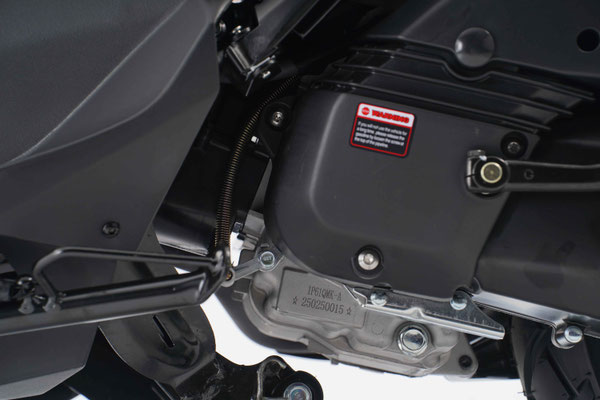

| Engine type | 1P57QMJ | |
| Engine mode | 1-cylinder/4-stroke/2-valve | |
| Bore x stroke(mm) | ø61*57.8 | |
| Max.power | 7.3kW/7500 r/min | |
| Max.torque | 11N·m/6000 r/min | |
| Compression ratio | 9.6:1 | |
| Fuel system | Carburetor | |
| Valve train | SOHC | |
| Ignition | C.D.I. | |
| Starter | Electric & Kick | |
| Lubrication system | Pressure splash lubrication | |
| Cooling system | Forced-air-cooled | |

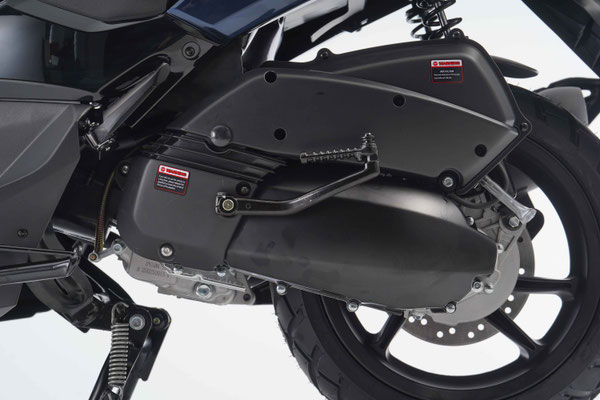

| Gear shifting type | Automatic CVT | |
|
Transmission type final drive |
V-Belt | |
| Clutch type | Automatic | |
| Physical measures | Dry weight（kg） | 135 |
| Seat height（mm） | 760 | |
| Overall length (mm) | 1995 | |
| Overall width (mm) | 760 | |
| Overall height (mm) | 1185 | |
| Ground clearance (mm) | 105 | |
| Wheelbase (mm) | 1390 | |
| Chassis and dimensions | Frame type | Flat scooter |
| Front suspension | Telescopic forks | |
| Front suspension travel (mm) | 90 | |
| Rear suspension | Mono-shock-absorber | |
| Rear suspension travel (mm) | 88 | |
| Fr. tyre | 110/70-13 | |
| Rr. tyre | 130/60-13 | |

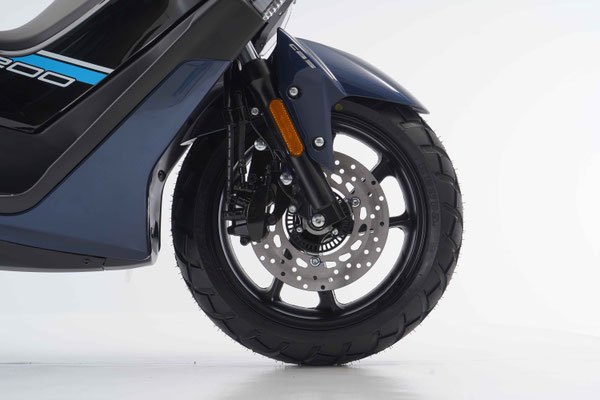

| Fr. Brakes | Disc | |
| Fr. brakes diameter (mm) | 230 | |
| Rr. brakes | Disc | |
| Rear brakes diameter (mm) | 220 | |
| Other specifications | Top speed（km/h） | 102 |
| Max.loadage (kg) | 160 | |

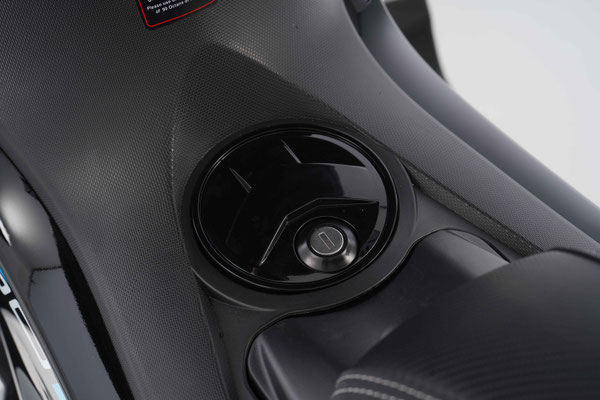

| Fuel capacity(L) | 13 | |
| Battery | 12V8.6Ah(YTZ10S) | |

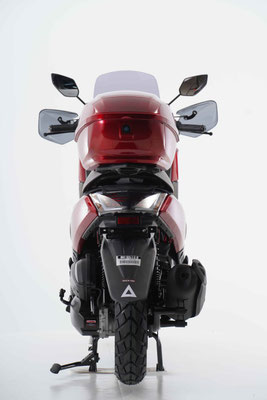

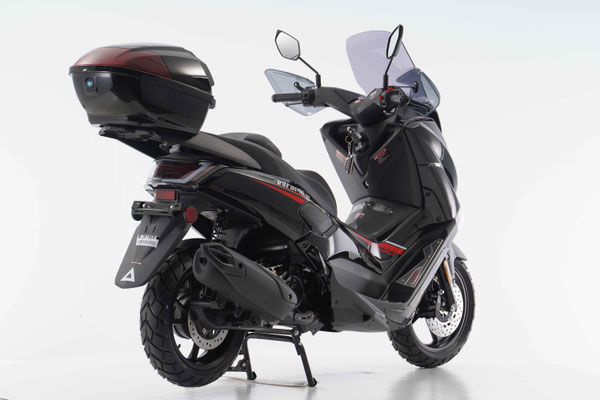

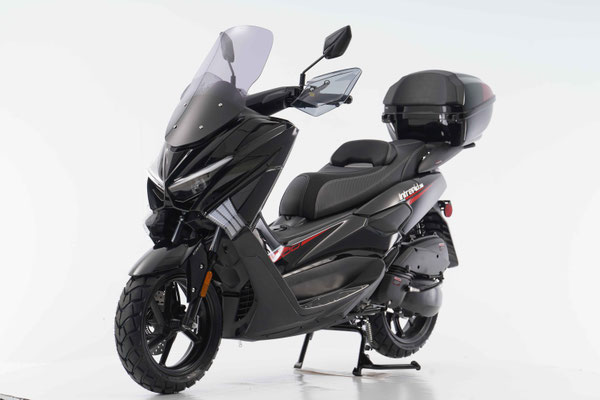

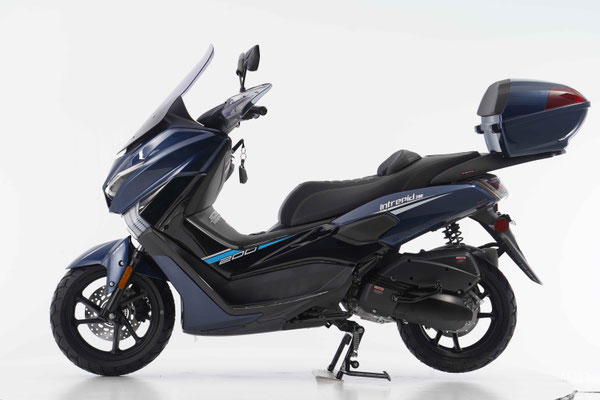

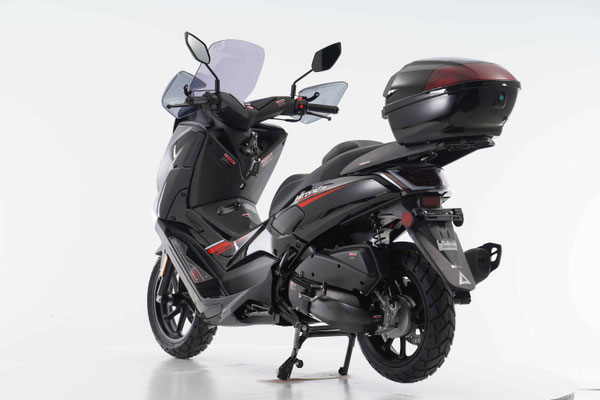

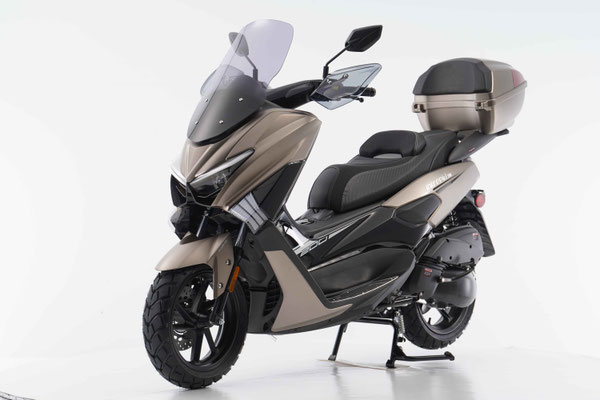

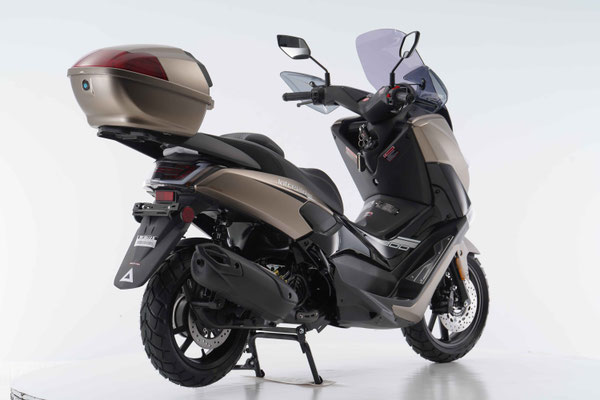

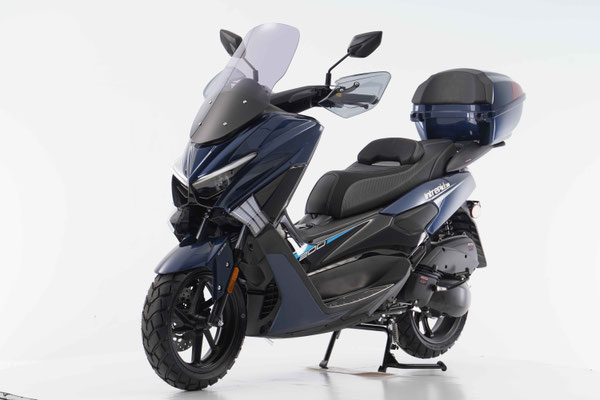

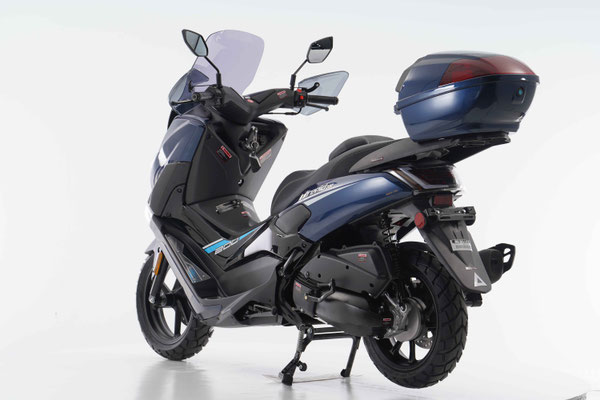

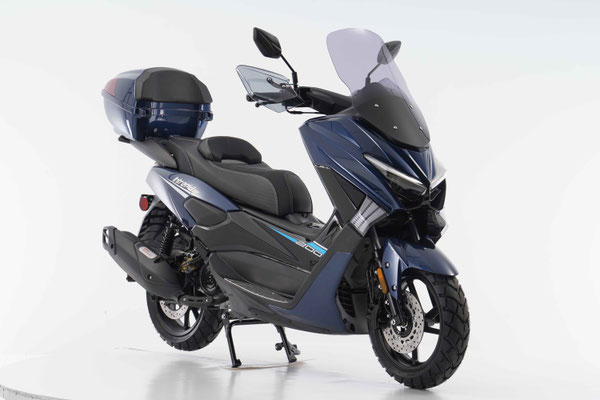

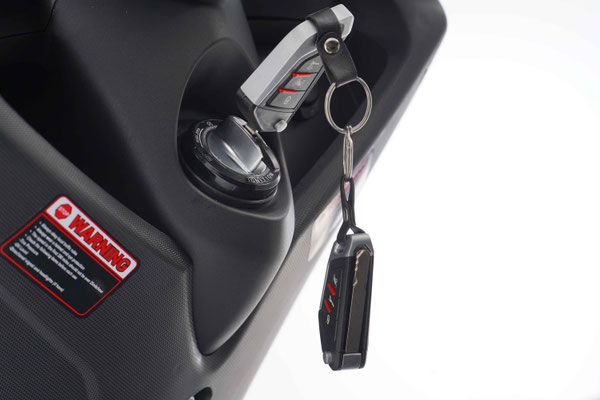

| WITH REAR BOX ,SMART KEY ,BLUETOOTH MP3 | ||
