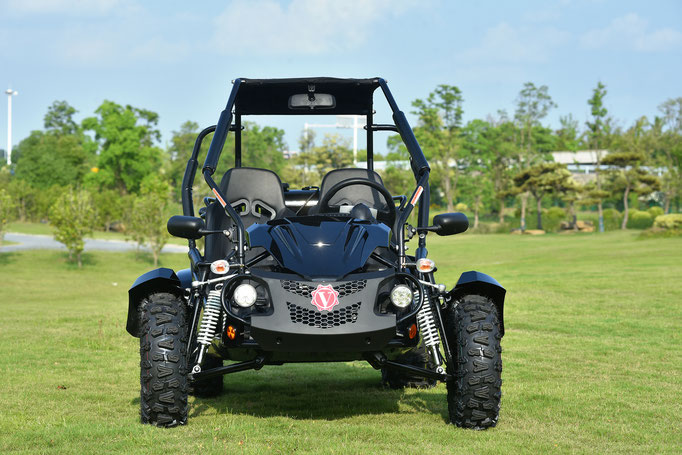

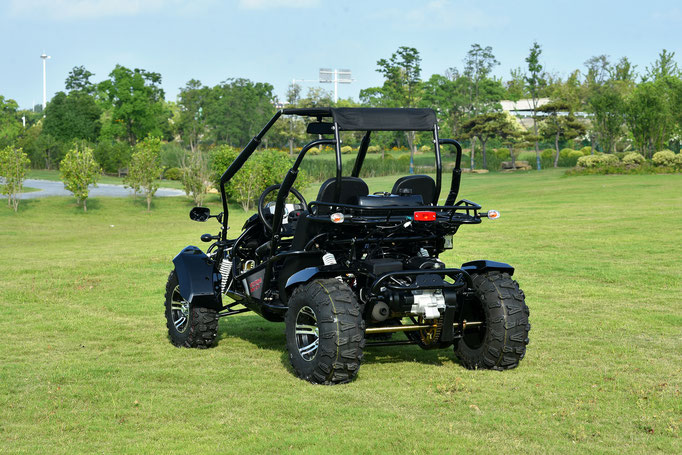

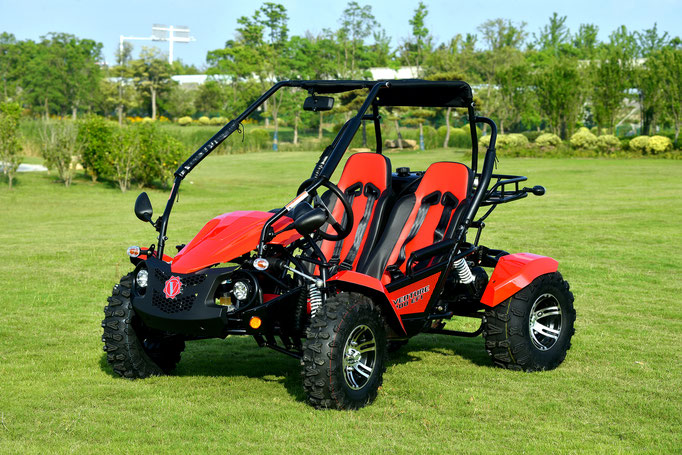

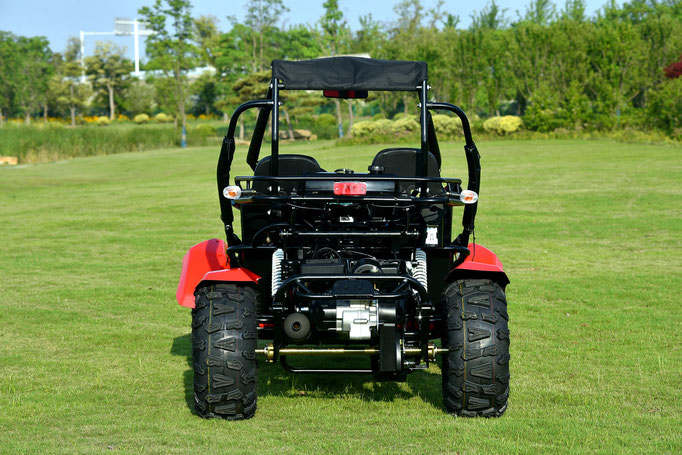

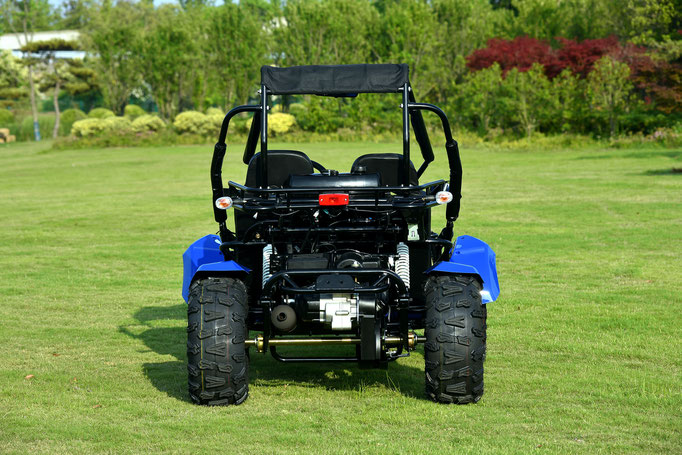

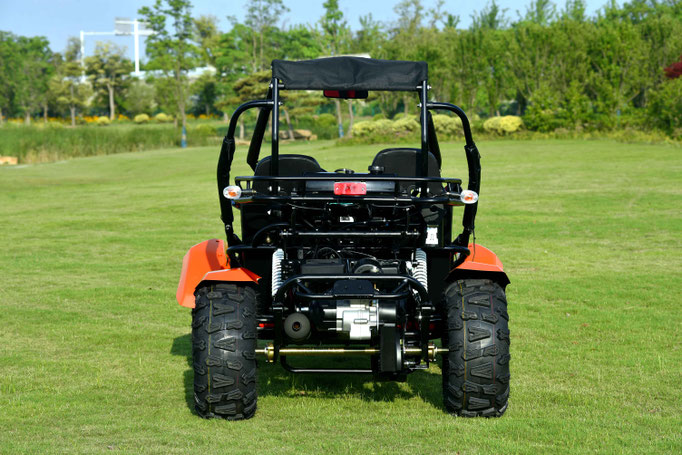

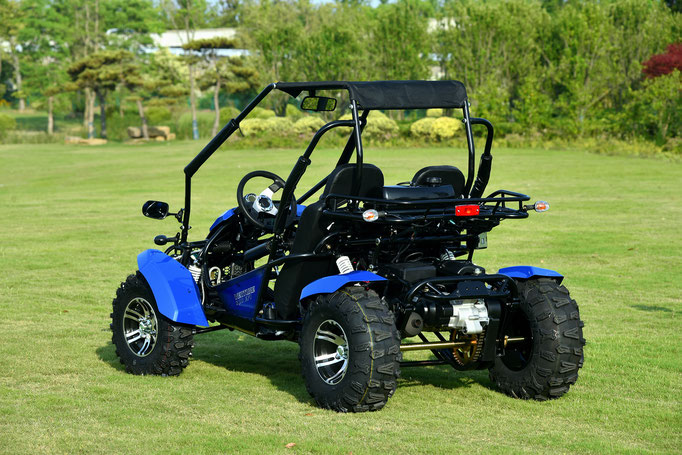

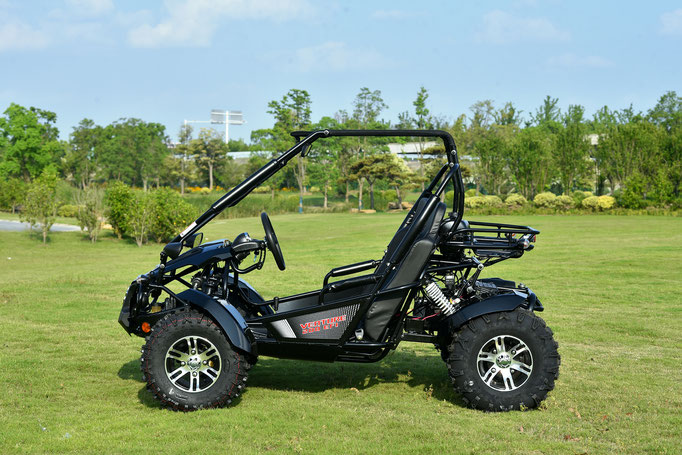

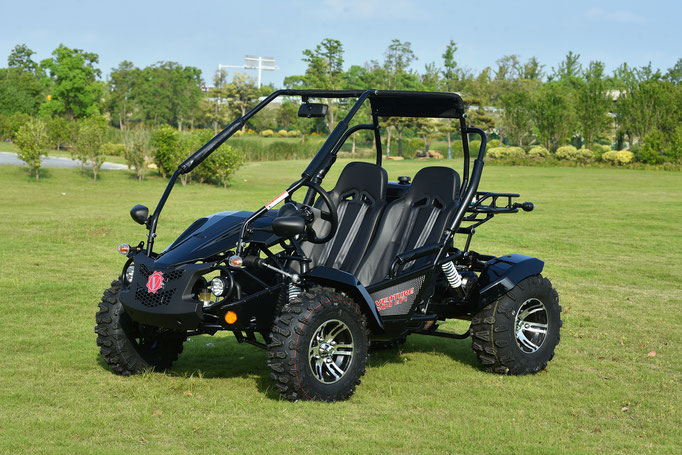

VENTURE 200 EFI



200CC (EFI) GOKART
Vehicle
Overall Length  89.8 in. (2281mm)
Overall Width 62.5 in. (1588mm)
Overall Height 57.5 in.(1460mm)
Front Tire 19×7-8
Rear Tire 22×10-10
Wheelbase  60.6 in.(1540mm)
Min. ground clearance 2.8 inch (71.1mm)
Dry Weigh 529lbs (240kg)
Front Suspension  Independent Mcpherson
Rear Suspension, Drag arm suspension
Front Brake Ventilated Hydraulic DIsc
Rear Brake Ventilated Hydraulic DIsc
Fuel Tank Capacity 2.3gal (8.5L)
Battery  12V 9Ah
Maximum Speed 38mile (60km/h)
Engine
Engine Type Four-Sroke, Single Cylinder
Displacement  168.9 cc
Bore & Stroke  61 × 57.8 mm
Compression Ratio 9.2:1
Fuel System Electronic Fuel Injection (EFI)
Ignition Electronic Control Unit (ECU)
Transmission Automatic F-N-R
Drive Train CVT belt, Chain drive
Cooling Air cooling
Maximum  power (Kw /r/min) 8.3KW/8000RPM
Maximum Torque (Nm /r/min) 11N·m/6000RPM

Download
Venture 200G spare part's manual.xlsx
Microsoft Excel Table 5.5 MB
Download
Venture 200 WEARING SPARE PARTS LIST.xls
Microsoft Excel Table 11.8 KB
