SPIDER DF200GHD 4 SEATS - AVAILABLE IN INDIANAPOLIS & DALLAS

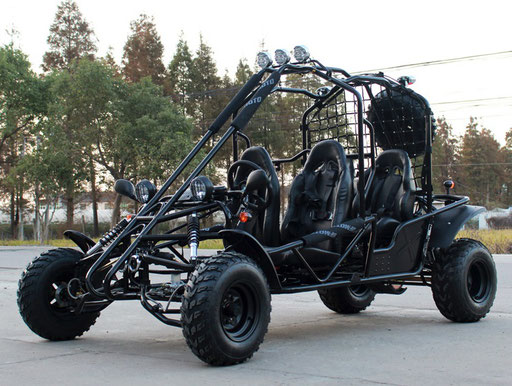

SPIDER DF200GHD 4 SEAT



Engine Size: 168.9 CC



Technical specification



1) Engine type: single cylinder, horizontal type, 4-stroke, air-cooled
2) Displacement(ml): 168.9
3) Max Power(kw/r/min): 8.3/8000
4) Max Torque(NM/r/min): 11.0/6000
5) Ignition system:  CDI
6) Gear: CVT(F+N+R)
7) Fuel tank capacity(L): 10
8) Economical oil exhaust(L/100km):  4.5
9) Max speed(km/h):  60
10) Transmission: Belt Drive +Chain Drive
11) Brake Type: Disc/Disc Brake
12) Wheelbase(mm): 2310
13) Ground clearance(mm): 180
14) Tires (front / rear):  21*7-10/22*10-10
15) N. W.(kg):287.   G.W.(kg):337
16) Product dimension(mm): 2850*1540*1740
17) Carton dimension(mm): 2700*1170*620
18) Qty/40HQ: 32units

Download
Spider DF200GHD-Parts List
DF200GHD - Spider 4 seats.pdf
Adobe Acrobat Document 1.4 MB
