SPEC
|
STATUS
|
|

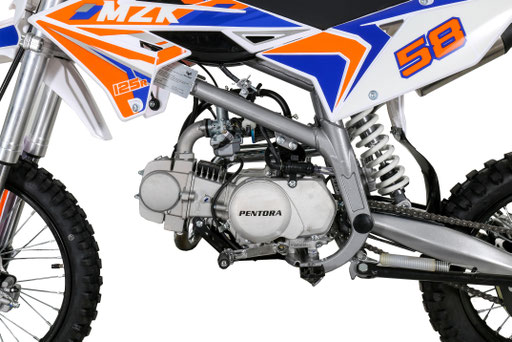

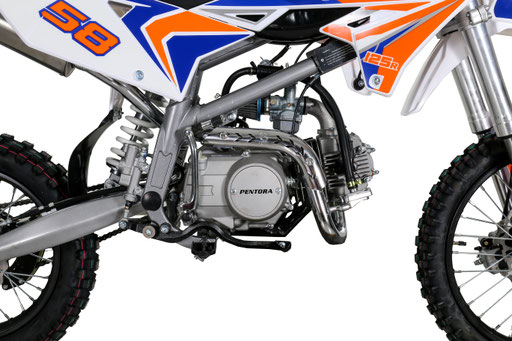

Engine Mode
|
ZONGSHEN -ZS154FMI-2
|
|
Engine Type
|
SINGLE CYLINDER,AIR COOLER
|
|
Displacement(ml)
|
124
|
|
Max.Power(kw/r/min)
|
6.3(1±10%)/7500(1±5%)
|
|
Max.Torque (N.m/r/min)
|
8.8(1±10%)/5500(1±5%)
|
|
Compression Ratio
|
9.0：1
|
|
Bore and Stroke(mm×mm)
|
54×54
|
|
Ignition method
|
CDI
|
|
Lubrication method
|
Pressure spray
|
|
|
10W/40
|
|
Starting method
|
KICK START
|
|
Clutch method
|
Manual wet multi piece type
|
|
Gearshift Method
|
Normally engaged two-stage transmission with four gears
|
|
transmission
|
Chain
|
|
spark
|
A7TC
|
|
size ：mm
|
1820*750*1130
|
|
wheelbase : mm
|
1250
|
|
seat height : mm
|
850
|
|
ground clearance : mm
|
280
|
|
top rake
|
21
|
|
Minimum turning radius
|
2300
|
|
gear ratio
|
428H/14:41
|
|
break
|
fr. & re.: disc fr: φ210; re:φ190
|
|
break type
|

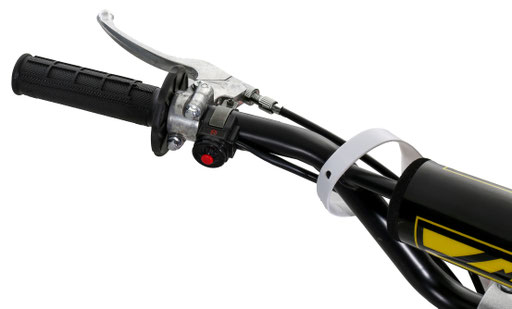

front hand break, rear foot break
|
|
wheel
|
steel wheel, 1.6*17 & 1.85*14
|
|
Tire
|
fr：70/100-17 re：90/100-14
|
|
Fr. suspension
|
up side downφ45×φ48×735
|
|

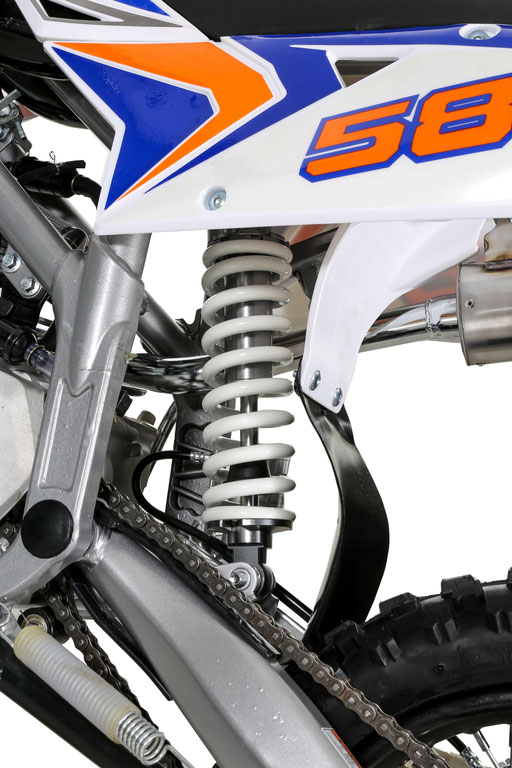

Re. suspension
|
φ12×350
|
|
foot pedal to seat: mm
|
530
|
|
carb
|
PE19
|
|
tank capacity
|
4L
|
|

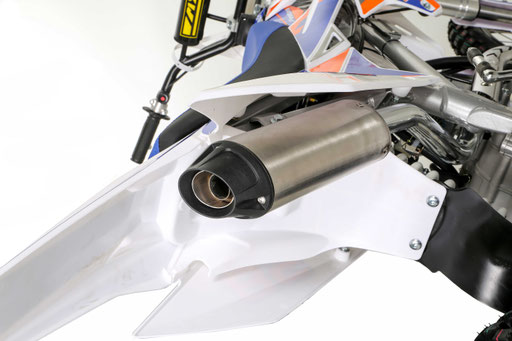

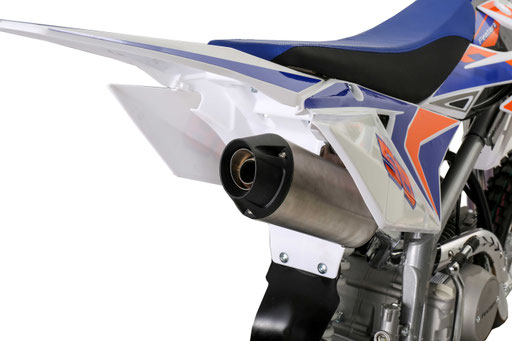

muffler
|
aluminum muffler
|
|
frame
|
φ35 material
|
|
rear swing arm
|
Sheet metal forming in one
|
|
Max load
|
100Kg
|
|
NW
|
75Kg
|
|
Gw
|
95Kg
|
|
packing way
|
take off fr. suspension, packed by steel frame and carton
|
|
packing size
|
1400*650*380
|
