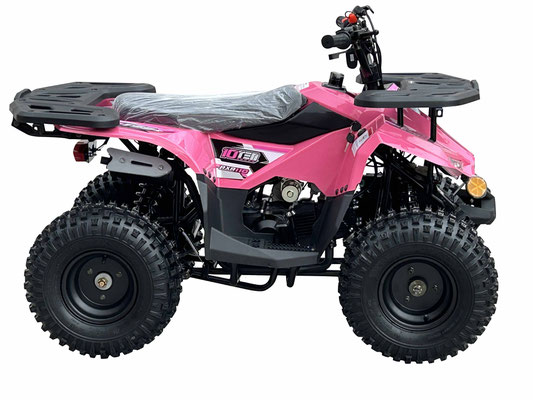

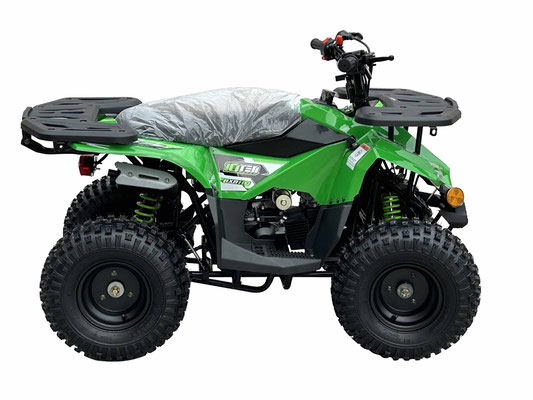

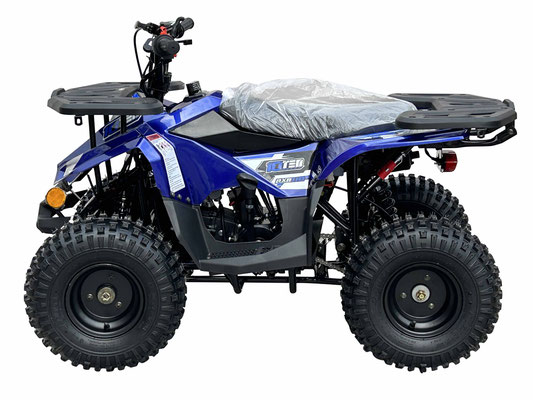

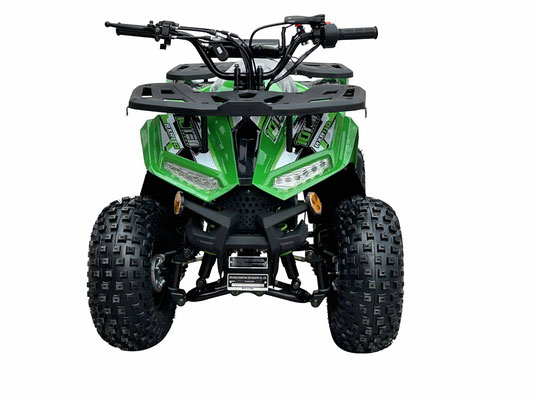

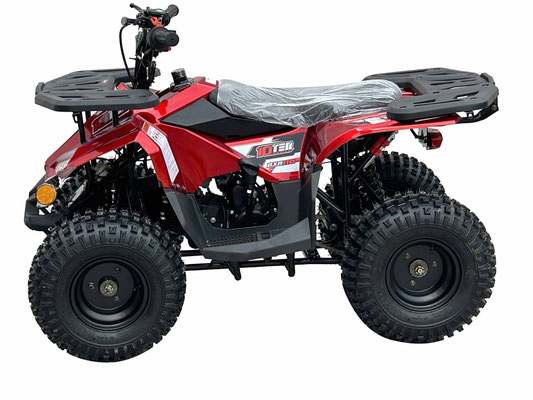

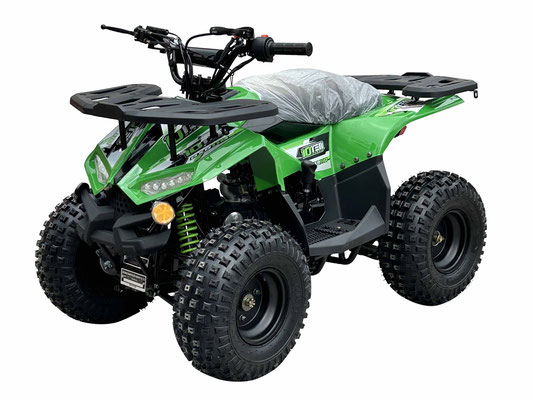

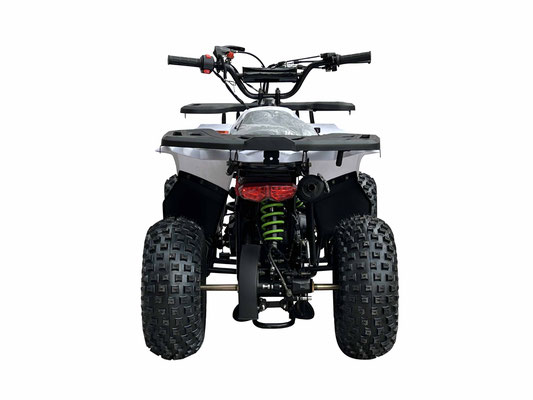

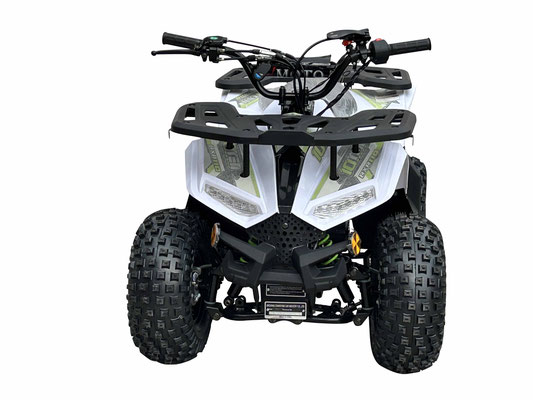

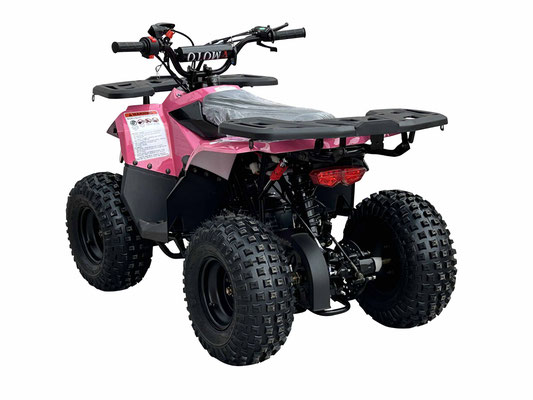

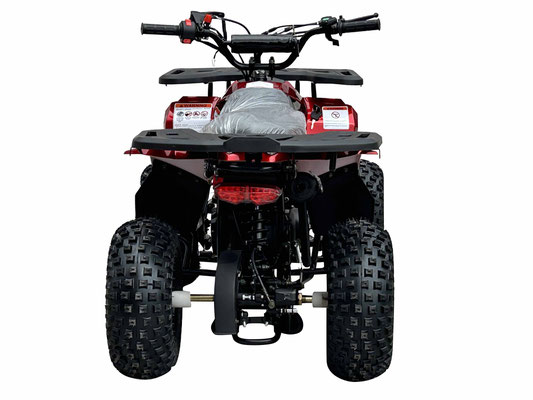

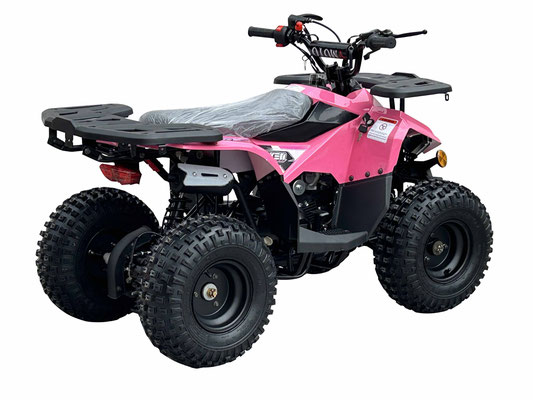

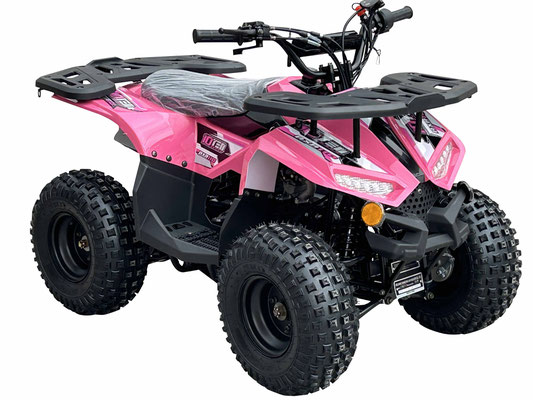

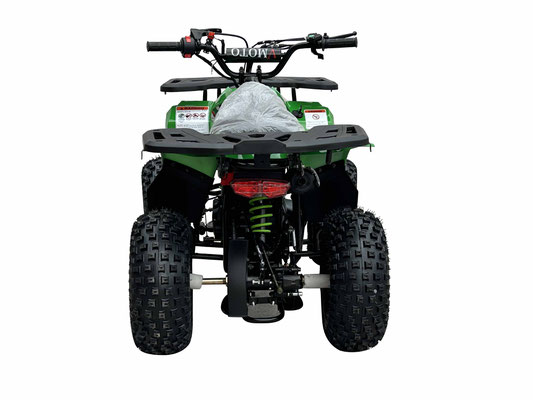

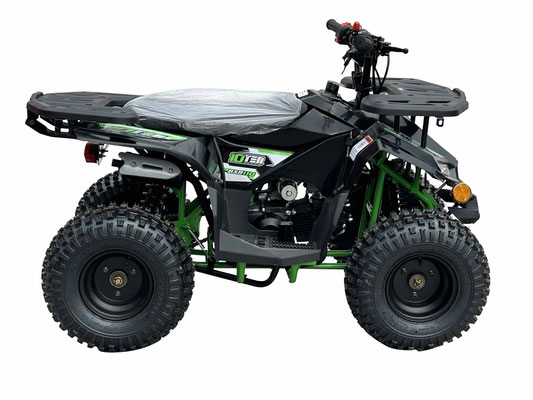

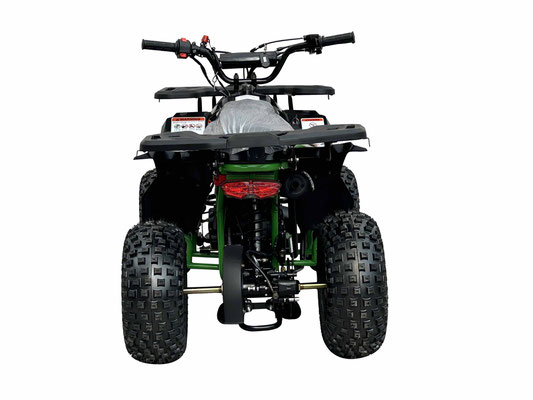

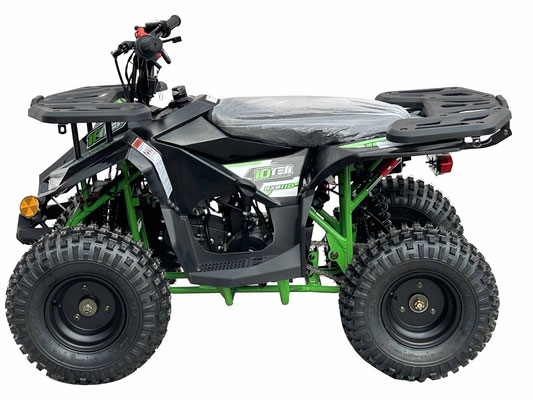

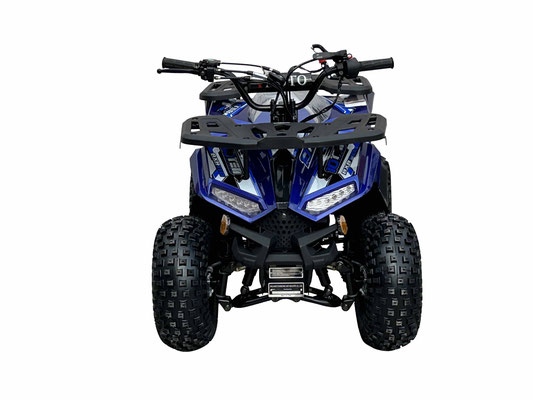

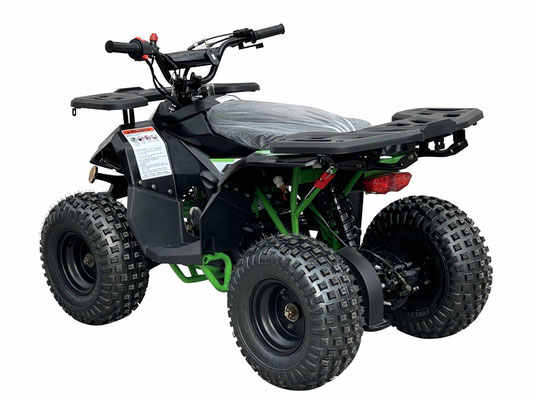

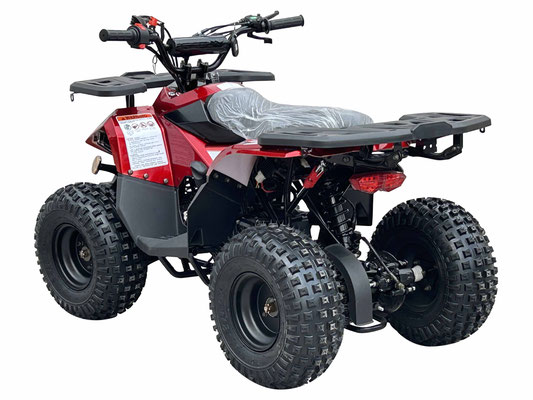

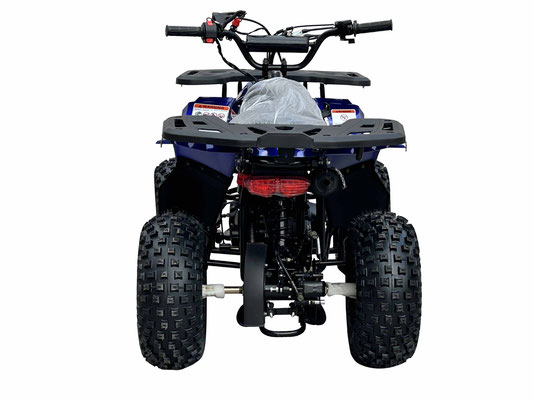

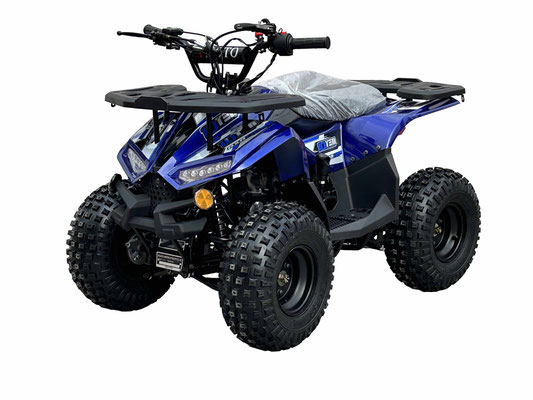

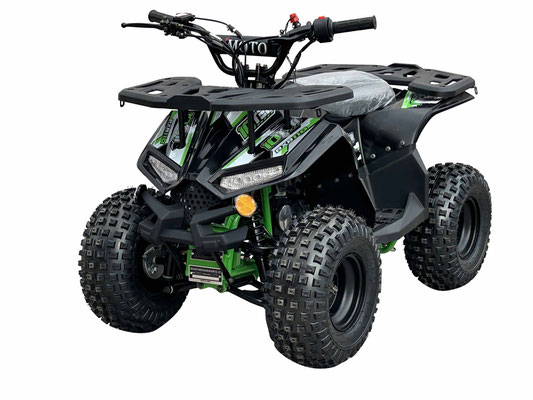

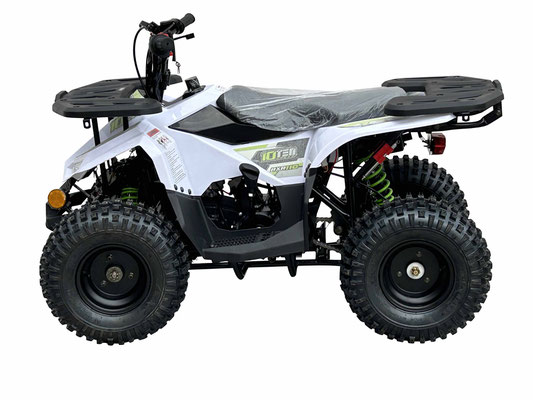

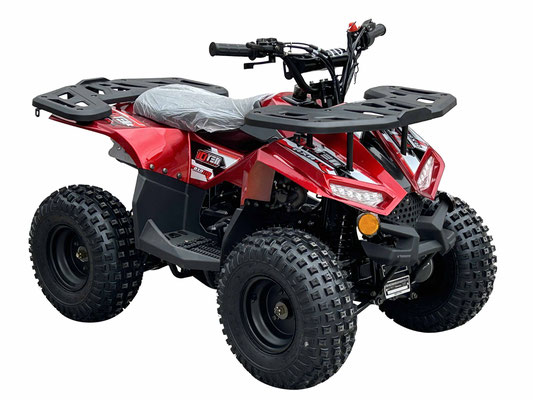

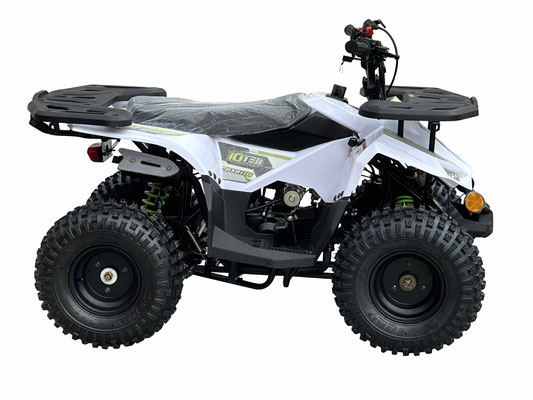

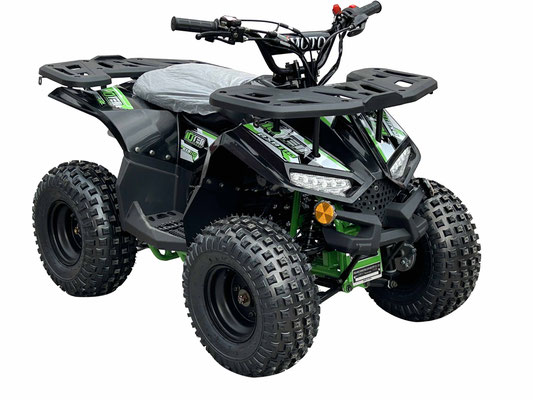

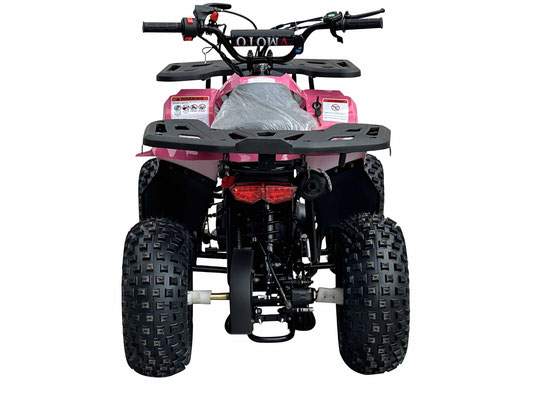

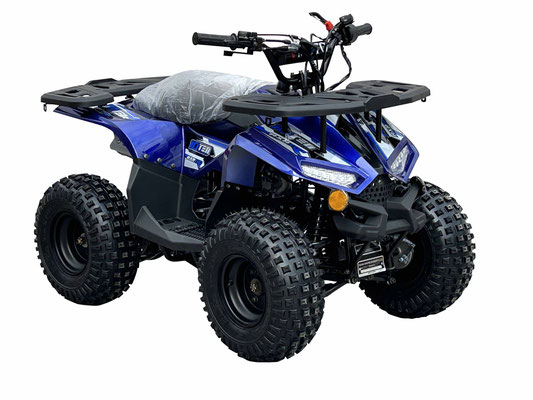

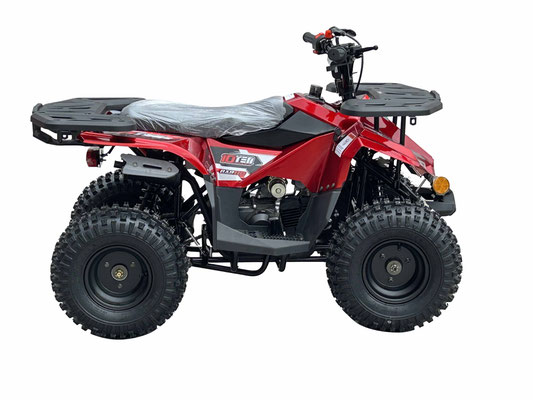

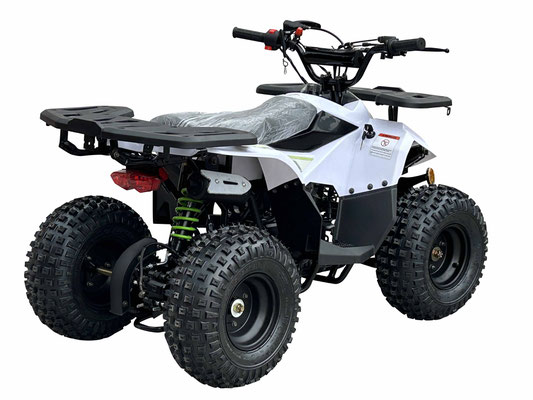

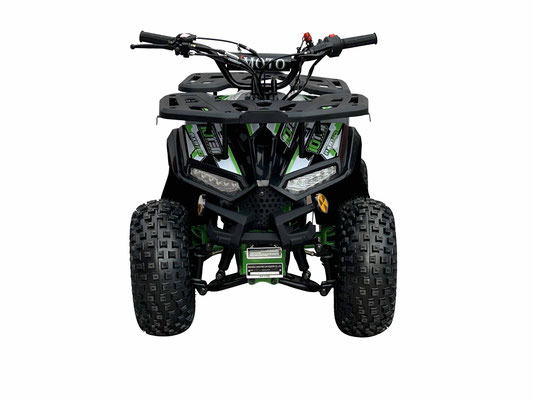

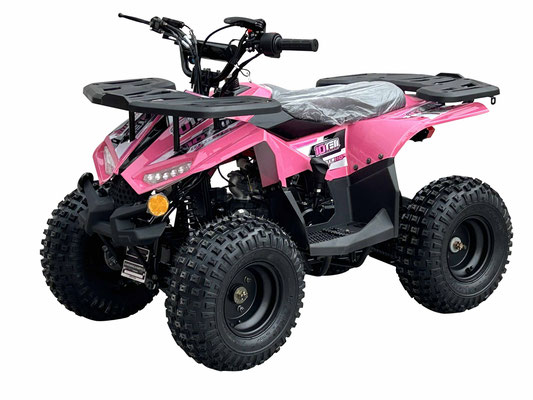

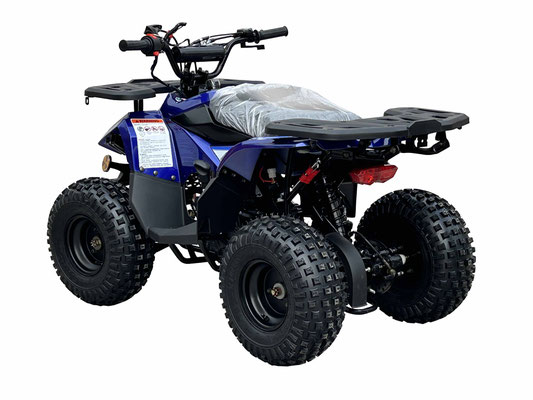

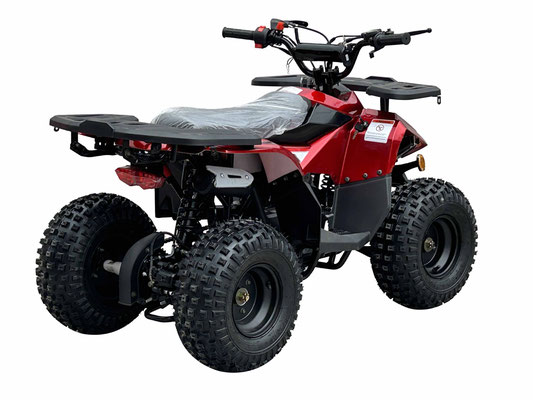

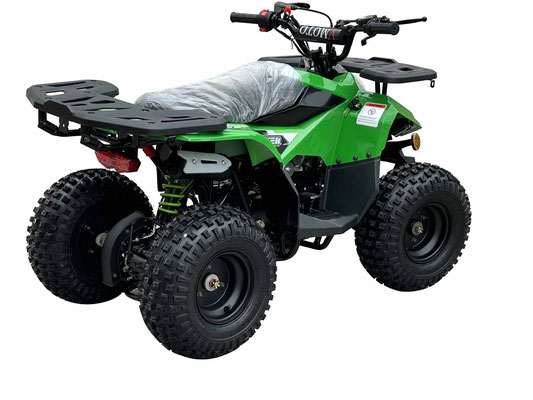

RXR 110cc
SPECIFICATIONS:
| Model | CY110ATV-9 |
| Engine Type | 107CC, 4-stroke |
| Cooling mode | air cooled |
| Cylinders | Single cylinder |
| Bore×Stroke | φ52.4×49.5mm |
| Max Torque | 6.9Nm/(6500r±500r)/min |
| Max Power | 4.8KW/(8000r±500r)/min |
| Lgnition | CDI |
| Starting System | Electric |
| Battery | 12V, 5Ah |
| Clutch | Automatic with reverse |
| Transimission | Chain, rear wheel drive |
| Brakes Front/Rear | Drum/hydraulic disc |
| Tires Front/Rear | 16X8-7/16X8-7 |
| Fuel Capacity | 2.2L plastic tank |
| Weight | G.W./N.W.(216kgs/158kgs) |
| Wheelbase | 960mm |
| Dimensions | 1340X930X900mm |
| Height to Seat | 600mm |
| Loading Quantity | 135pcs/40´HQ |
| EPA with carb | |
| Y6 |
AGE REQUIREMENT: (Y6) 6 years old and up
