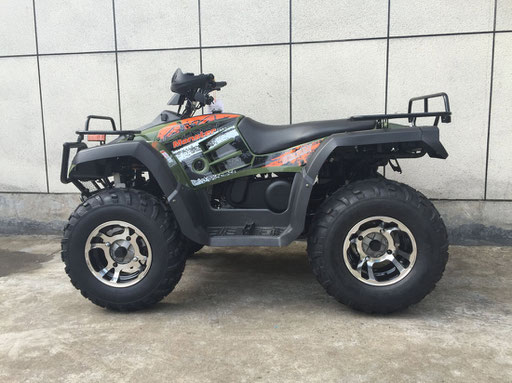

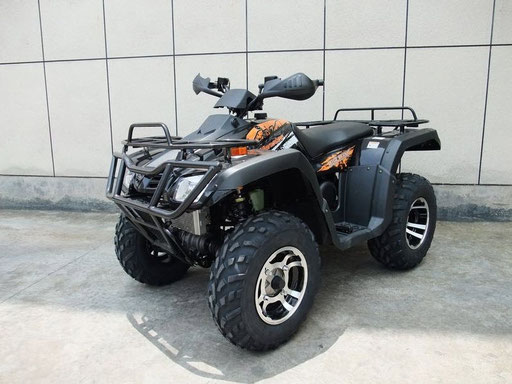

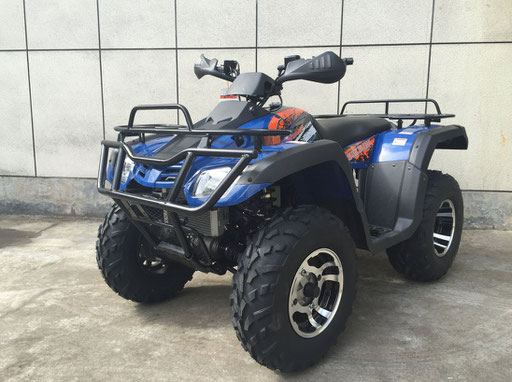

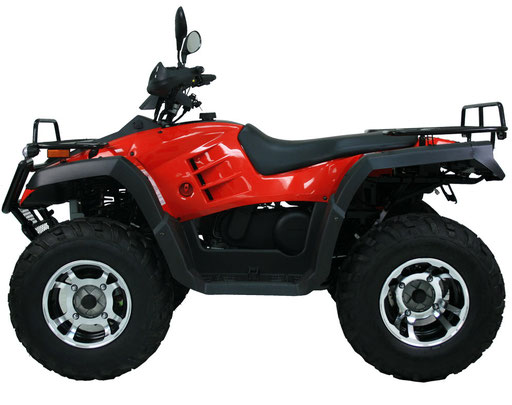

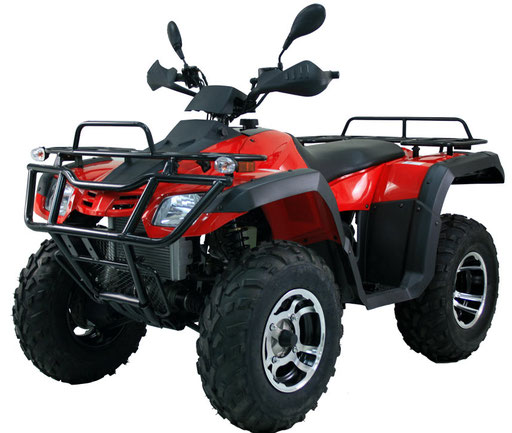

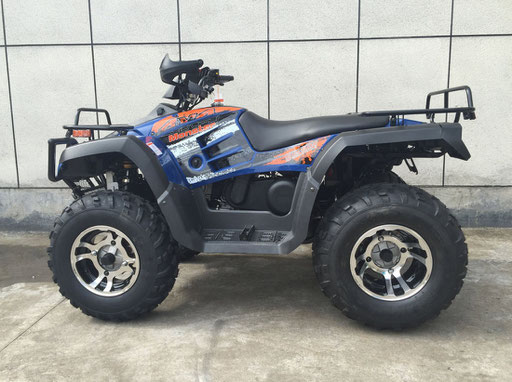

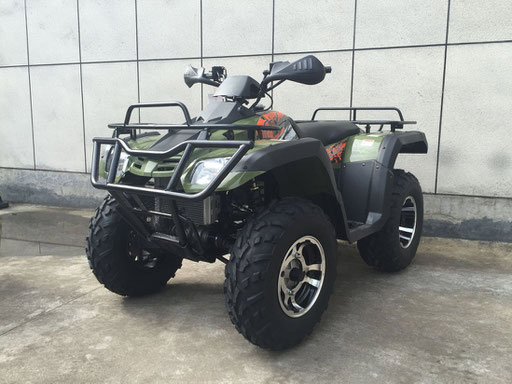

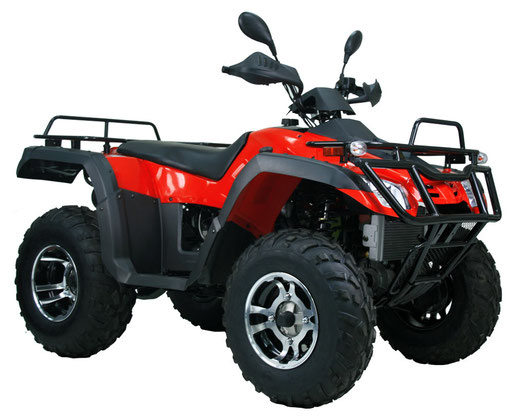

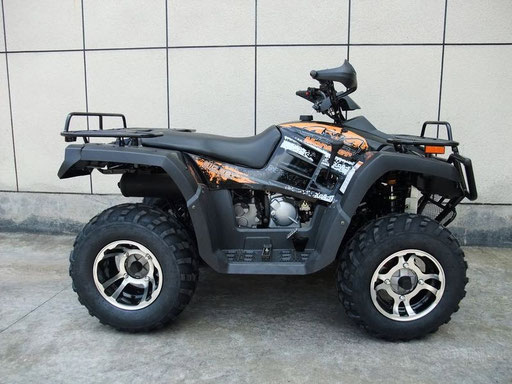

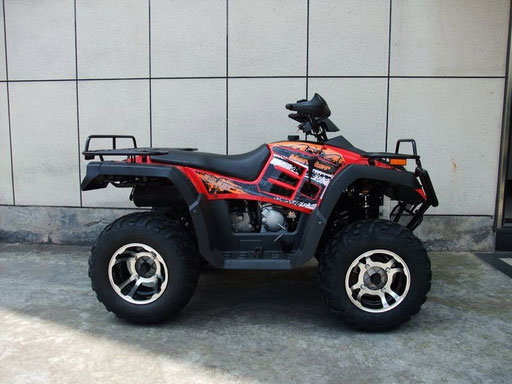

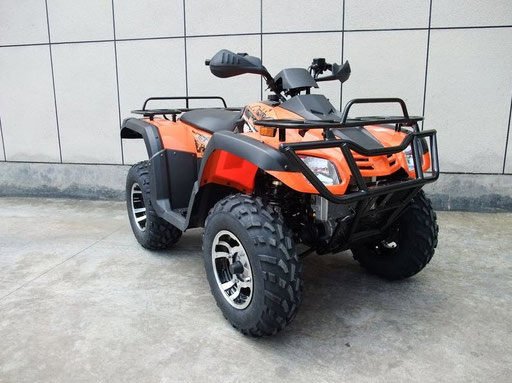

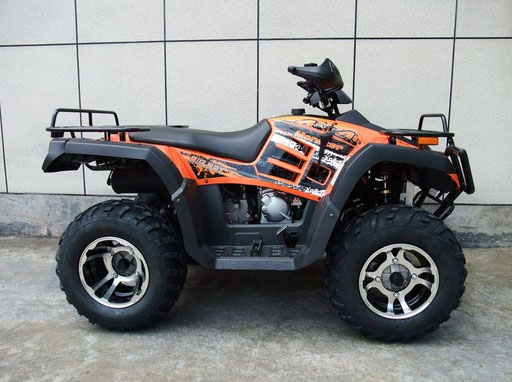

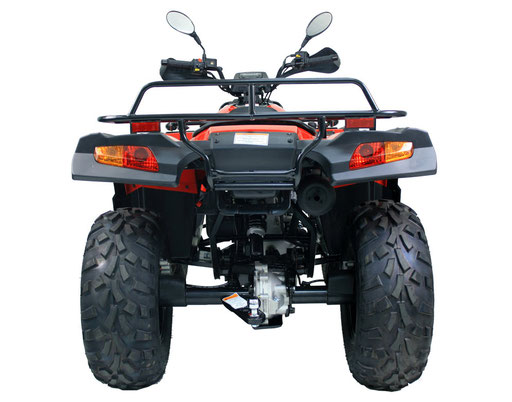

MONSTER 300 (4WD)


ITEM NO. SPECIFICATION

Monster 300 (4WD)

ENGINE TYPE

4 Stroke, Water Cooled

MAX.POWER(KW/rpm)

14KW/7000rpm

MAX.TORQUE(NM/rpm)

20N.M/5500rpm

MAX.SPEED

40 MPH

CYLINDER NO.

Single Cylinder

BORE STROKE

72.5mm × 66.8mm

DISPLACEMENT

276cm

COMPRESSION RATIO

10.3:1

CARBURETOR

CVK052

LUBRICATE

Combined force-feed and splash lubrication

AIR FILTER TYPE

Dry Air Filter Net

SPARK PLUG

DR8EA

STARTING

 Electric Start

IGNITION

C.D.I

STARTING PROCEDURE

Start Electric Lock, Hold brake ,Press Start Switch

GEARSHIFT

Manual

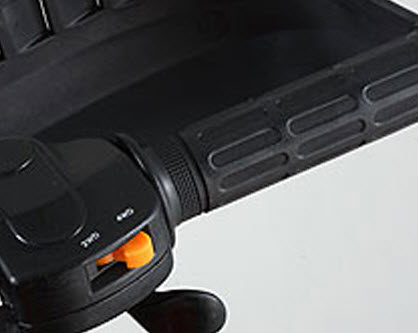

SHIFT SWITCH

Yellow switch between 2W and 4W

TRANSMISSION

Automatic CVT with H/L/N/R

FINAL DRIVE SYSTEM

Shaft/4W

BRAKE FRONT

Hydraulic disc brake

BRAKE REAR

Hydraulic disc brake

PARKING DEVICE

Mechanical brake lock on rear disc

BRAKE DISTANCE

7m/30km/h

FRONT SUSPENSION

Mcpherson front suspension

REAR SUSPENSION

Swing Arm

SHOCK ABSORBER(F)

Double

SHOCK ABSORBER(R)

Single

BATTERY

12V/14AH

ENGINE OIL

1.5L

TRANSMISSION OIL

0.8L

REAR OIL

0.3L

FUEL

90# unleaded gasoline

FUEL CAPACITY

12.5L

TURNING RADIUS

3280mm

MAX.LOAD(kgs/lbs)

156kg

FRONT TIRE

25×8-12

REAR TIRE

25×8-12

WHEEL MATERIAL

Aluminium alloy

OVERALL

2016×1180×1237mm

CARTONE SIZE (L/M/H)

2280×1290×870mm

WHEELBASE(mm)

1271mm

SEAT HEIGHT(mm)

895mm

GROUND CLEARANCE

183mm

NET WEIGHT(kgs/lbs)

275kg

Optional Accessories

winch

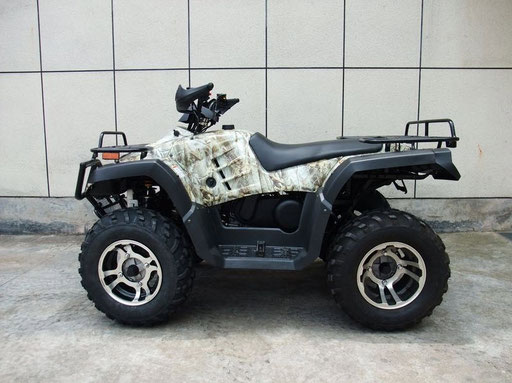

COLOR CODE

Red, Black, Orange, Blue, White Leaf Camo, Green Como







Download
Monster300CC-Parts List
Monster 300 cc-parts-ff.pdf
Adobe Acrobat Document 1.2 MB
