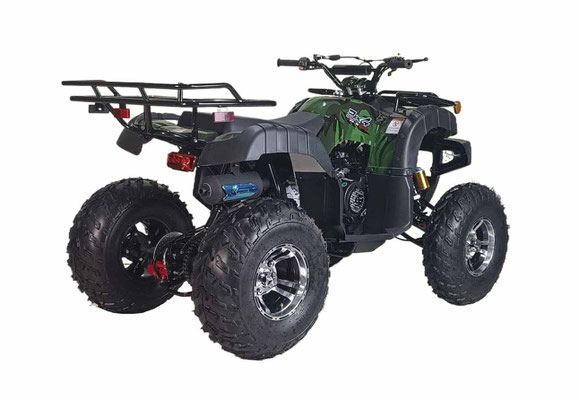

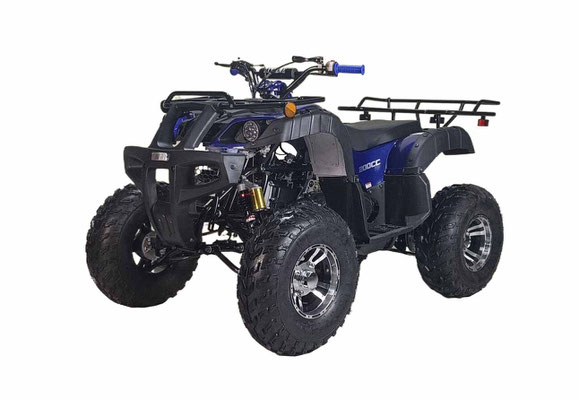

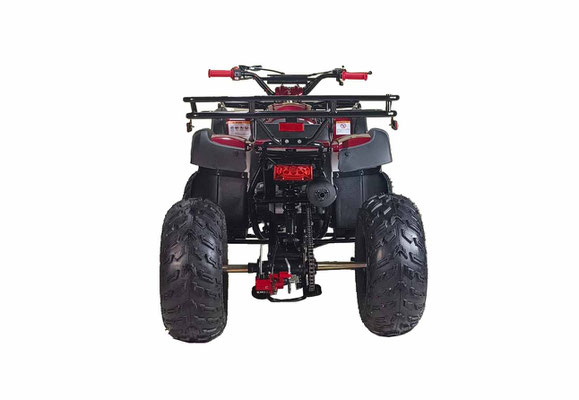

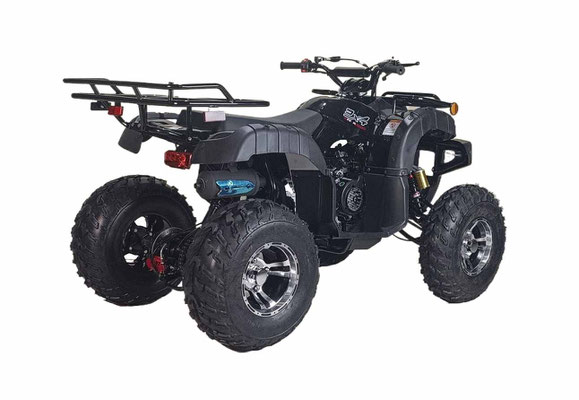

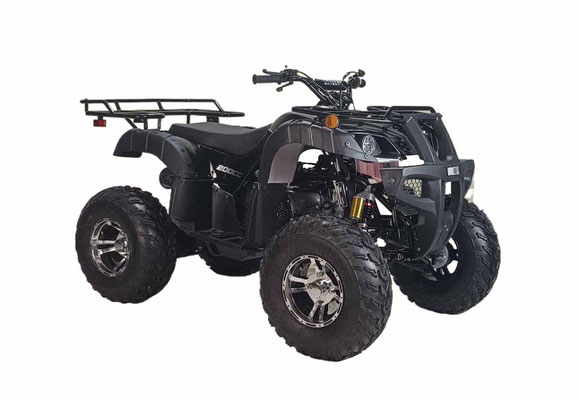

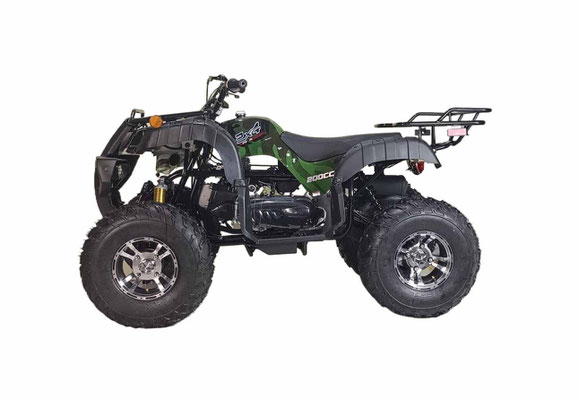

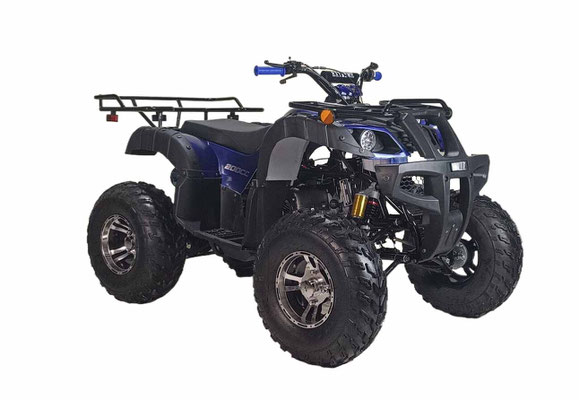

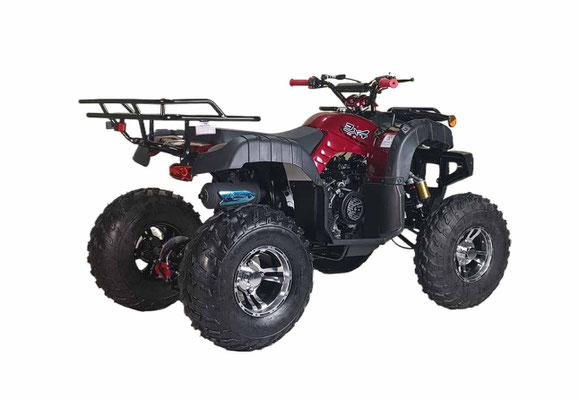

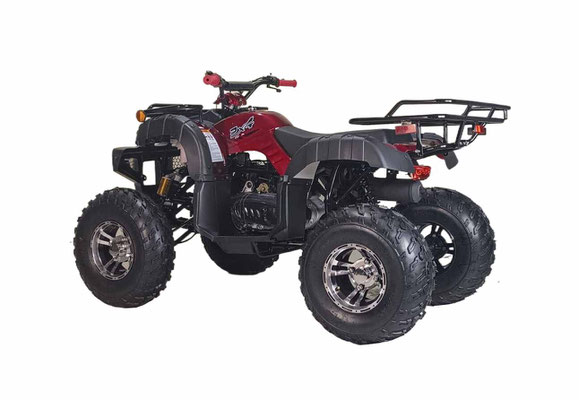

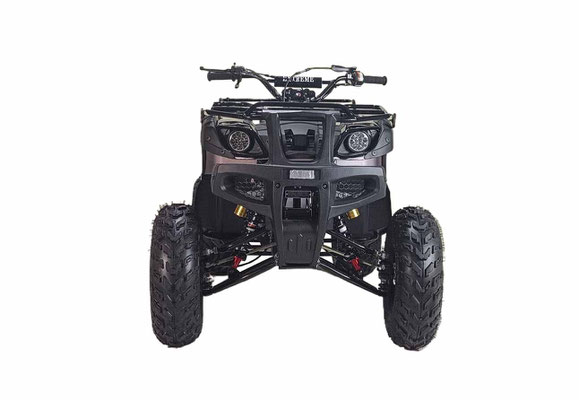

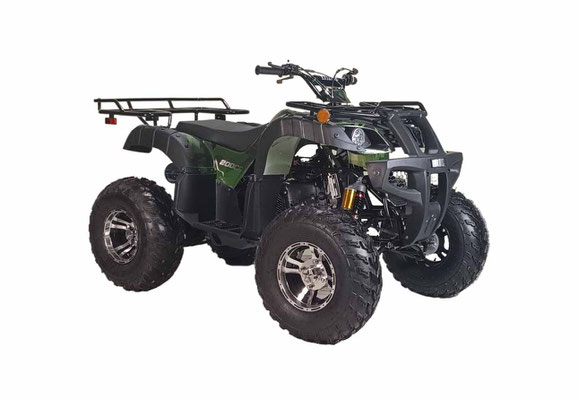

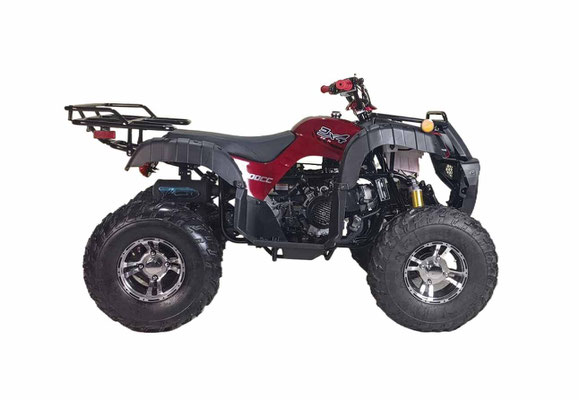

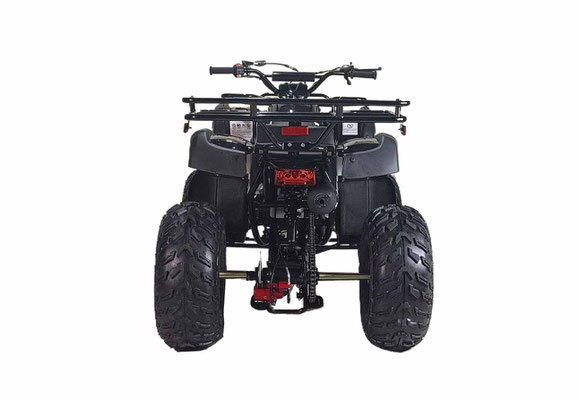

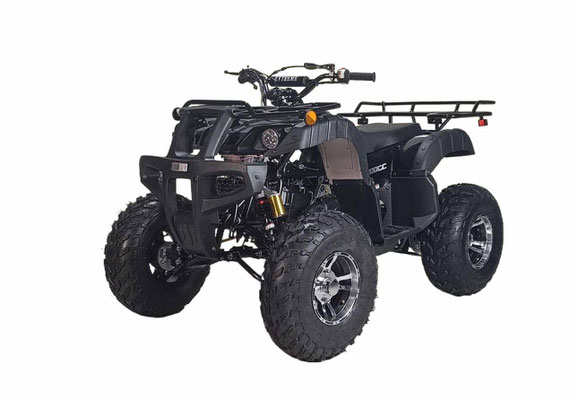

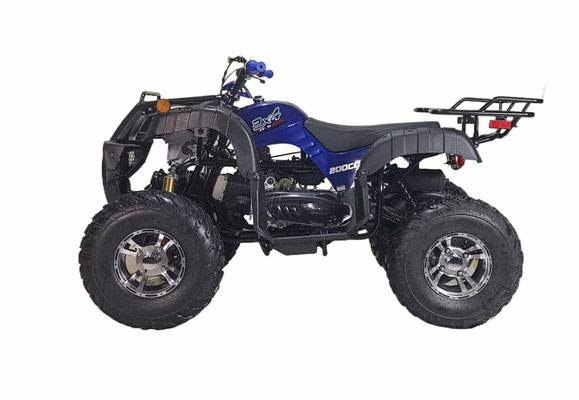

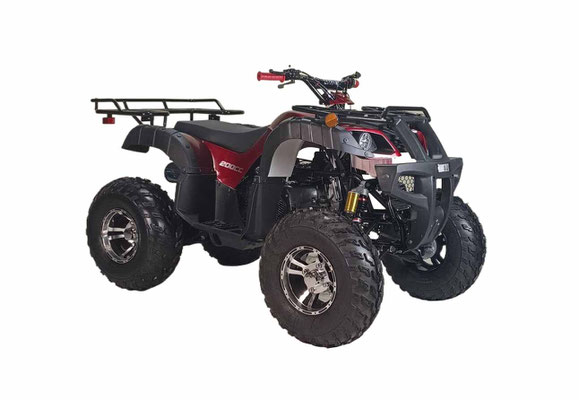

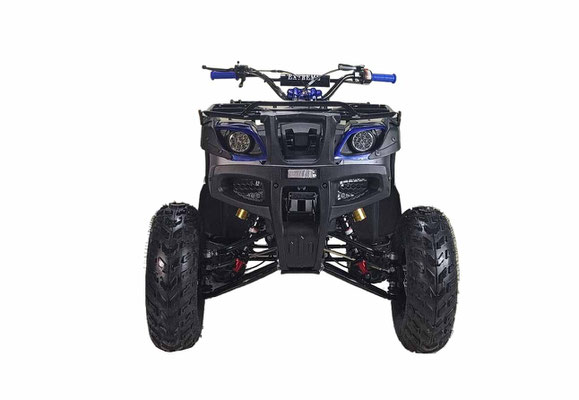

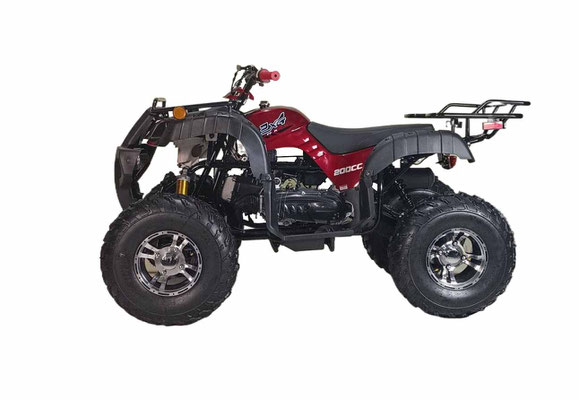

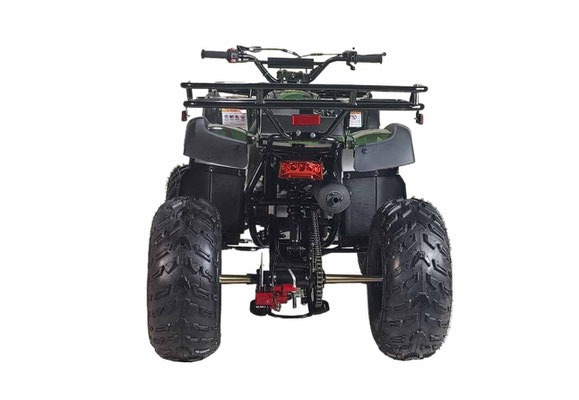

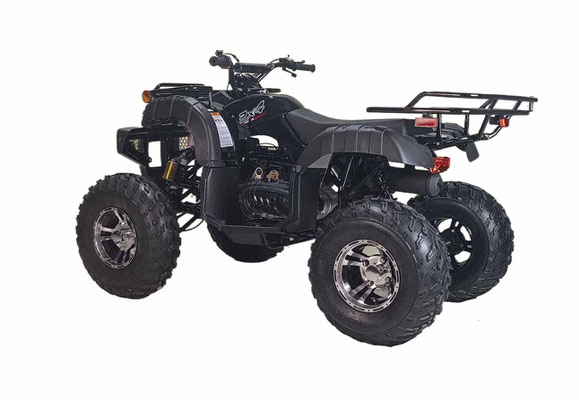

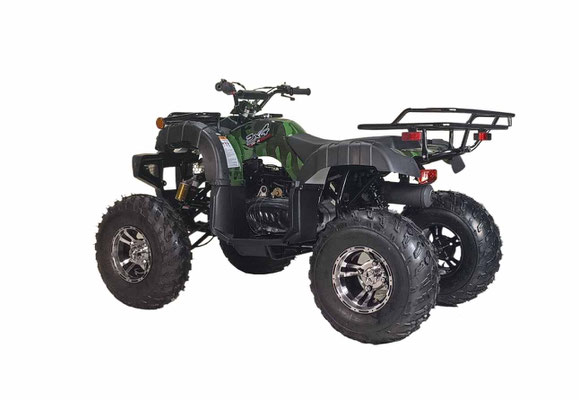

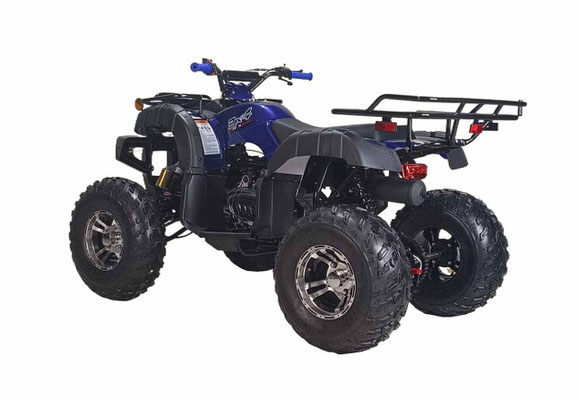

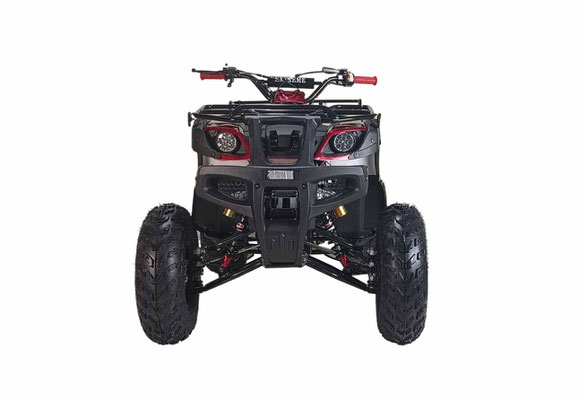

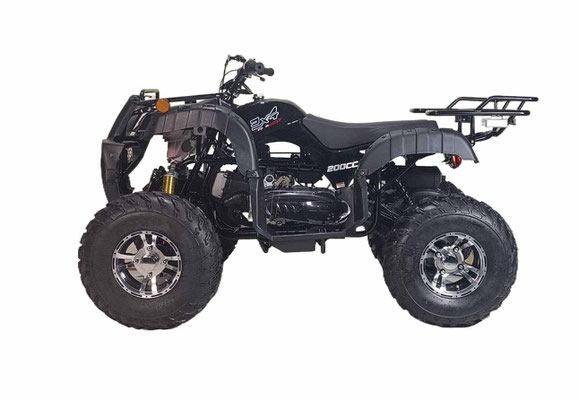

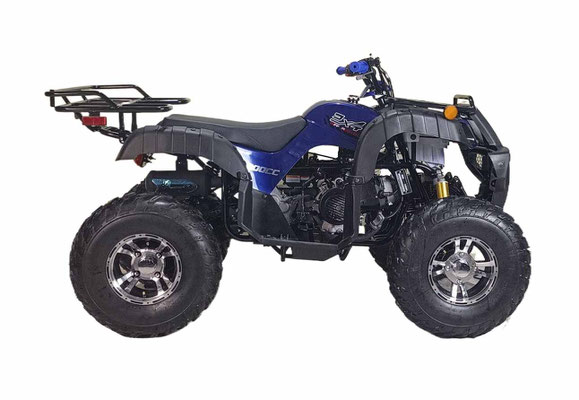

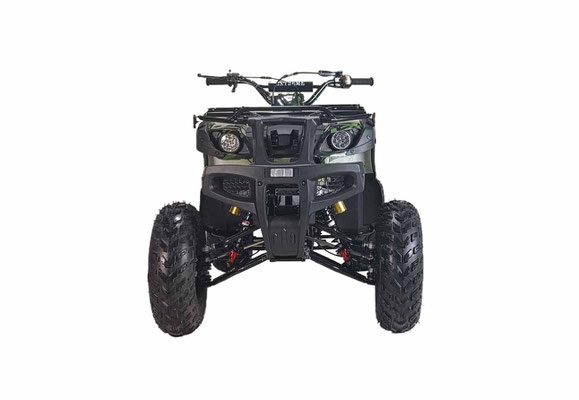

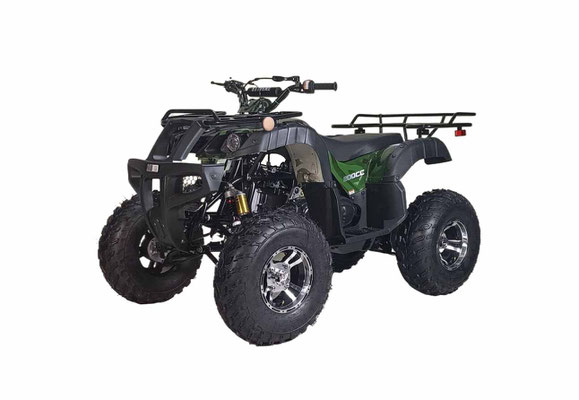

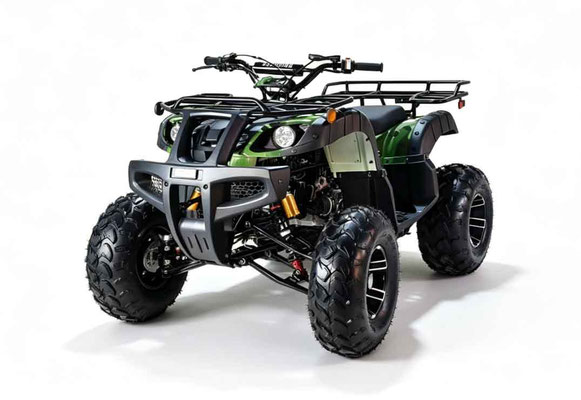

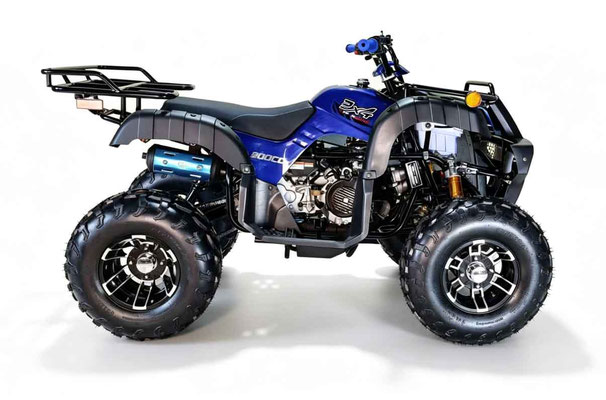

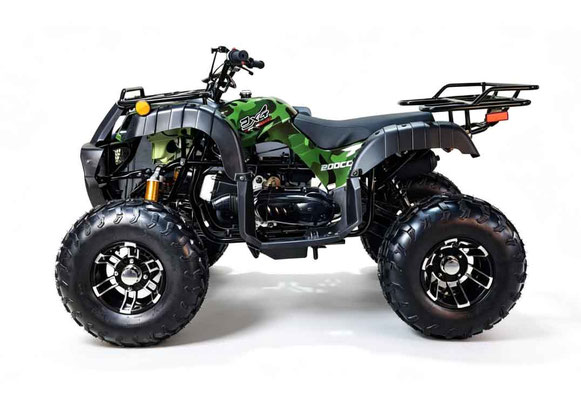

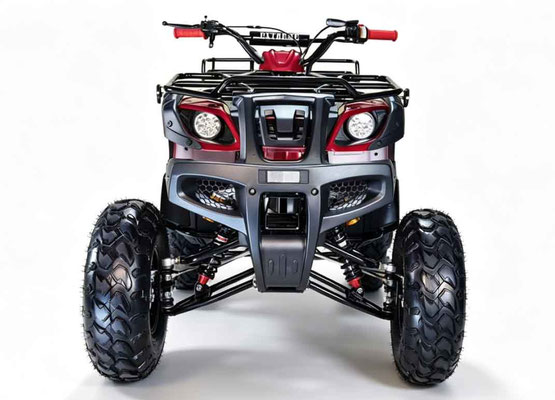

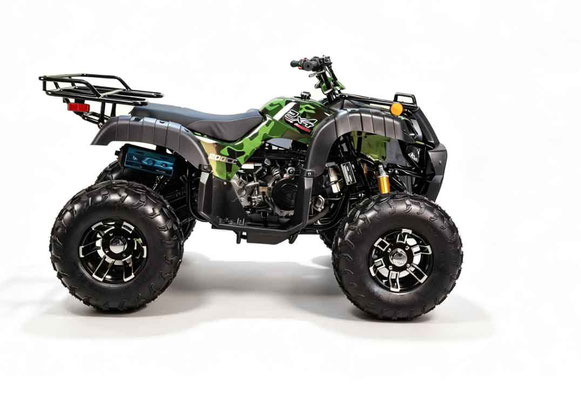

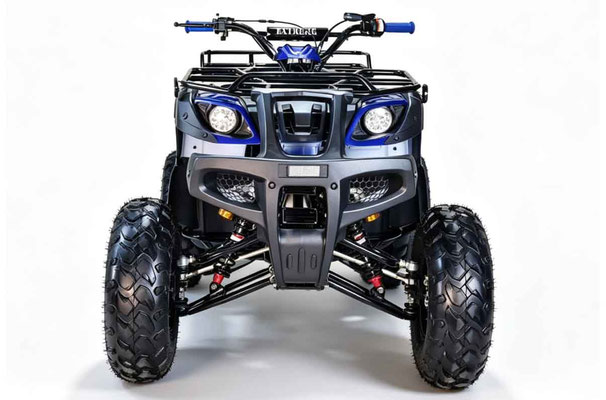

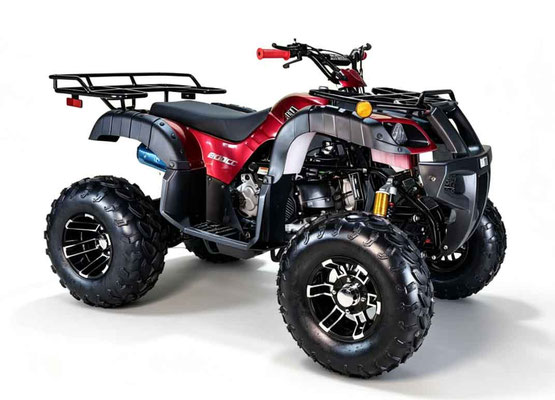

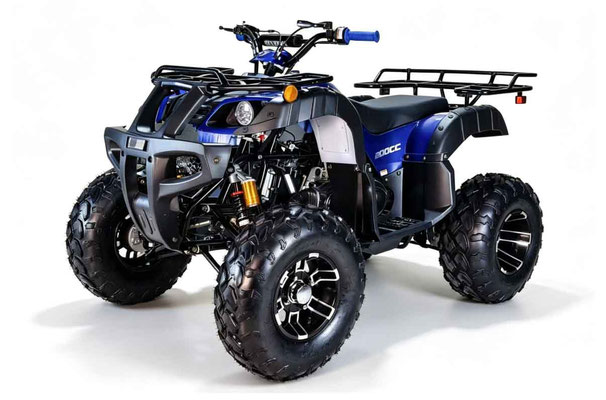

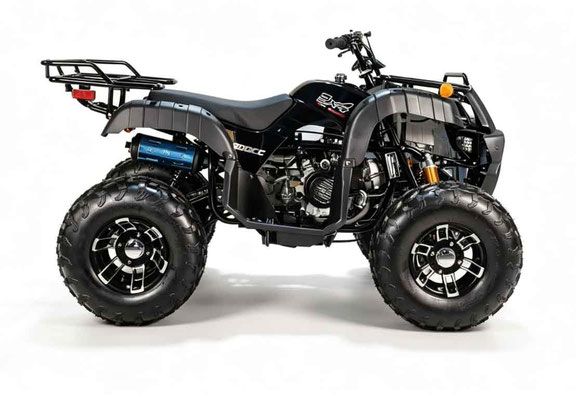

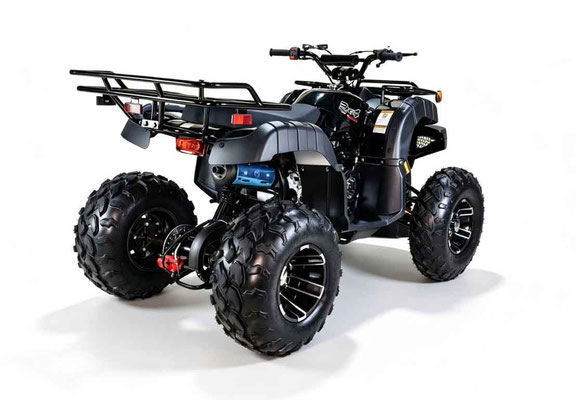

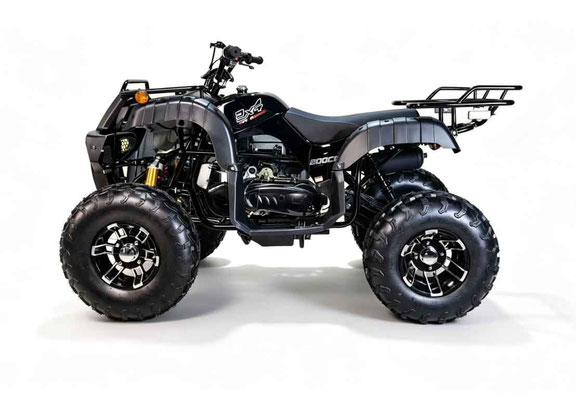

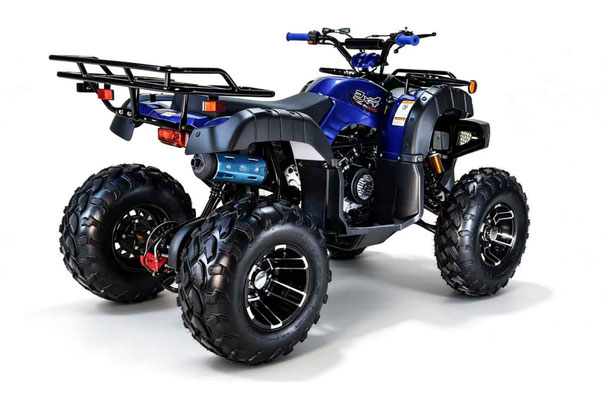

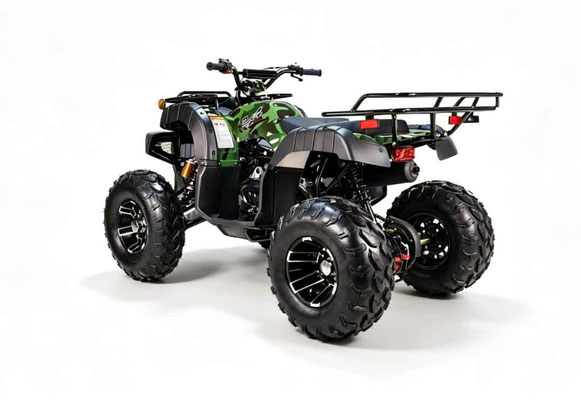

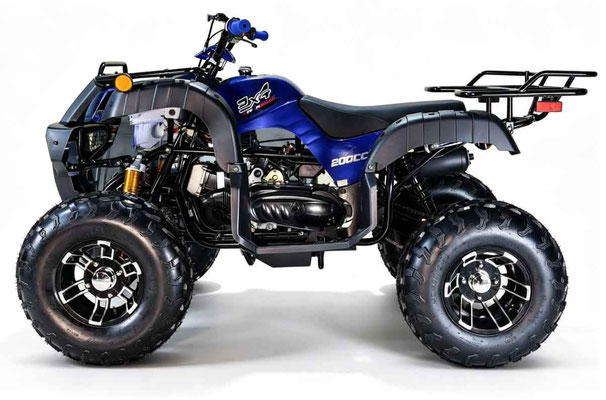

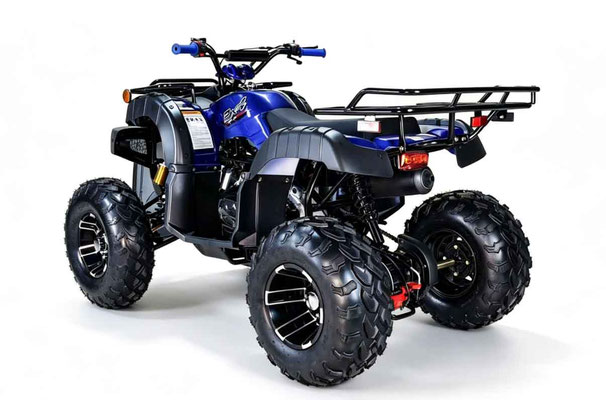

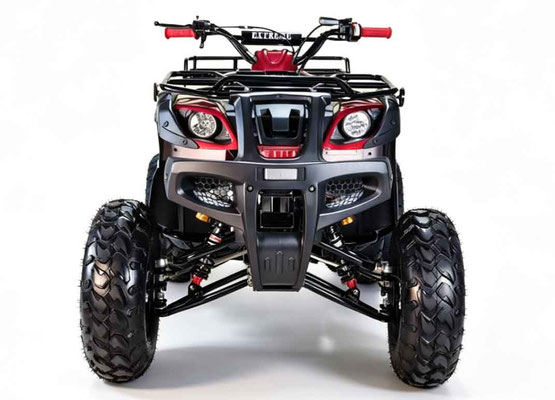

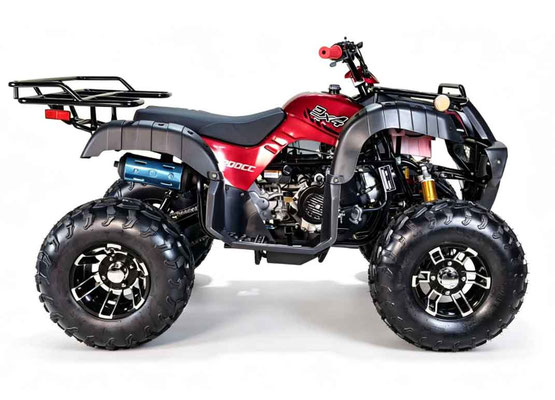

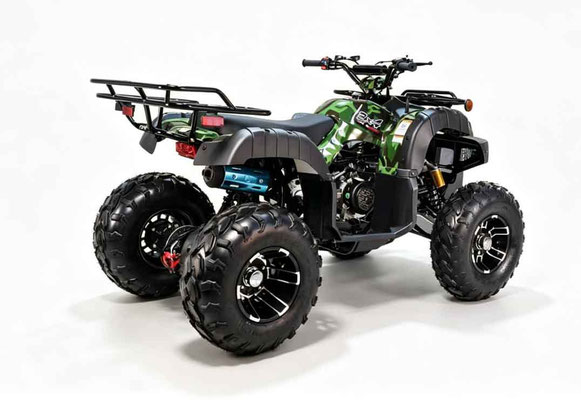

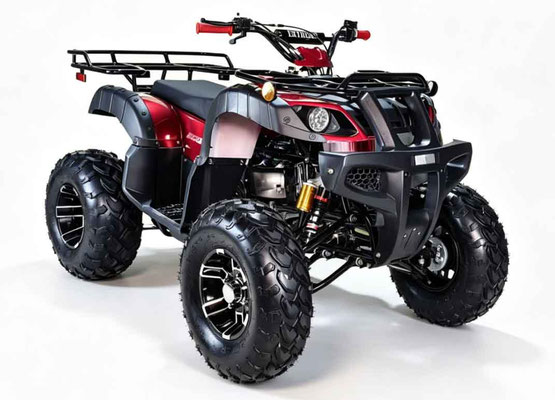

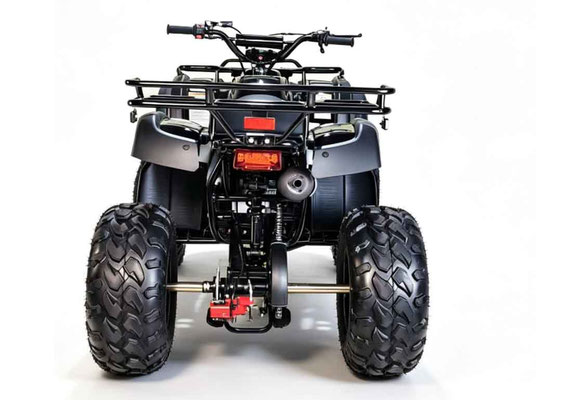

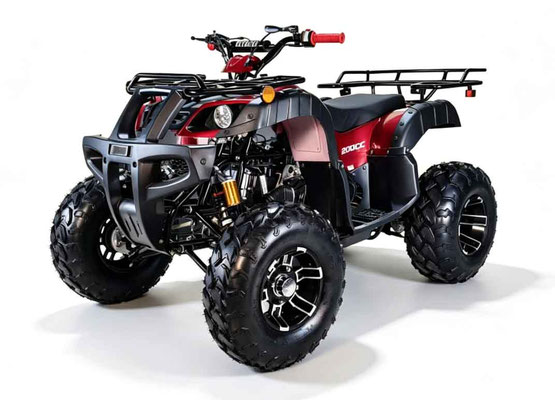

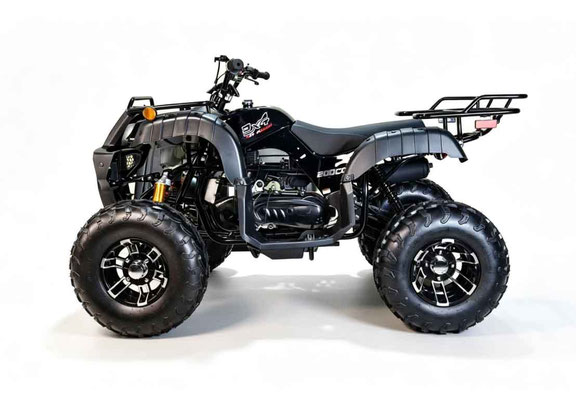

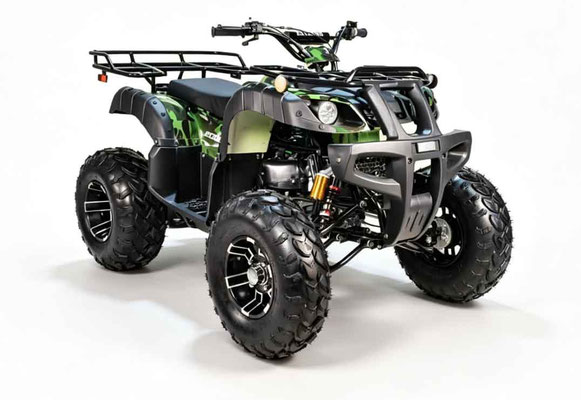

COUGAR UT-200
| ENGINE | |
| Type | 200cc,(Air cooled),4(4-stroke),(1-cylinder) |
| Bore x Stroke | 62.5mmX57.8mm |
| Compression Ratio | 10:01 |
| Carburetor | PD24J |
| Ignition | CDI |
| Starting Time | (Electric start) |
| Transmission | (F-N-R) |
| Drive Train | (Chain Drive) |
| Max. Torque | 10N.m/6500r/min |
| Max. Power | 9.1Kw/7500r/min |
|
CHASSIS |
|
| Suspension/Front | (Independent double swing arm) |
| Suspension/Rear | (Single swing arm) |
| Brakes/Front | (Ventilated Hydraulic disc) |
| Brakes/Rear | (Ventilated Hydraulic disc) |
| Tires/Front | 23 x 7-10(23x 7-10 radial) |
| Tires/Rear | 22x 10-10(22x10-10radial) |
|
DIMENSIONS |
|
| L x W x H | 1700mmX1040mmX1100mm |
| Seat Height | 810mm |
| Wheelbase | 1115mm |
| Ground Clearance | 135mm |
| Battery | 12V/9Ah |
| Fuel Capacity | 4.2L |
| Dry Weight | 164KG |
| Max. Load | 150KG |
| Package Size | 1420mmX840mmX870mm |
| Loading Quantity | 63/40 (63pcs/40HQ) |
| MAIN PERFORMANCE | |
| Max. Speed | 65km/h |
| Fuel Consumption | 3.3L/100Km |
| Starting Time | ≤15s |
| Brake distance | 30km/h≤7m |
