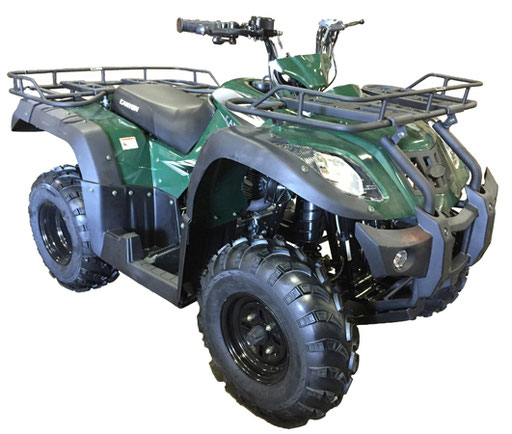

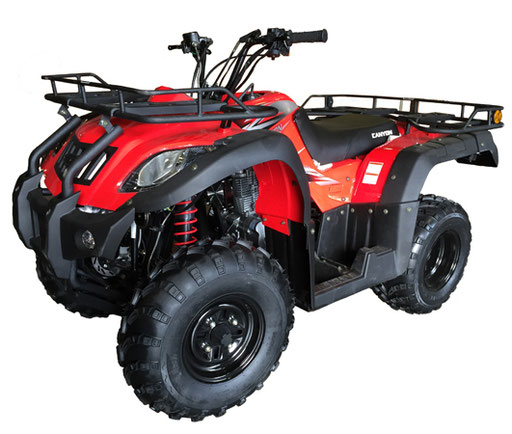

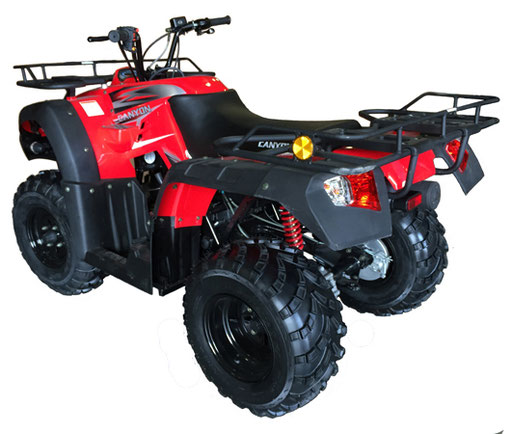

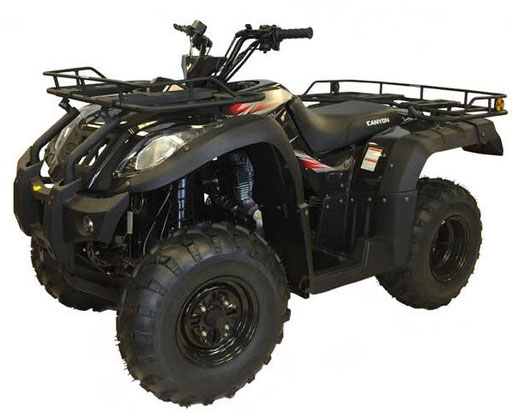

CANYON 250CC

Specification

• 230cc four-stroke engine w/electric start
• 30mph max speed, w/hydraulic brakes
• 5-speed plus neutral/reverse
• Semi-automatic pedal clutch transmission, w/shaft drive
• 23” inch tires, w/ 10” width and 8.5” clearance
• Durable structure, with 600lb towing capacity (hitch+winch)
• Displacement:  229cc
• Dimension:  76.0 x 40.2 x 46.1 in

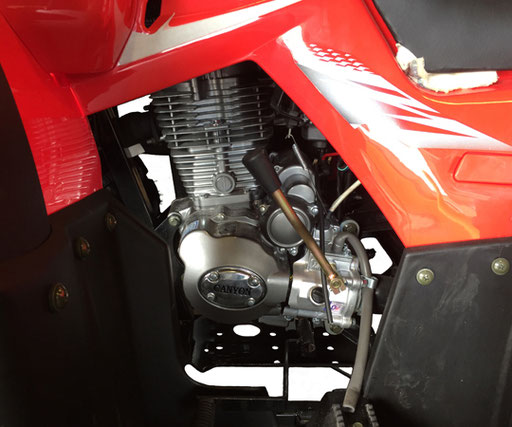

• Engine Type:  Single Cylinder 4 Stroke
• Seat Height:  32.3 in
• Cooling Method:  Air Cool
• Wheel Base:  45.3 in
• Bore & Stroke (in):  2.64 x 2.56
• Min. Ground Clearance:  8.66 in
• Compression Rate:  9.2 : 1
• Max. Load:  353 lb
• Rated Power (HP/RPM):  13.7/7000
• Ride Capacity:  1 person
• Rated Torque (N.W/rpm):  15.5/5500
• Curb Mass:  540 lb
• Max. Speed (MPH):  46.6
• Engine Oil Capacity:  0.3 gal
• Lubrication:  Pressure Splash
• Fuel Tank Capacity:  3.17 gal
• Clutch Type  CVT
• Ignition:  CDI
• Starting System:  Electric Start
• Transmission:  4Speed+N w/Reverse

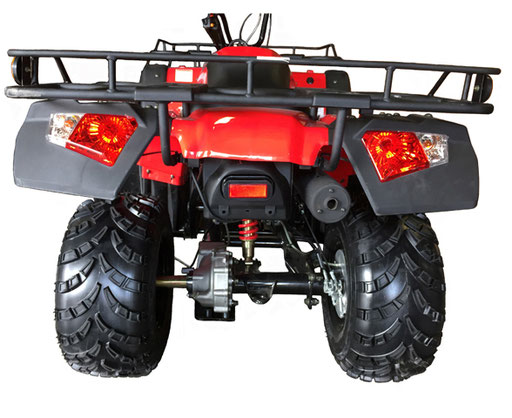

• Drive System:  Shaft Drive
• Chassis
• Front Brake:  Hydraulic Disk Brake
• Rear Brake:  Drum Brake
• Front Tire:  23x7-10
• Rear Tire:  22x10-10
• Rim Material:  Steel
• Battery:  12V/14Ah
