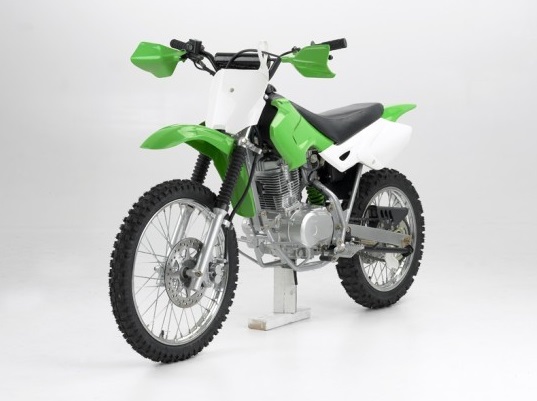

DB-Viper 150 cc DIRT BIKE

SPECIFICATIONS







ENGINE INFO:                DB-Viper 150cc







Engine Type:             149cc 4 stroke Displacement, air cooling



Compression Ratio:   9.0:1



Ignition Type:             CDI



Bore and Stroke:       69x53



Number of Cylinder:  1



Transmission:           Manual (5 Gears)



Starter mode:            Kick start



Max Power:              9.5 KW / 8500 rpm



Max Torque:             10.0 N.M / 6500 rpm











CHASSIS/SUSPENSION/BRAKES







Front Suspension:      Double Shocks



Rear Suspension:      Single Shock



Braking system:         Front and Rear Hydraulic disc







Dimensions







Length (mm):                    1930



Width (mm):                      1000



Height(mm):                      1199



Wheel Base:



Dry Weight (kg):                 100



Seat Height (mm):              820



Wheelbase (mm):              1320



Weight Capacity (kg):        120



Ground Clearance (mm):   230







Front and Rear Wheel:



70/9100-19" 90/100-16"



Tank Capacity:



5.7



Engine Oil Capacity (L):     1.0











Catron Dimensions







Length(mm)                1630



Width(mm)                  450



Height(mm)                 770



Packing Weight(kg)     115







Available Color:











Red/Green/Blue/Black
